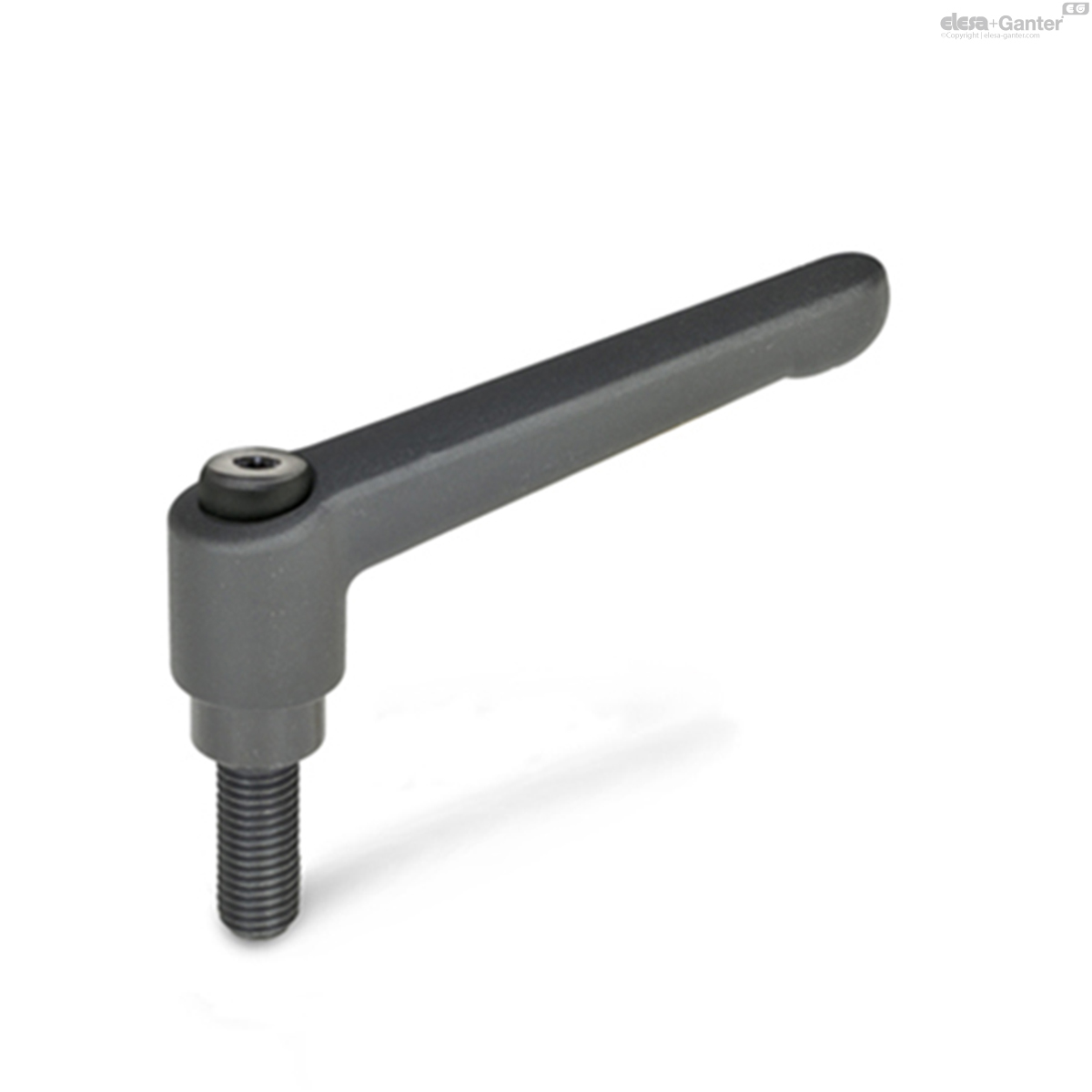

300-78-M8-32-SW GN-300 With external thread

300-78-M8-32-SW

GN-300 With external thread

Zinc Die Casting, Insert Steel, with Internal Thread / Reamed Hole, with External Thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 300

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Handle

Zinc die casting

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Black, RAL 9005, silk finish SZ
  • Orange, RAL 2004, textured finish OS
  • Red, RAL 3000, textured finish RS
  • Silver, RAL 9006, textured finish SR
  • Chrome plated CR
  • Uncoated RH
  • Tumbled

Insert / Retaining screw

Steel, blackened

Property class 5.8 (external thread)

Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
