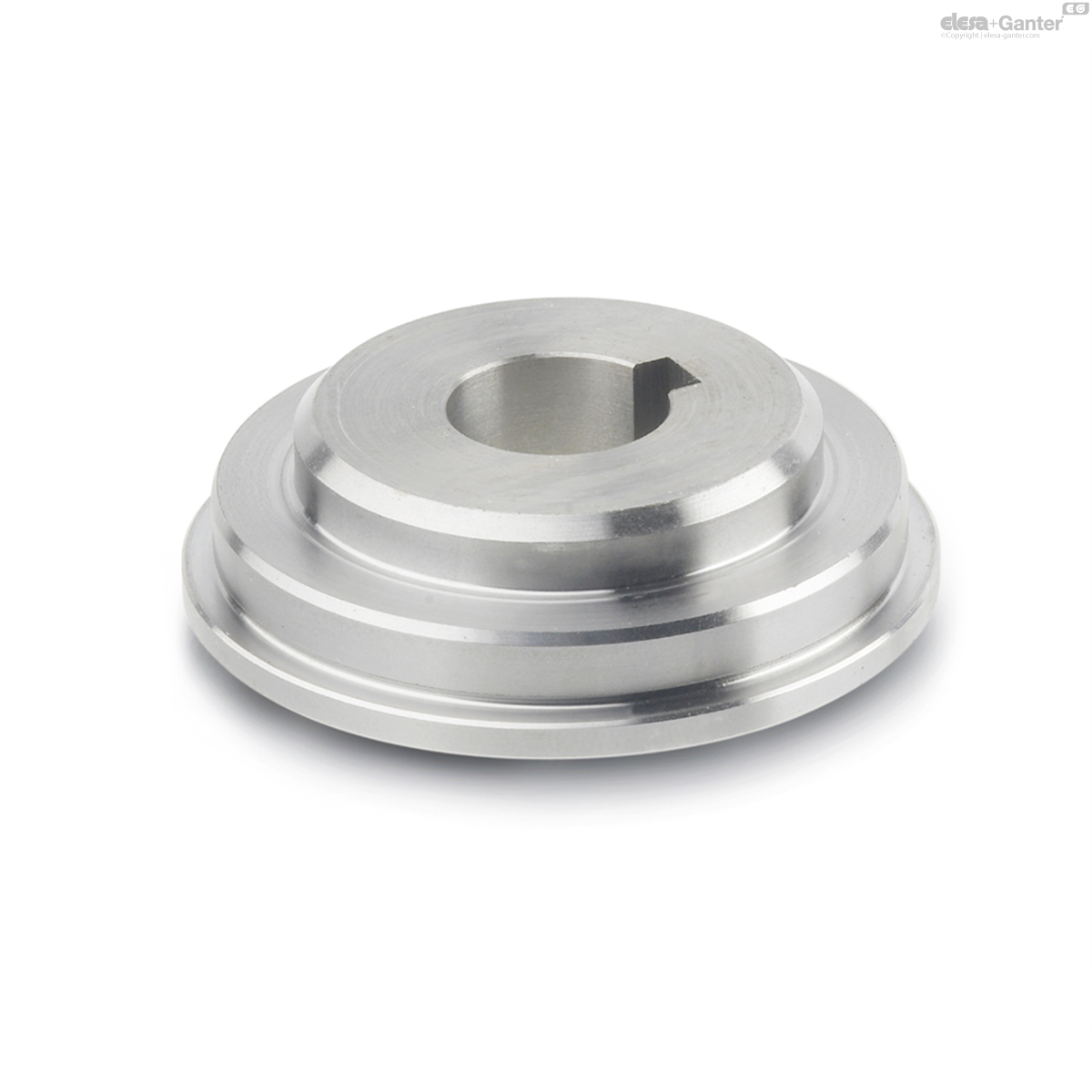

268-50-K16 GN 268 Collar Bushings

268-50-K16

GN 268 Collar Bushings

Steel, Accessories for Scaling Sets
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 268

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 268-50-K16
d1 f7
50
d2 H7
K 16
d3
54.7
d4
38
l1
14.5
l2
5.5
Scaling set consists of:
2 Collar bushes GN 268
1 Scale ring
GN 264-60
Scaling set consists of:
2 Collar bushes GN 268
3 Flat springs
GN 374-0.6-10
169
268-50-K16 drawing
