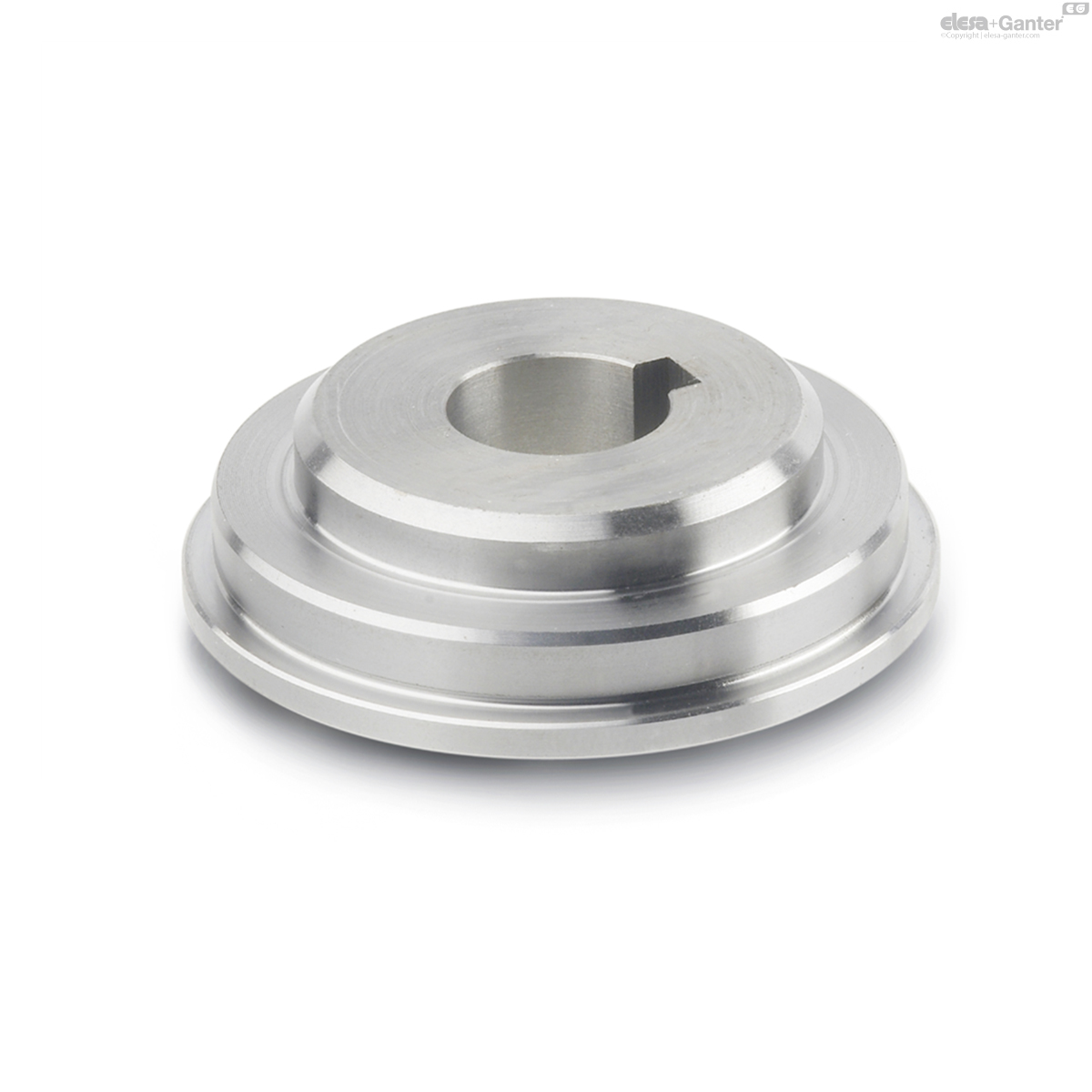

268-24-K12 GN 268 Collar Bushings

268-24-K12

GN 268 Collar Bushings

Steel, Accessories for Scaling Sets
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 268

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 268-24-K12
d1 f7
24
d2 H7
K 12
d3
26.7
d4
18
l1
13.5
l2
5.5
Scaling set consists of:
2 Collar bushes GN 268
1 Scale ring
GN 264-30
Scaling set consists of:
2 Collar bushes GN 268
3 Flat springs
GN 374-0.3-10
28
268-24-K12 drawing
