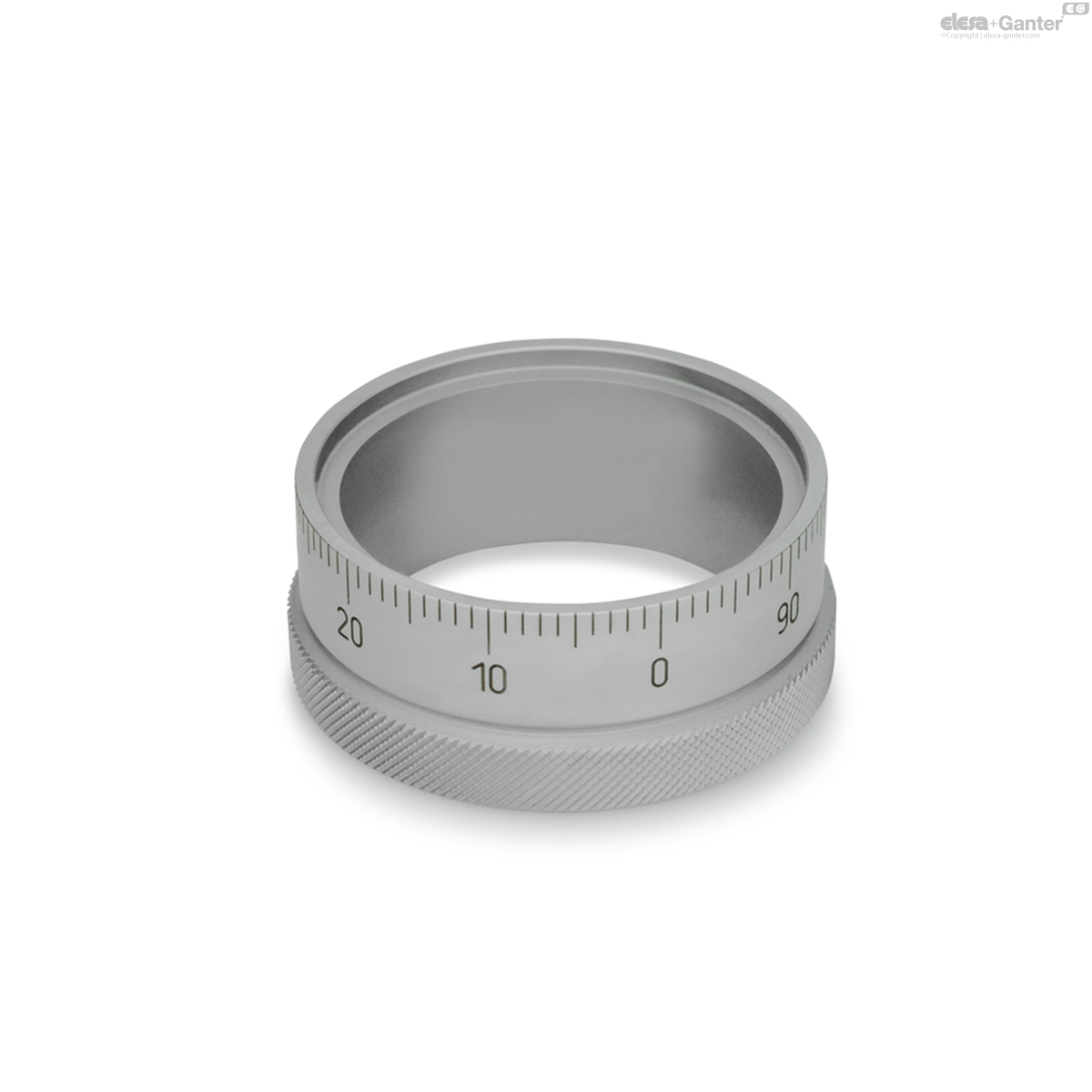

264-40 MCRS GN 264 Scale Rings

264-40 MCRS

GN 264 Scale Rings

Steel, Matte Chrome Plated, Accessories for Scaling Sets
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 264

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 264-40-MCRS
d1
40
d2
36
d3 H7
32
d4
43
l1
16
l2
23.7
Scaling set consists of:
1 Scale ring
2 Collar bushes
GN 268-32-K...
Scaling set consists of:
1 Scale ring
3 Flat springs
GN 374-0.4-10
86

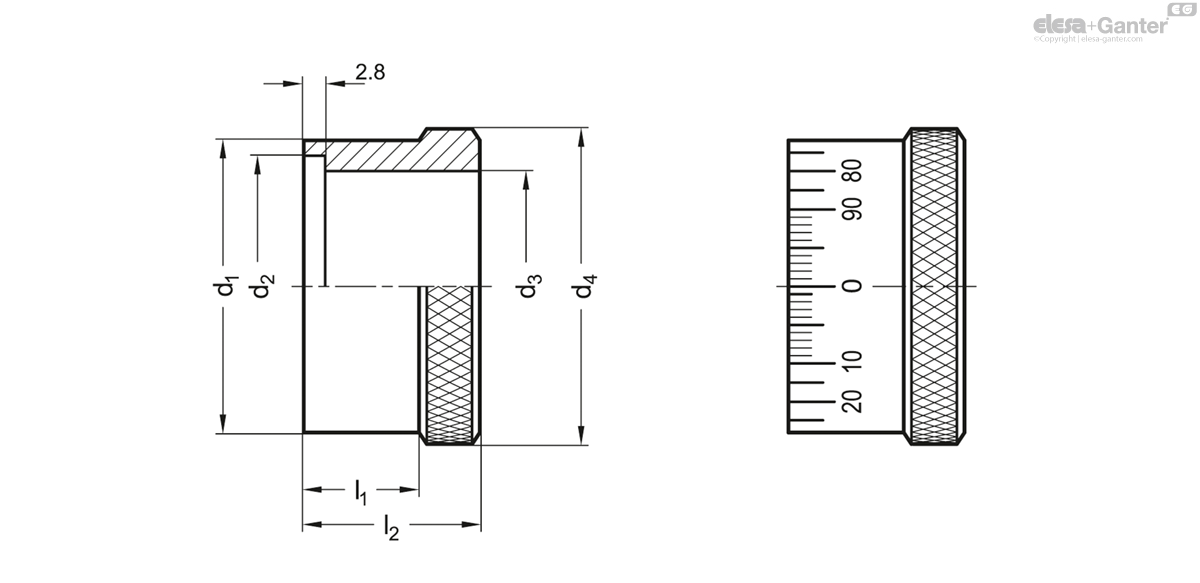

264-40 MCRS drawing

Types

  • Type MCR: Matte chrome plated
  • Type MCRS: Matte chrome plated, standard scale 0...90, 100 graduations, acc. scale scheme d1/100 A RA 0-10-20...90/10

Steel

  • Scale lug d1 fine turned
  • Matte chrome plated without scale MCR
  • Matte chrome plated with standard scale MCRS
  • Scale laser-engraved, black discharged

Scale rings GN 264 can be supplied with any type of scale. The ordering scheme for scales must be used for the line pattern, number steps, number position and number sequence of any scaling.
