EBP.140-8-FLX-C2
EBP.FLX Flexible bridge handles
Eta: 1-2 weeks All sizes and variants of EBP.FLX
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

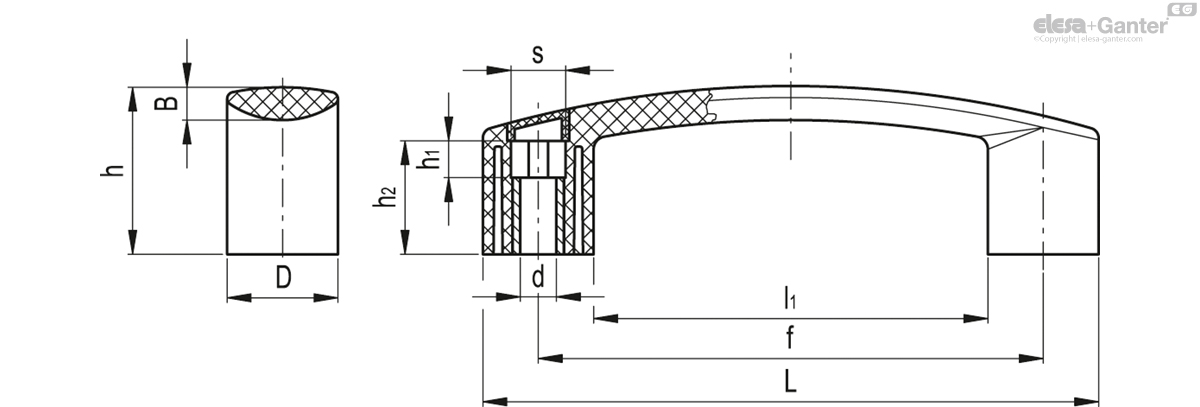

Technical data
- Catalogue
- 260262-C2
- L
- 144
- f
- 117
- d
- 8.5
- d1
- 13.5
- s
- 13
- D
- 26.5
- h
- 39
- h1
- 8.5
- h2
- 26.5
- B
- 8.5
- l1
- 91
- F1
[N] - 1000
- F2
[N] - 1000
- 55
Material
Polypropylene based (PP) technopolymer with elastomer (TPE), greyblack colour, matte finish.
Screw-covers
- ECA.B: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table).
Standard execution
Brass bosses with pass-through holes for cylindrical-head screws with hexagon socket.
Features and applications

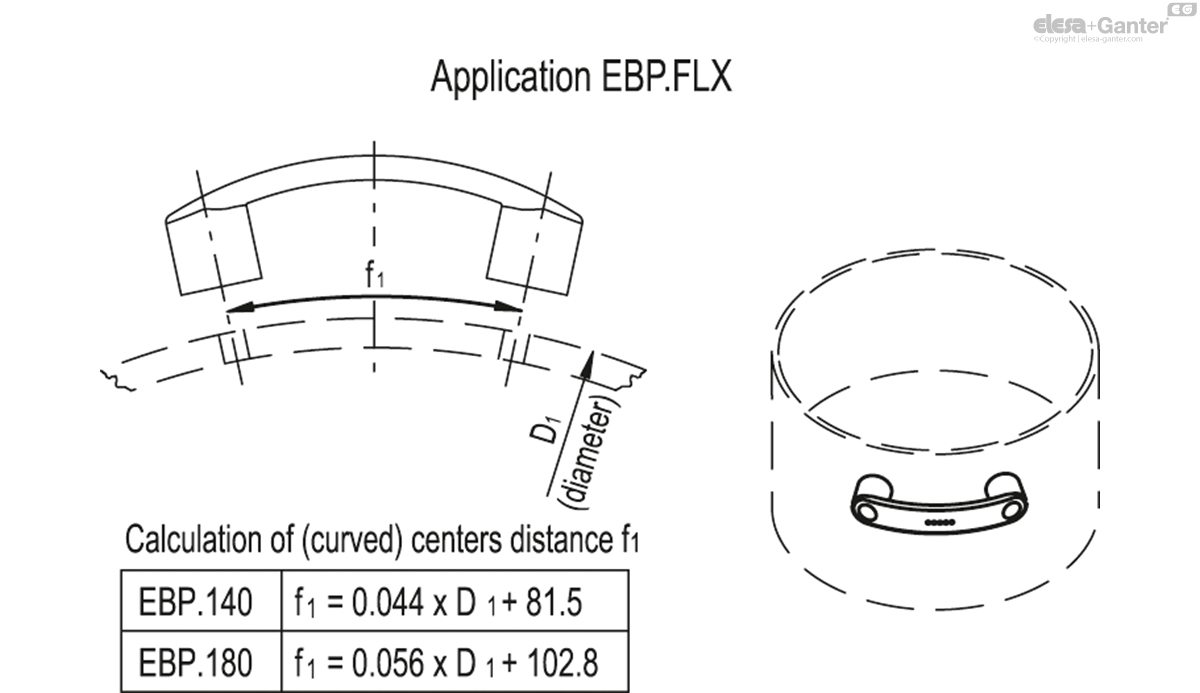

EBP.FLX flexible handle (elastomer) can be assembled on curved surfaces with diameters between 300 and 800 mm. For diameters exceeding 800 mm, EBP. standard handle can be used.
Technical data

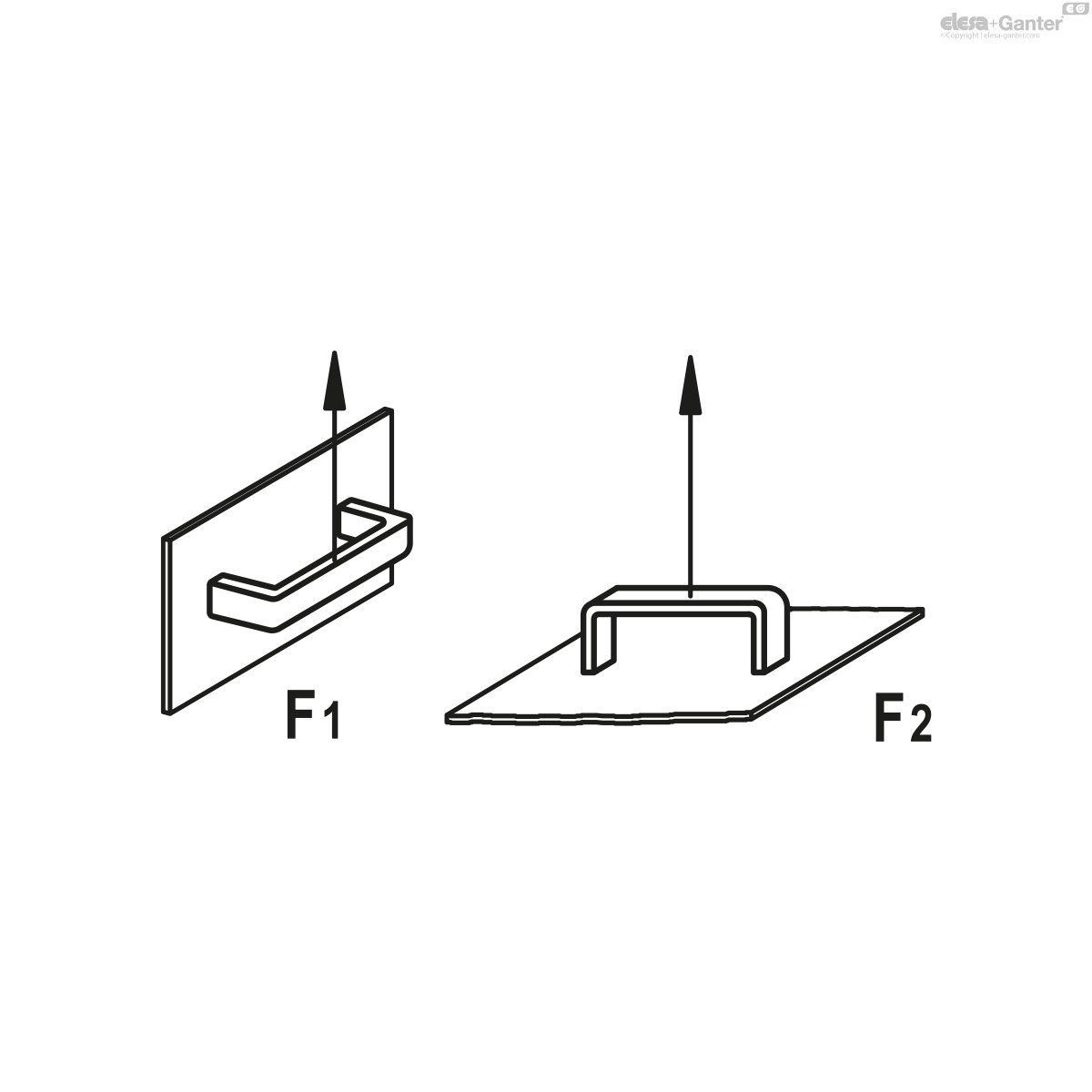

Tensile stress: F1 and F2 values reported in the table represent the maximum limit value under which EBP.FLX handle can perform elastic deformation. Impact strength does not apply in this case due to the high elastic features of the product.
Accessories on request
- ECA.B: glass-fibre reinforced polyamide based (PA) technopolymer screw-covers, in Elecolors colours, matte finish, press-fit assembly (see table).
