240-M6-A GN 240 Quick-fit couplings

240-M6-A

GN 240 Quick-fit couplings

with Radial Off-Set Compensation
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 240

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 240-M6-A
d
M6
l5 +1.0
9
x
0.6
e1
21
l1 ≈
37.5
l2
18
l3 min.
11
l4
14
A/F 1
19
A/F 2
10
x Max. radial off-set
0.6
Max. pull-/push
load in kN
2.5
50

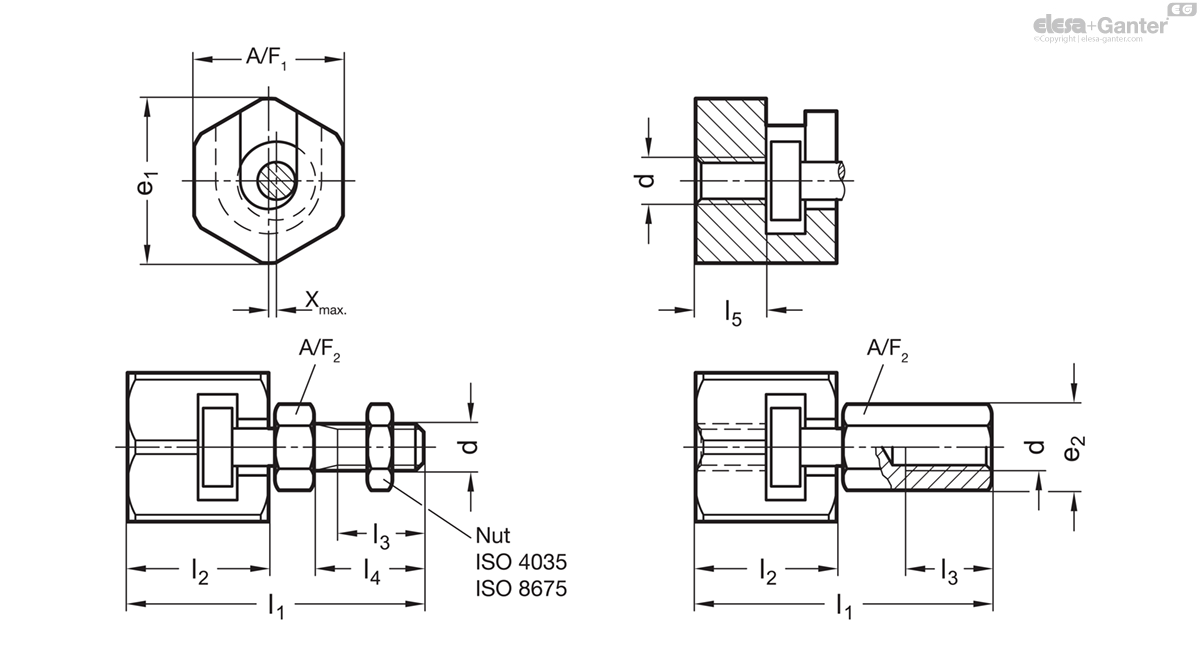

240-M6-A drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
