240-M12-B GN 240 Quick-fit couplings

240-M12-B

GN 240 Quick-fit couplings

with Radial Off-Set Compensation
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 240

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 240-M12-B
d
M12
l5 +1.0
17
x
0.8
e1
32.5
e2 ≈
21
l1 ≈
66.5
l2
34
l3 min.
21
A/F 1
30
A/F 2
19
x Max. radial off-set
0.8
Max. pull-/push
load in kN
10
220
240-M12-B drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

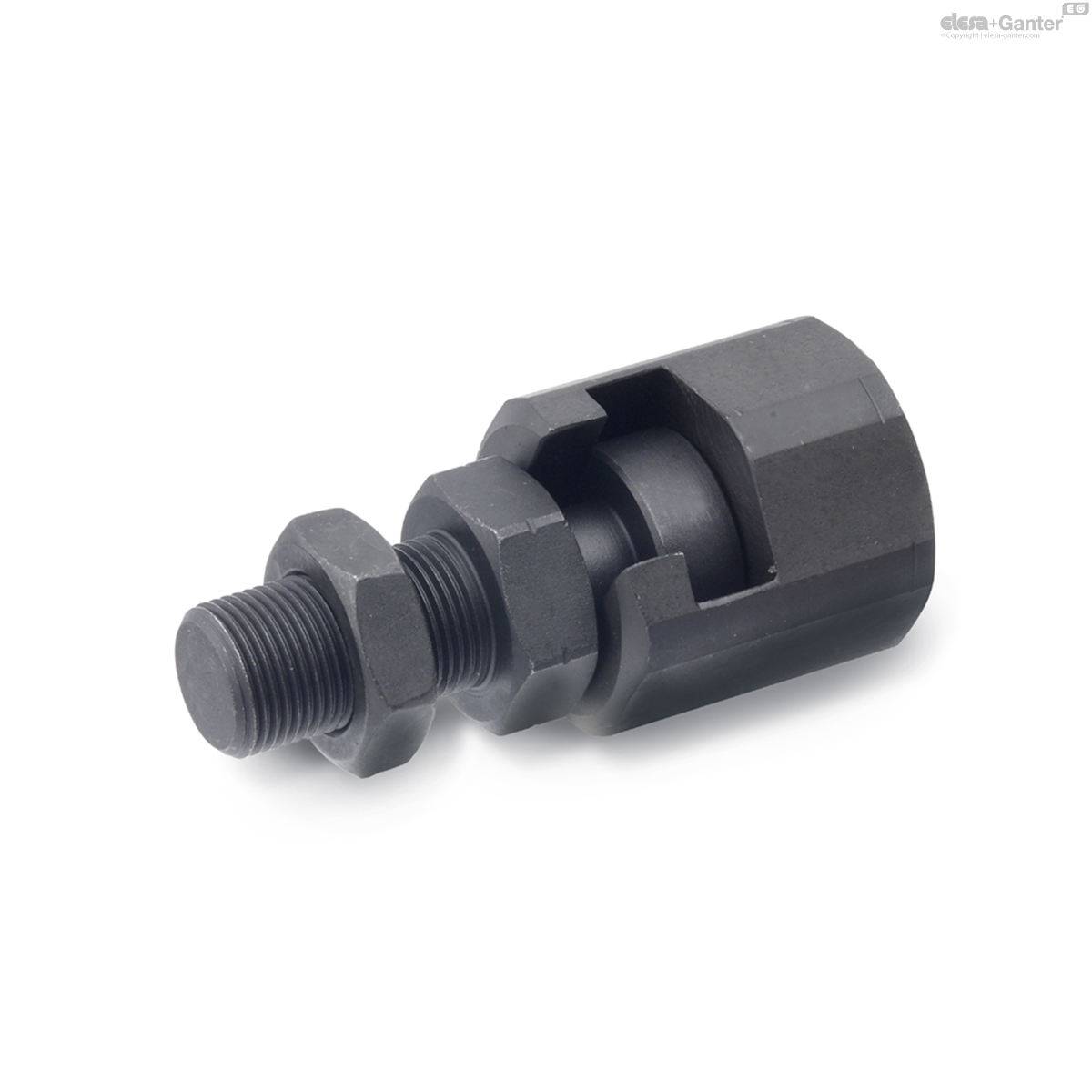

Quick-fit couplings GN 240 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
