240.2-M10X1,25 GN 240.2 Quick-fit couplings

240.2-M10X1,25

GN 240.2 Quick-fit couplings

with Angle- and Radial Off-Set Compensation
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 240.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 240.2-M10x1,25
d1
M10x1.25
d2
21
x
0.7
e
44
l1 ≈
81
l2
43
l3
30.5
l4
22
l5 min.
24
l6
16
A/F 1
41
A/F 2
18
A/F 3
12
x Max. radial off-set
0.7
Max. pull-/push
load in kN
6.5
403

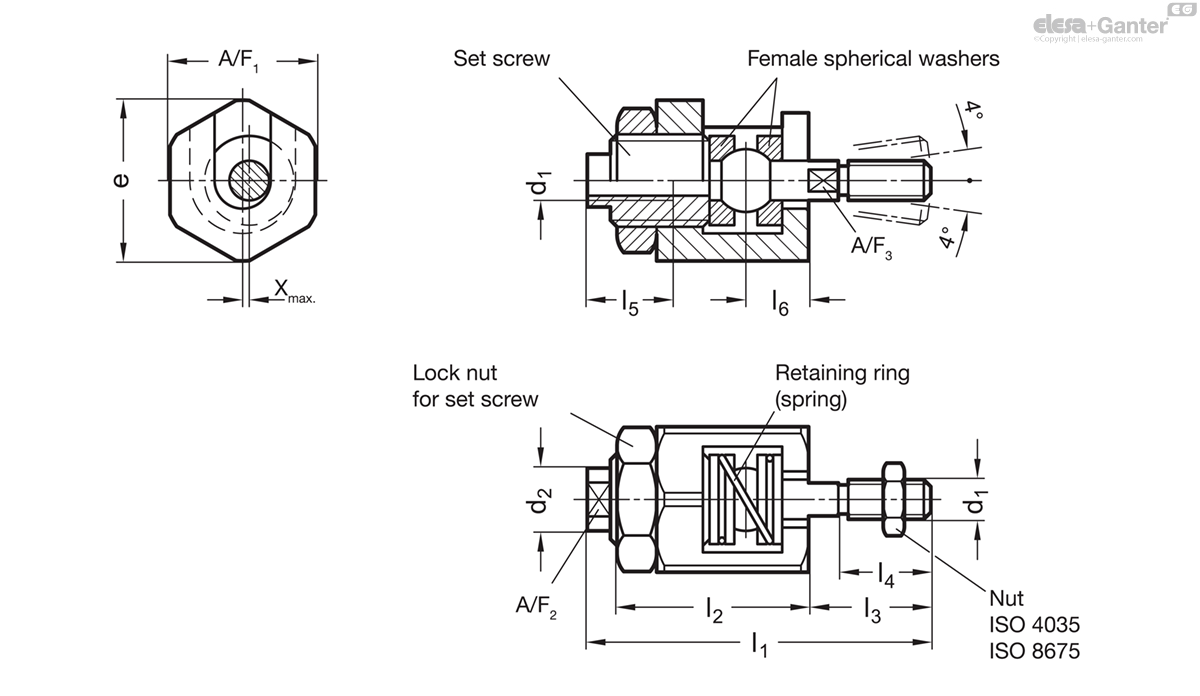

240.2-M10X1,25 drawing

Steel

  • tempered
  • phosphated

Retaining ring (spring)

Stainless Steel AISI 631

Quick-fit couplings GN 240.2 have been designed to compensate a radial and angular off-set. Furthermore they are axially freely adjustable via the set screw.

A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is renowned by its very compact construction without any loose components.

It is not designed for the transfer of torque.
