240.1-M8-B GN 240.1 Quick-fit couplings

240.1-M8-B

GN 240.1 Quick-fit couplings

with Radial Off-Set Compensation
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 240.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 240.1-M8-B
d1
M8
d2
48
x
Max. shaft
off set
0.7
d3
6.5
e ≈
14.5
k1
8
k2
16
k3
32
l1 ≈
35.5
l2
13
l3 min.
13.5
A/F
13
x Max. radial off-set
0.7
Max. pull-/push
load in kN
4.5
122

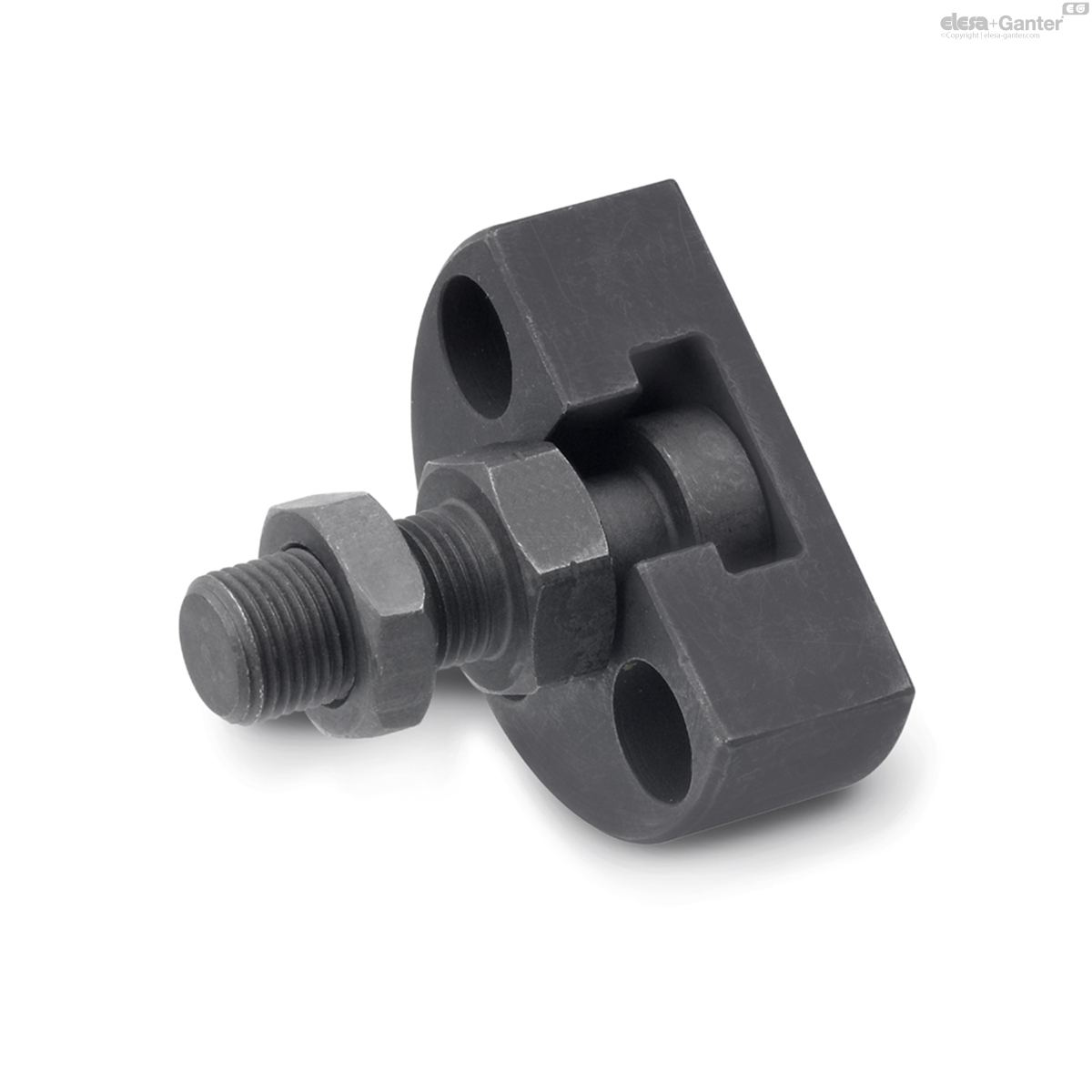

240.1-M8-B drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
