240.1-M12X1,25-B GN 240.1 Quick-fit couplings

240.1-M12X1,25-B

GN 240.1 Quick-fit couplings

with Radial Off-Set Compensation
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 240.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 240.1-M12x1,25-B
d1
M12x1.25
d2
55
x
Max. shaft
off set
0.8
d3
6.5
e ≈
21
k1
10
k2
19
k3
38
l1 ≈
53
l2
20.5
l3 min.
17.5
A/F
19
x Max. radial off-set
0.8
Max. pull-/push
load in kN
10
276

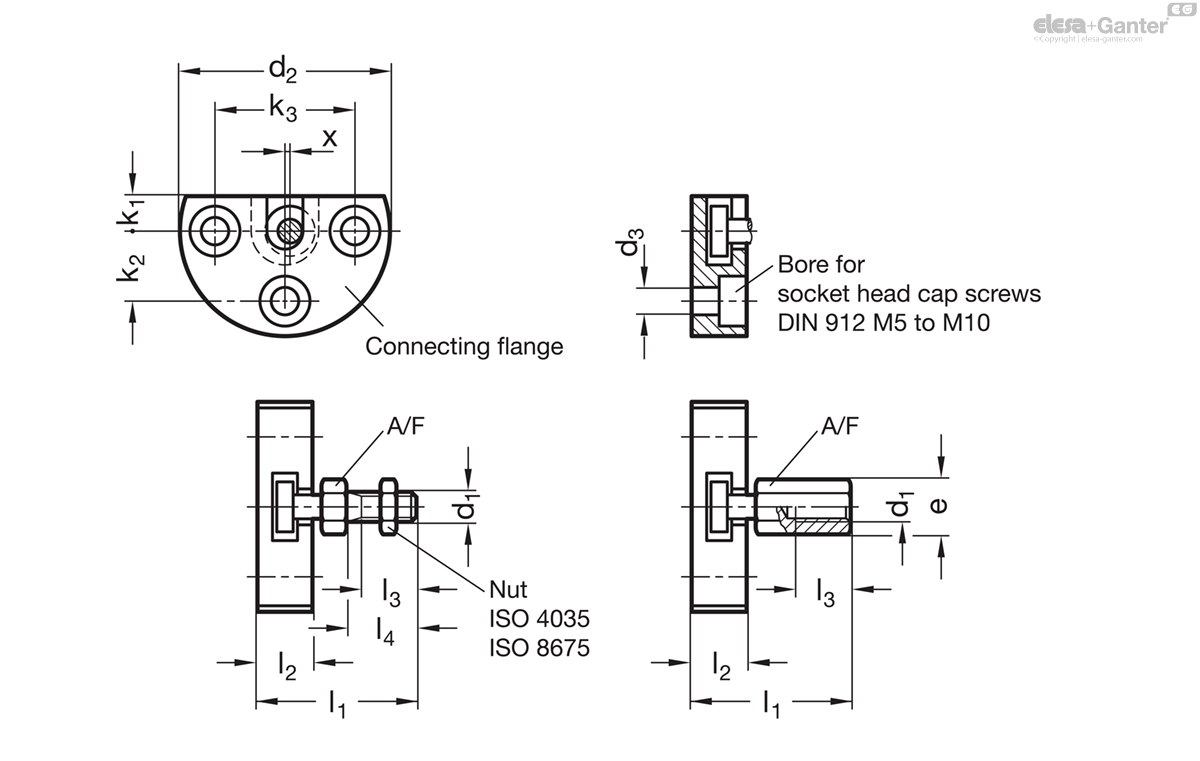

240.1-M12X1,25-B drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
