223-40-B12
GN 223-B Without keyway
Steel
Eta: 1-2 weeks All sizes and variants of GN 223
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

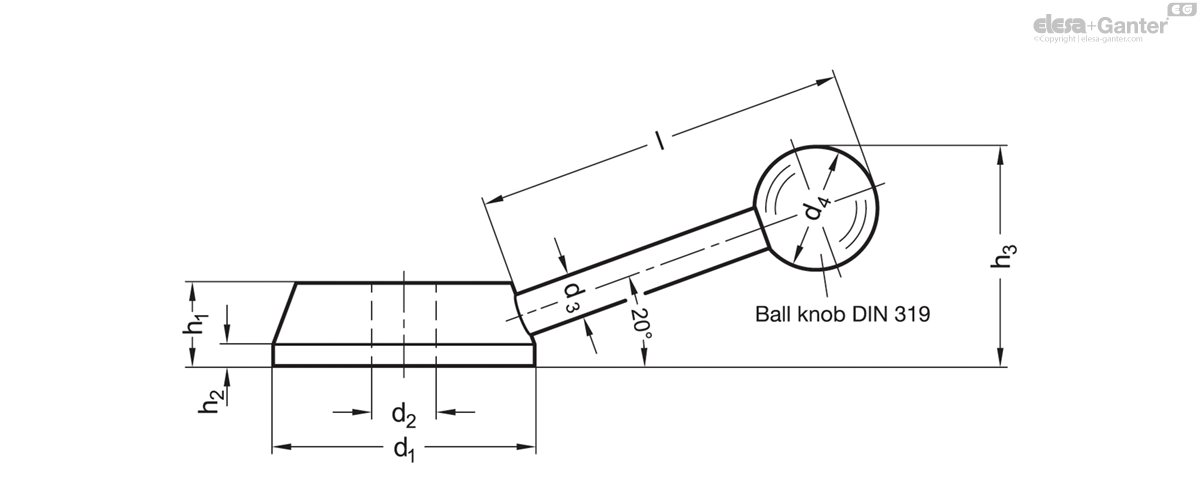

Technical data
- Catalogue
- GN 223-40-B12
- d1
- 40
- d2 H7
- B 12
- d3
- 10
- d4
- 30
- h1
- 22
- h2
- 8.5
- h3 ≈
- 77
- Length l≈
- 95
- 214
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version V: With square DIN 79
Hub / Shaft
Hub / Shaft
Steel
Blackened
Ball knob DIN 319
Ball knob DIN 319
Plastic, phenolic resin (PF)
Black, shiny finish
