213-72-B18 GN 213-B Without keyway

213-72-B18

GN 213-B Without keyway

Steel
All sizes and variants
  • RoHS

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 213-72-B18
d1
72
d2 Bore H7
B 18
d3
40
d4
12
d5
32
h1
36
h2
14
h3 ≈
80
l ≈
124
weight
1097

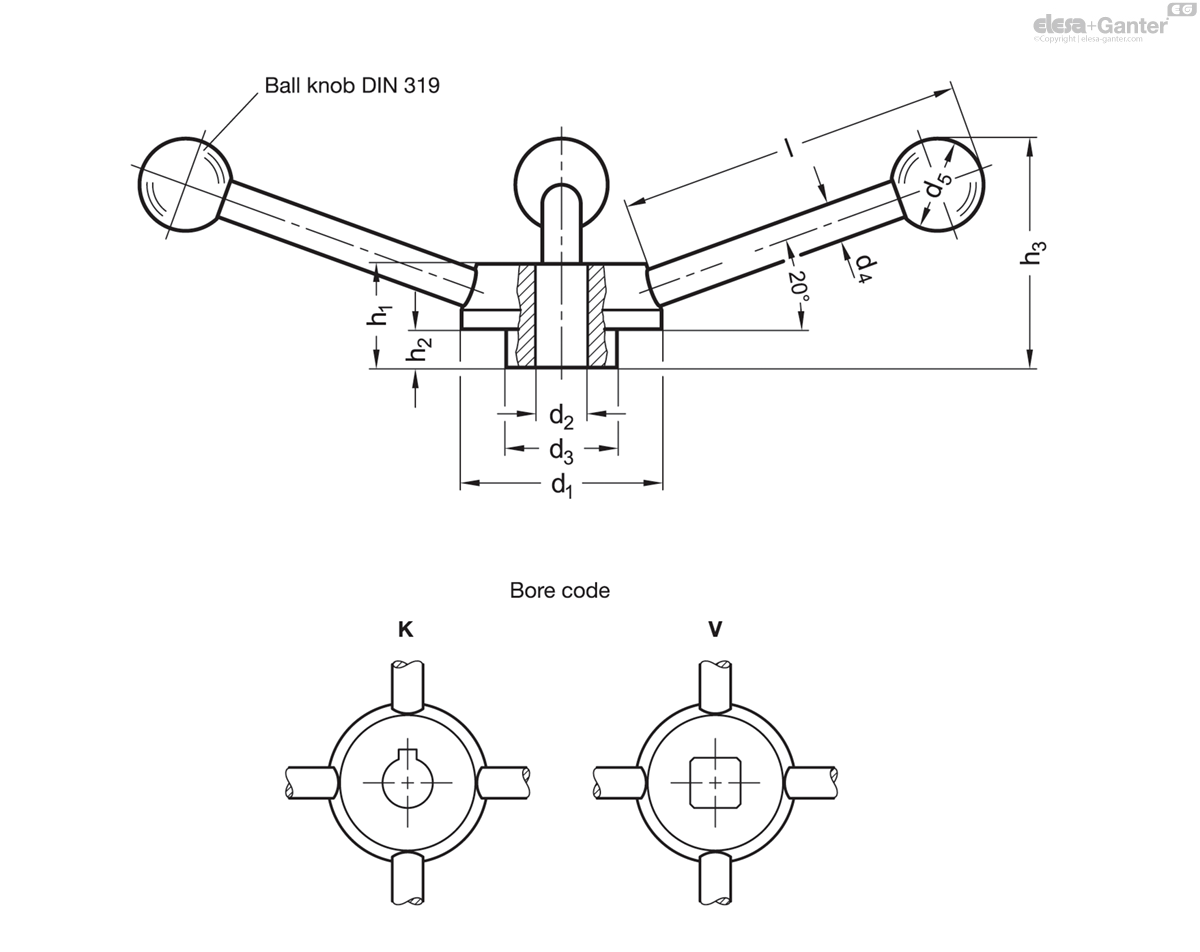

213-72-B18 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shafts

Steel

Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish
