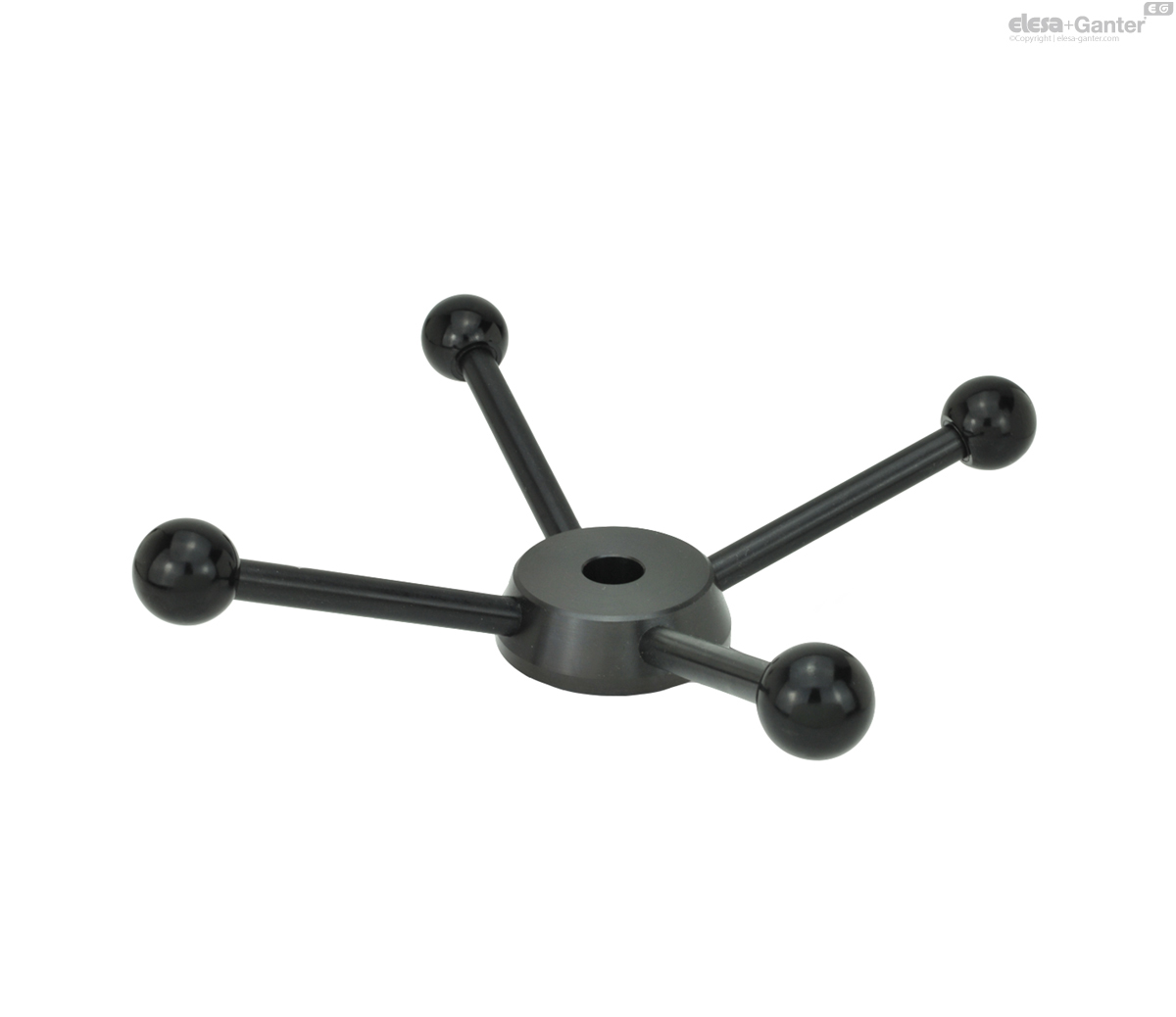

213-60-B15 GN 213-B Without keyway

213-60-B15

GN 213-B Without keyway

Steel
All sizes and variants
  • RoHS

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 213-60-B15
d1
60
d2 Bore H7
B 15
d3
32
d4
10
d5
25
h1
30
h2
11
h3 ≈
64
l ≈
96
weight
633
213-60-B15 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shafts

Steel

Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish
