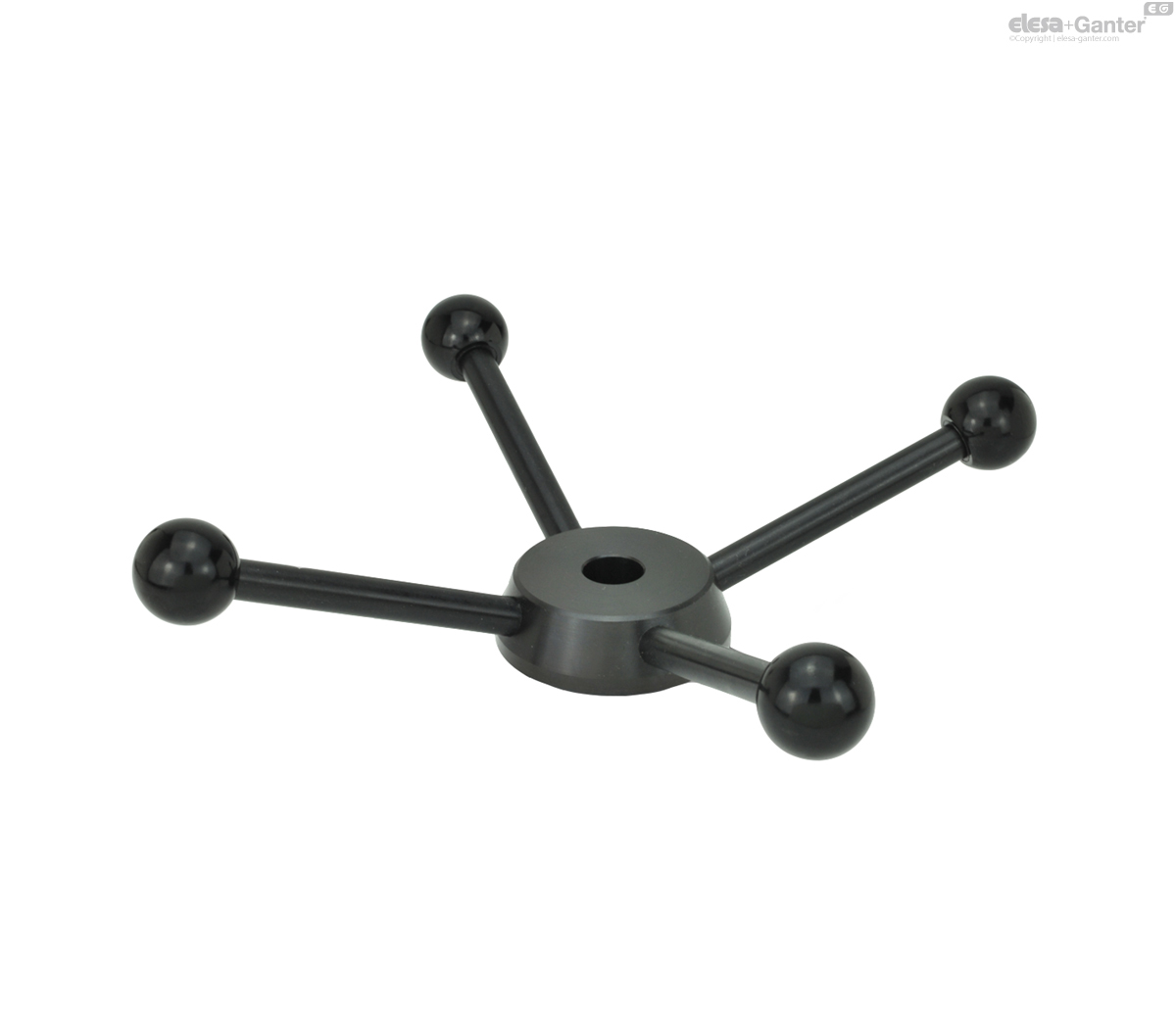

213-100-B24 GN 213-B Without keyway

213-100-B24

GN 213-B Without keyway

Steel
All sizes and variants
  • RoHS

In stock at the manufacturer (indicative)

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 213-100-B24
d1
100
d2 Bore H7
B 24
d3
54
d4
16
d5
40
h1
52
h2
24
h3 ≈
113
l ≈
170
weight
2781
213-100-B24 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shafts

Steel

Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish
