212-32-M16-E-NI GN 212-NI Stainless Steel

212-32-M16-E-NI

GN 212-NI Stainless Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 212

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 212-32-M16-E-NI
d1
32
d2
M 16
d4
12
d5
32
h1
52
h2 ≈
98
l1 ≈
133
l2 ≈
126
t1 min.
25
358

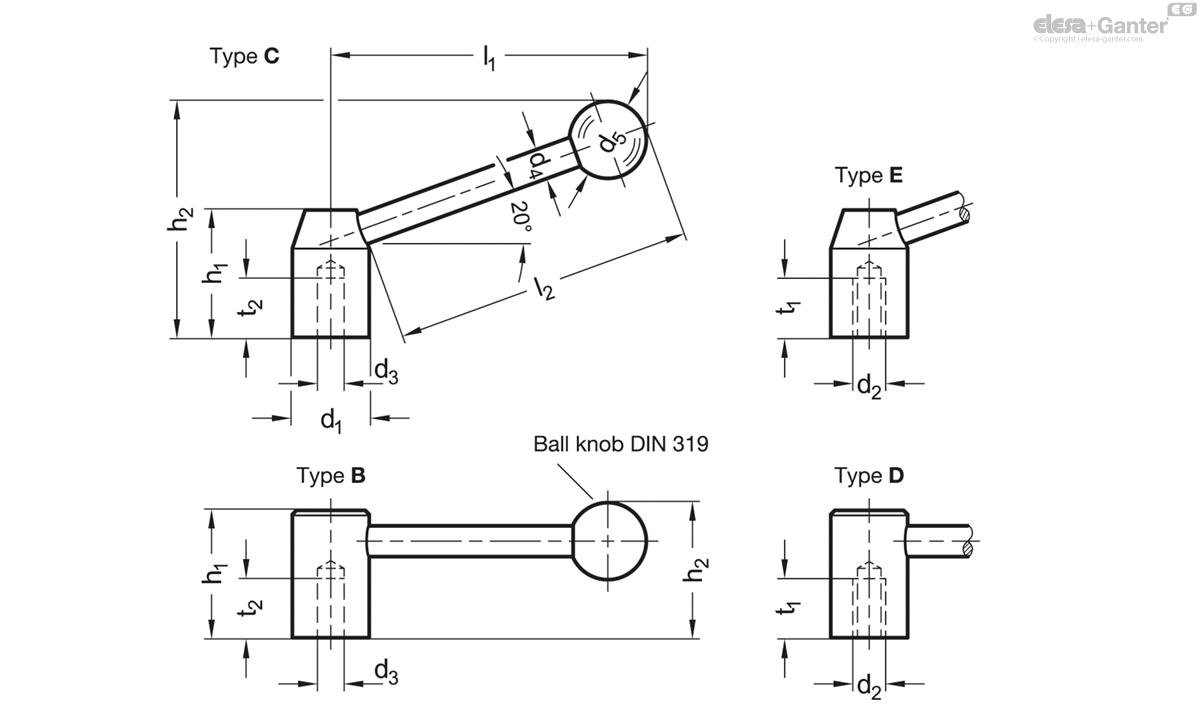

212-32-M16-E-NI drawing
* Not available from stock, requires a minimum order quantity

Types

  • Type C: Angled lever with plain bore
  • Type E: Angled lever with thread
  • Type B: Straight lever with plain bore
  • Type D: Straight lever with thread

Hub / Shaft

  • Steel
  • Blackened
  • Stainless steel AISI 303 NI
  • Matte, shot-blasted

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

Tension levers GN 212 are used as clamping element as well as operating levers.
