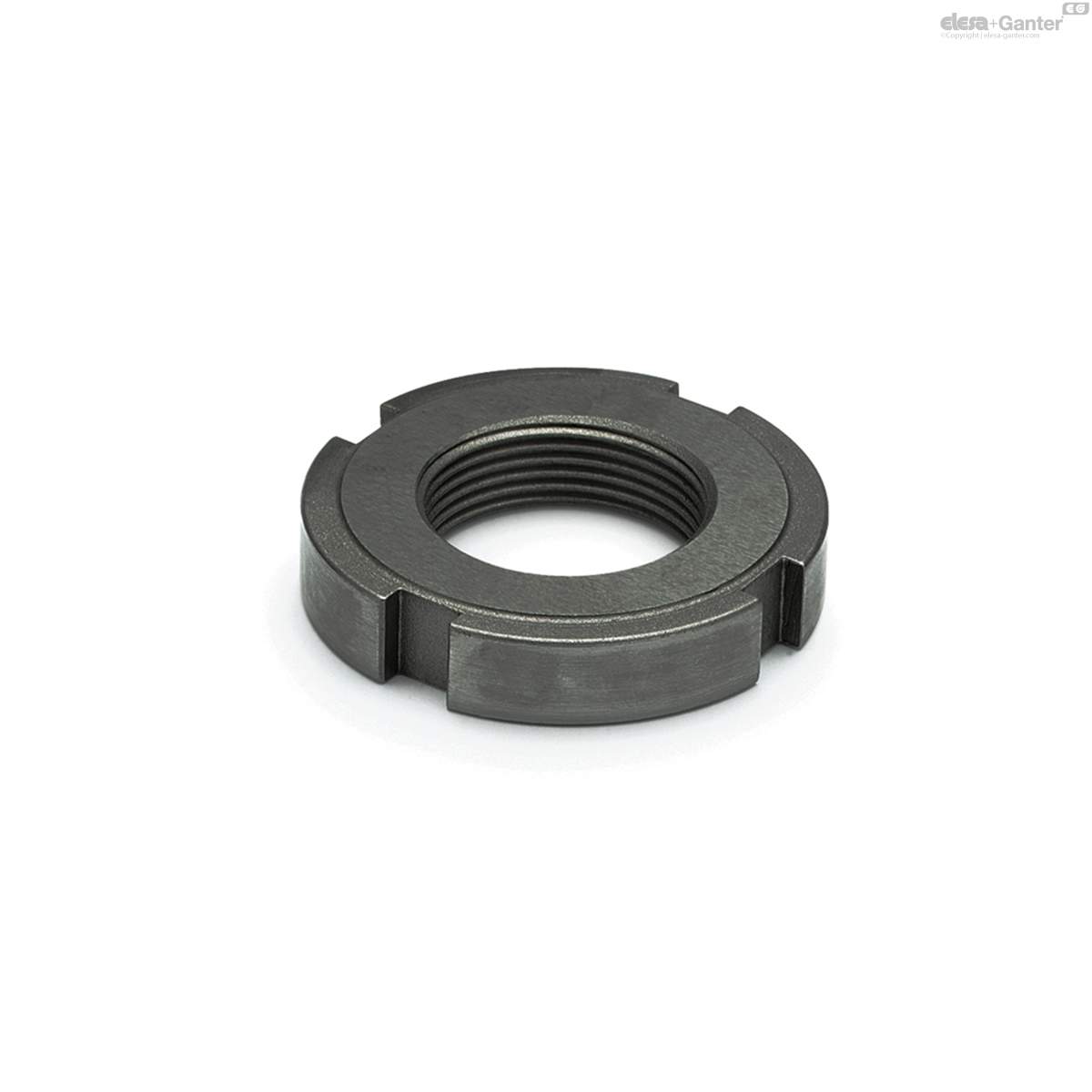

1804-M48X1,5-H DIN 1804 Slotted locknuts

1804-M48X1,5-H

DIN 1804 Slotted locknuts

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 1804

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 1804-M48x1,5-H
d1
M48x1.5
d2 h11
75
d3
67
b
8
h h14
13
Code no. for
C-Spanner
DIN 1810-A68-75
240
1804-M48X1,5-H drawing
* Position tolerances apply to type H

Types

  • Type W: Steel, not hardened
  • Type WNI: Stainless Steel, not hardened
  • Type H: Steel, hardened

Type W

Steel

  • Tensile strength class 5
  • not hardened
  • blackened

Type WNI

Stainless Steel AISI 303

  • not hardened

Type H

Steel

  • Tensile strength class 5
  • hardened HRC 60 ± 2 (thread not hardened)
  • Mating surface ground or fine turned

On slotted locknuts DIN 1804 the ground surface d3 stands proud and should be used as a mating surface.

The sizes M45x1.5 to M60x1.5 have 6 slots.

The official DIN standard sheets specifies additional sizes (up to M 200 x 3).

  • C-Spanner DIN 1810 (Code no. see table)
