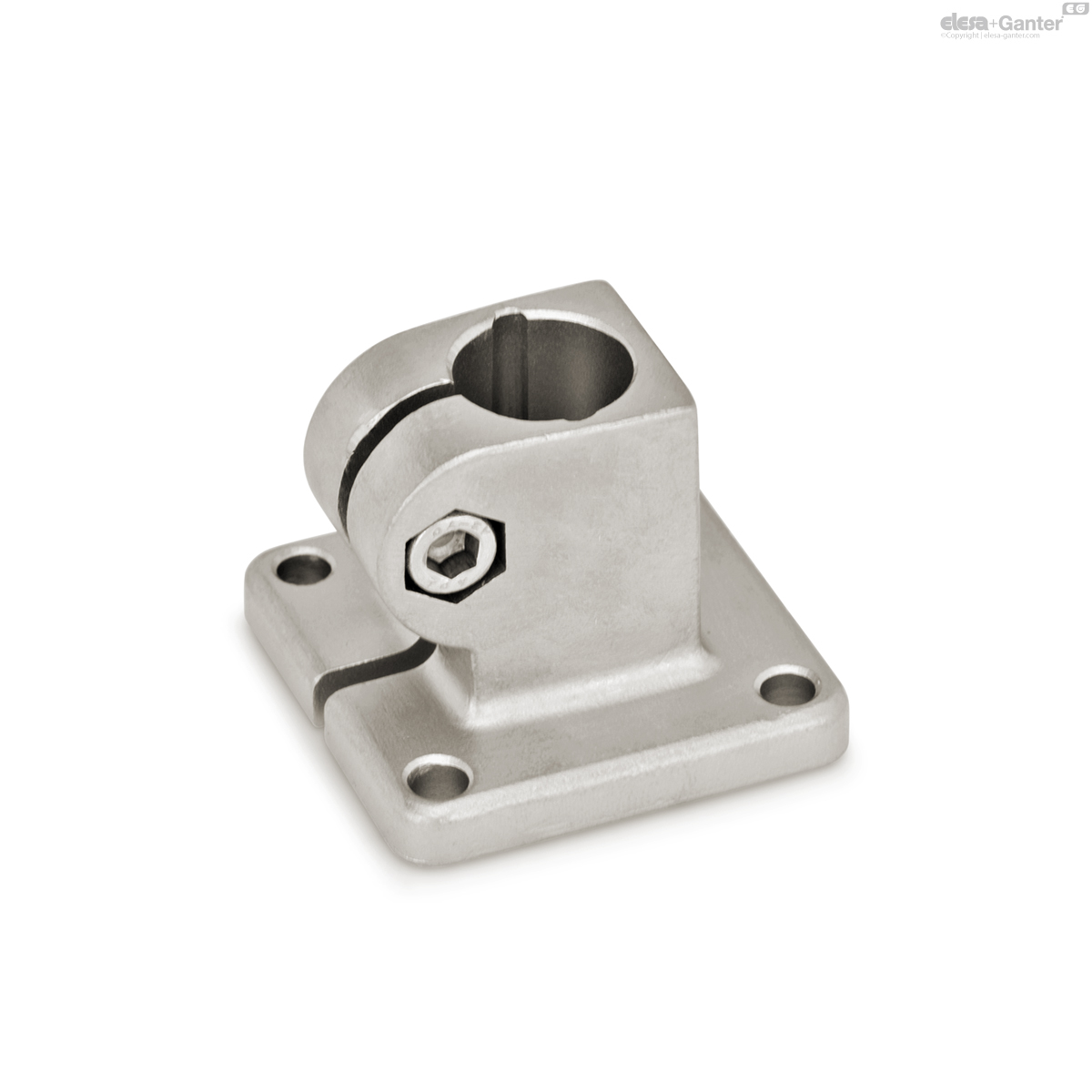

162-B12-2-NI GN 162-NI Stainless Steel

162-B12-2-NI

GN 162-NI Stainless Steel

Aluminum / Stainless Steel, with 4 Mounting Holes
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 3-4 weeks All sizes and variants of GN 162

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 162-B12-2-NI
d1
Bore
B 12
d2
5.5
k Clamping length
40
l1
34.5
l2
25
t
7
x1
50
x2
38
y1
50
y2
38
z
Screw location
M6-20
93

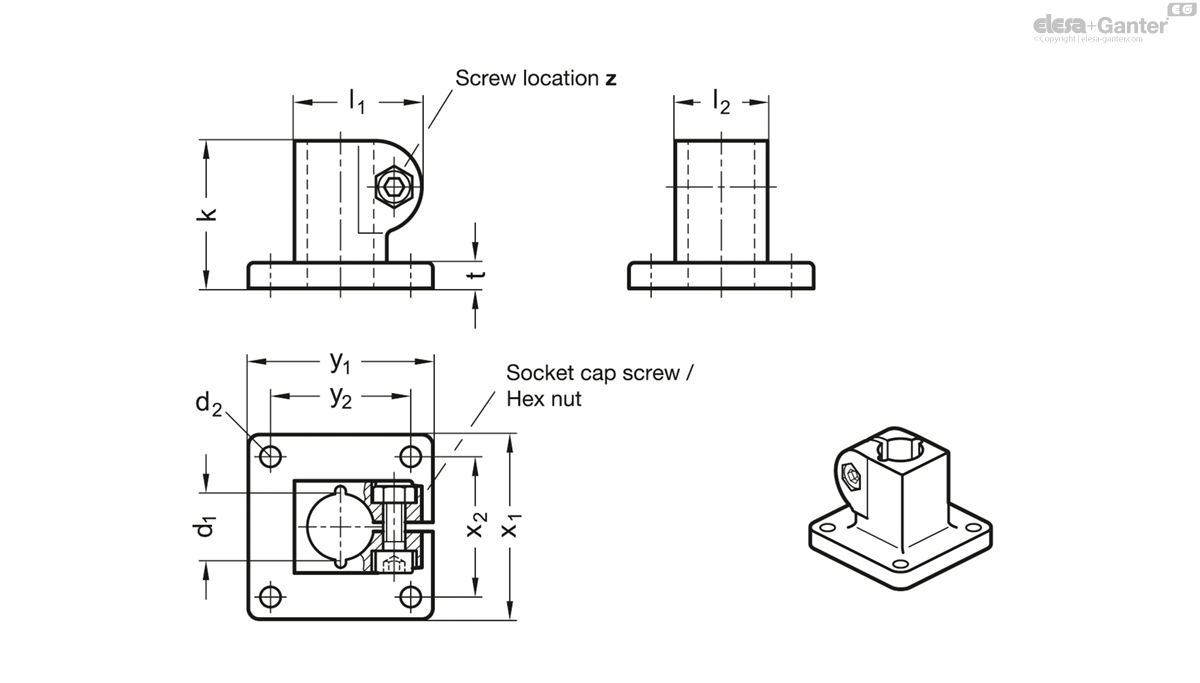

162-B12-2-NI drawing

Identification No.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Stainless steel AISI CF-8 NI

Matte shot-blasted

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

The clamping bore of base plate connector clamps GN 162 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
