1524-M16-120 GN 1524 Steel

1524-M16-120

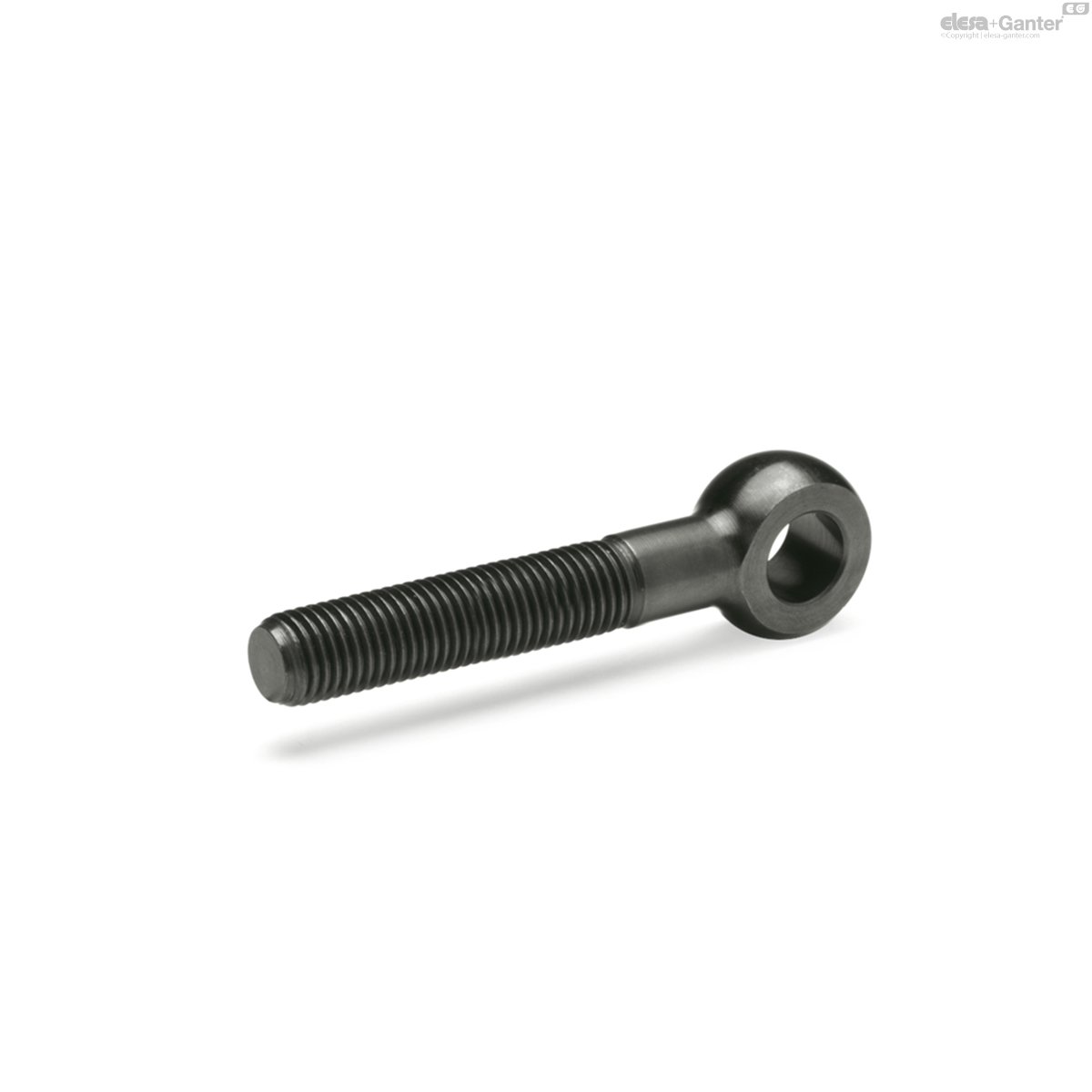

GN 1524 Steel

Steel / Stainless Steel, with long threaded bolt
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 1524

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 1524-M16-120
d1
M 16
l1
120
l2
80
d2 E8
16
d3 -0.4
32
s -0.2
18
d4
16
210
1524-M16-120 drawing

Version in Steel

  • Tensile strength class 5.8
  • turned
  • blackened

Version in Stainless Steel NI

  • AISI 303
  • turned
  • matt shot-blasted

Swing bolts GN 1524 offer a longer threaded bolt contrary to DIN 444 .

For stocking purpose cylinder head shoulder bolts GN 732  can be used for the sizes M8, M10 and M12.
