150-24-B12 GN 150 Split Hubs

150-24-B12

GN 150 Split Hubs

Steel
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 150

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 150-24-B12
d1
24
d2
B 12
b1 ±0.2
15.5
b2
13
d3
M 8
d4
10
l
36
t min.
11
74
150-24-B12 drawing

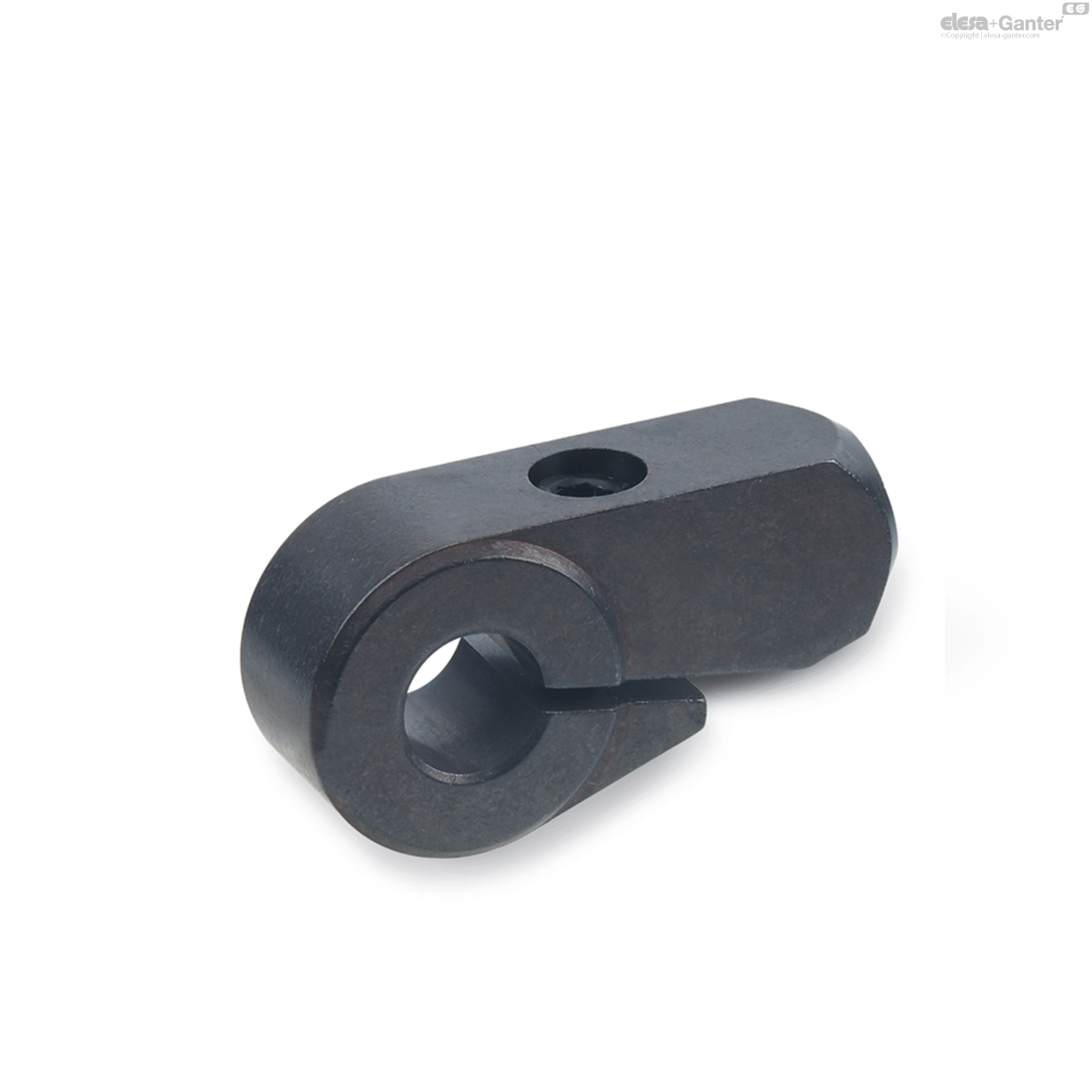

Split Hub

Steel

  • Sintered
  • Black oxidized with vapor

Socket cap screw ISO 4762

Steel, plain

Split hubs GN 150 are distinguished by the method of simple clamping to any shaft.

This can be achieved without prior machining of the shaft, eliminating clamping parts and assembly work.

A further advantage is the positioning of the lever arm to any required position.

The shaft tolerance should be within h11; to transmit higher torques the hub can be supplied with a keyway.
