112.1-80-S8
GN 112.1 Control Handles
Zinc die casting
Eta: 1-2 weeks All sizes and variants of GN 112.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

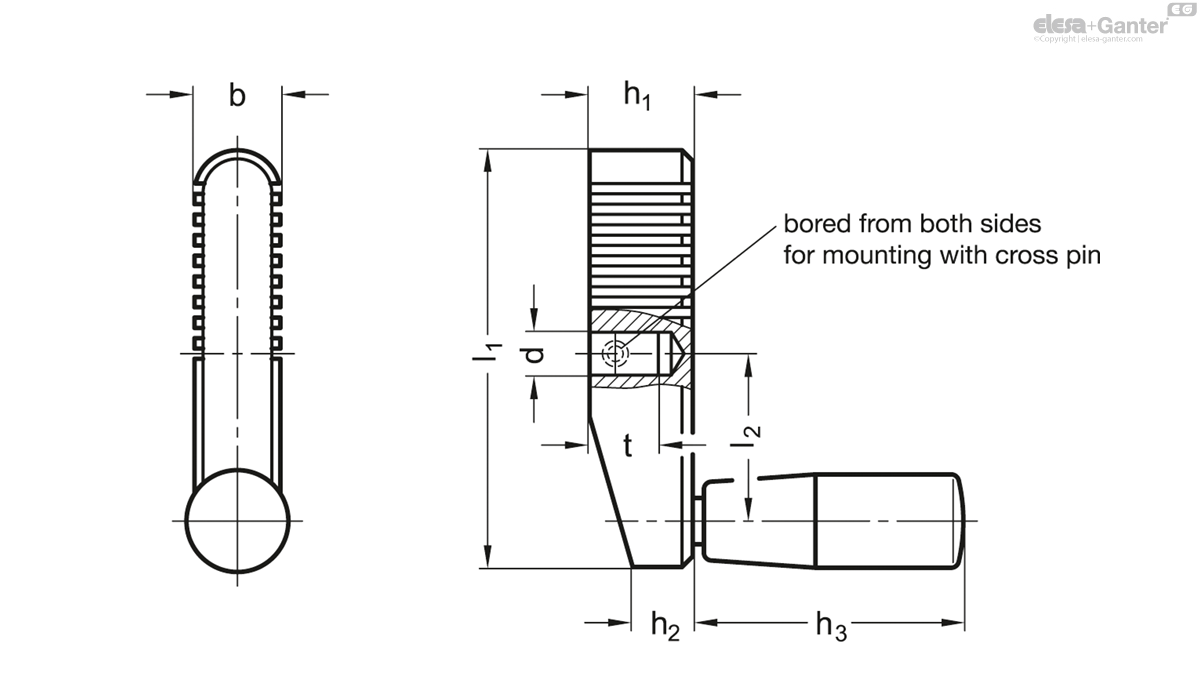

Technical datasheet
Technical data
- Catalogue
- GN 112.1-80-S8
- l1
- 80
- d H7
- S 8
- b
- 18
- h1
- 21
- h2
- 12.5
- h3 ≈
- 52.5
- l2
- 31
- t min.
- 12
- Ø Handle
- 21
- 170
Body
Zinc die casting
plastic coated
black, textured finish
Cylindrical Revolving handles GN 598
- Plastic, technopolymer, black matt
- Spindle steel, zinc plated, blue passivated
Control handles GN 112.1 allow fine adjustment.
They are connected to a shaft by means of a cross pin. To simplify the installation threre is a centred drilling on both sides.
