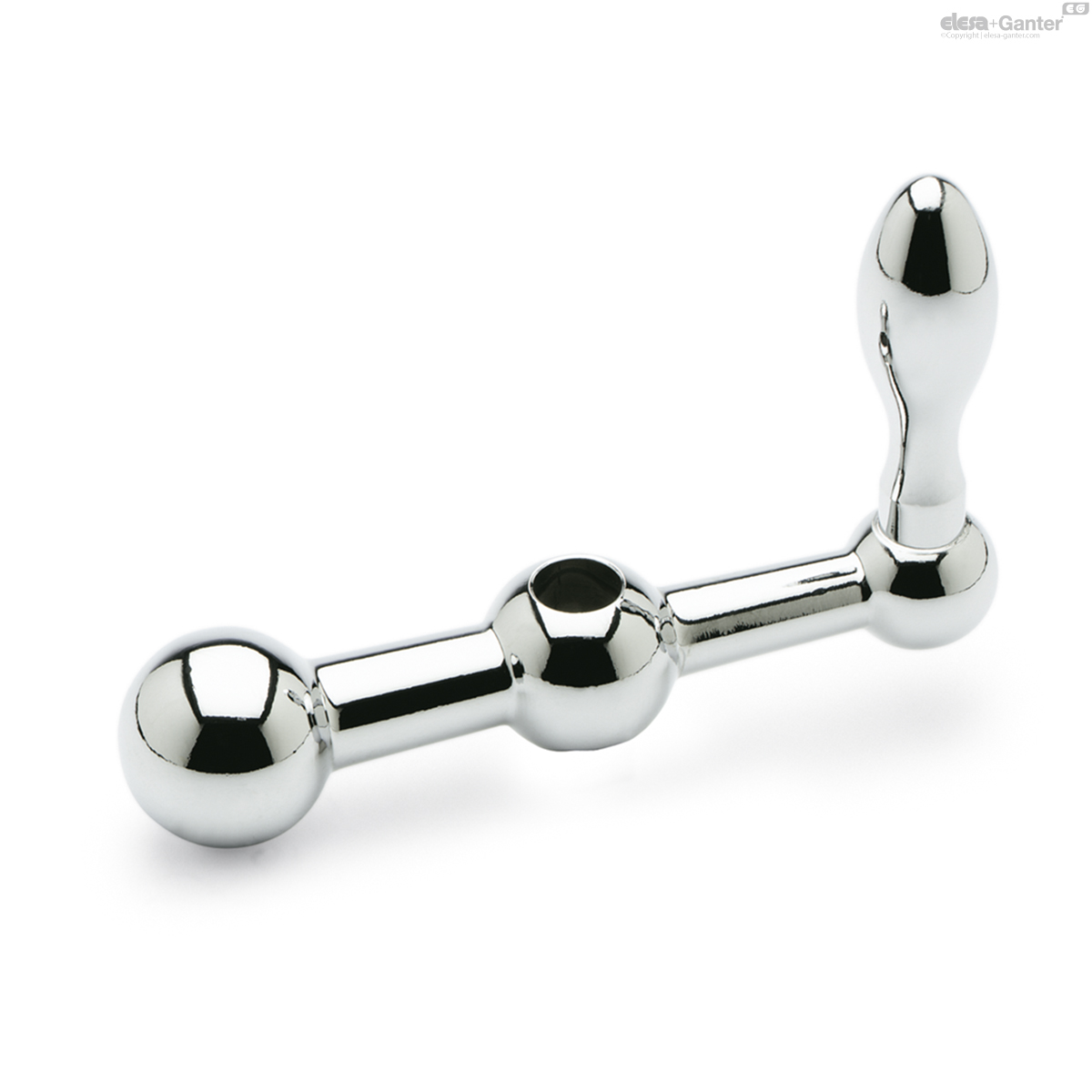

10-104-B12-F GN 10 Tri-Ball Handles

10-104-B12-F

GN 10 Tri-Ball Handles

Steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 10

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 10-104-B12-F
No.
104
d1 H7
B 12
d2
20
d3
26
d4
28
d5
18
h1
21.5
h2 ≈
56
l
50
283

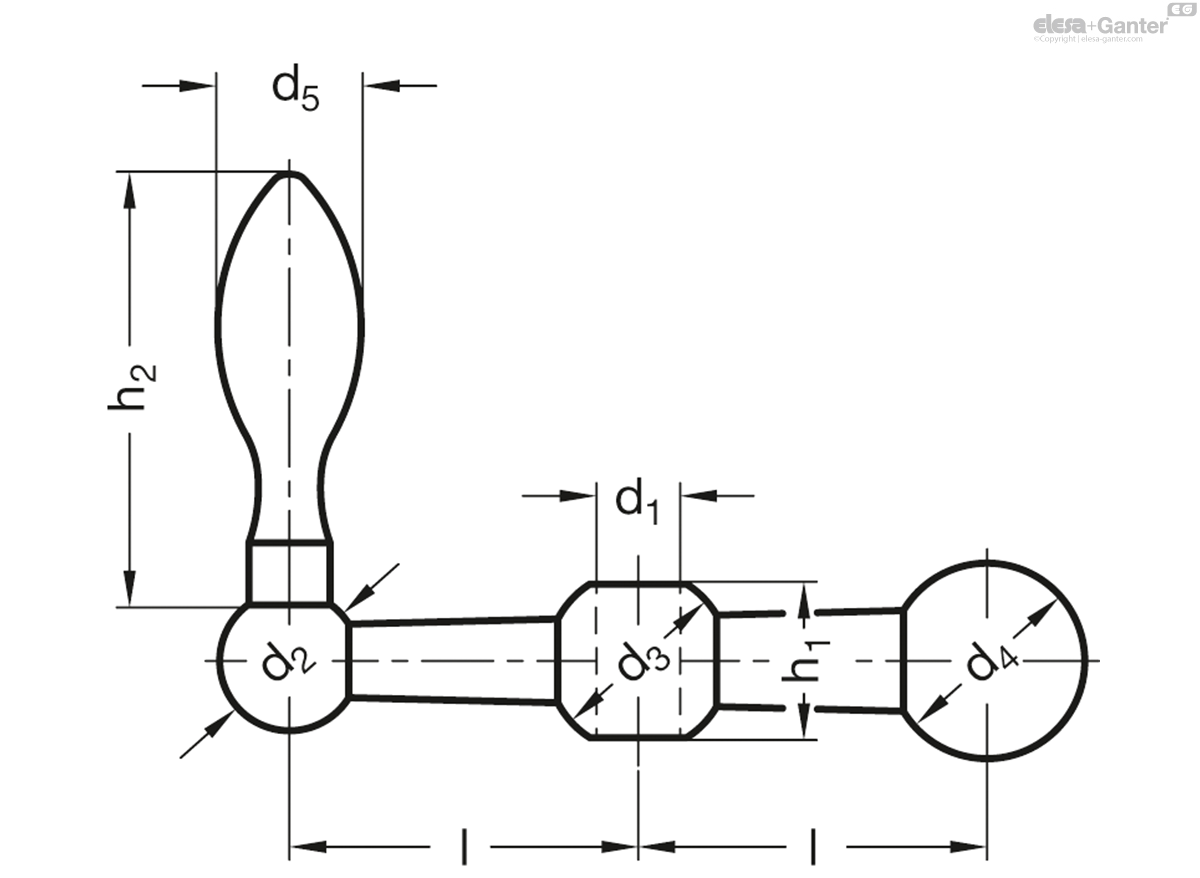

10-104-B12-F drawing

Type

  • Type F: with fixed handle

Steel

  • turned
  • zinc plated, blue passivated

Fixed handles DIN 39 -

Steel zinc plated, blue passivated

Tri-ball handles GN 10 allow fine adjustment.

An alternative in modern design are control handles GN 112.1
