10-100-B7-F GN 10 Tri-Ball Handles

10-100-B7-F

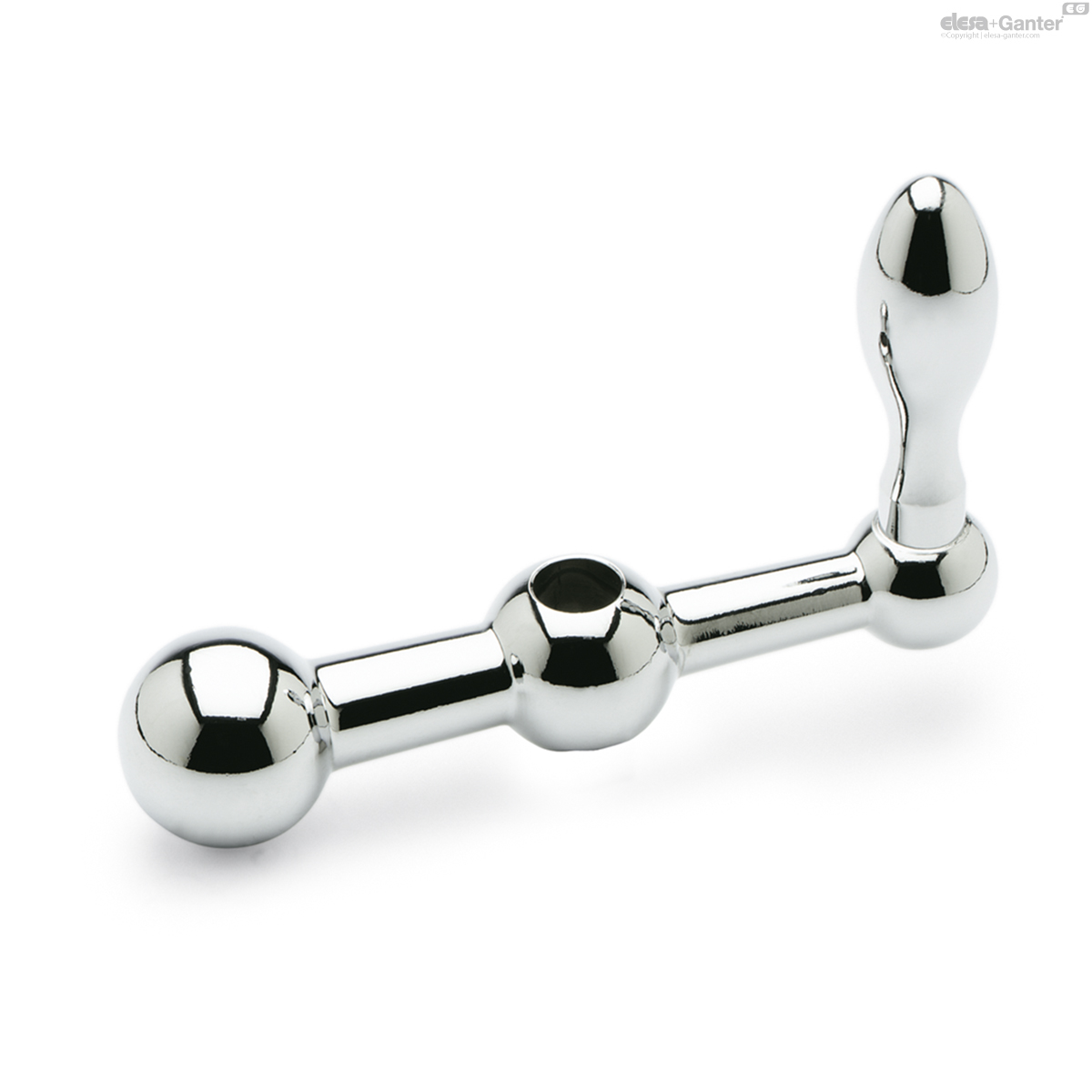

GN 10 Tri-Ball Handles

Steel
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 10

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 10-100-B7-F
No.
100
d1 H7
B 7
d2
13
d3
16
d4
18
d5
10
h1
13
h2 ≈
31
l
25
61
10-100-B7-F drawing

Type

  • Type F: with fixed handle

Steel

  • turned
  • zinc plated, blue passivated

Fixed handles DIN 39 -

Steel zinc plated, blue passivated

Tri-ball handles GN 10 allow fine adjustment.

An alternative in modern design are control handles GN 112.1
