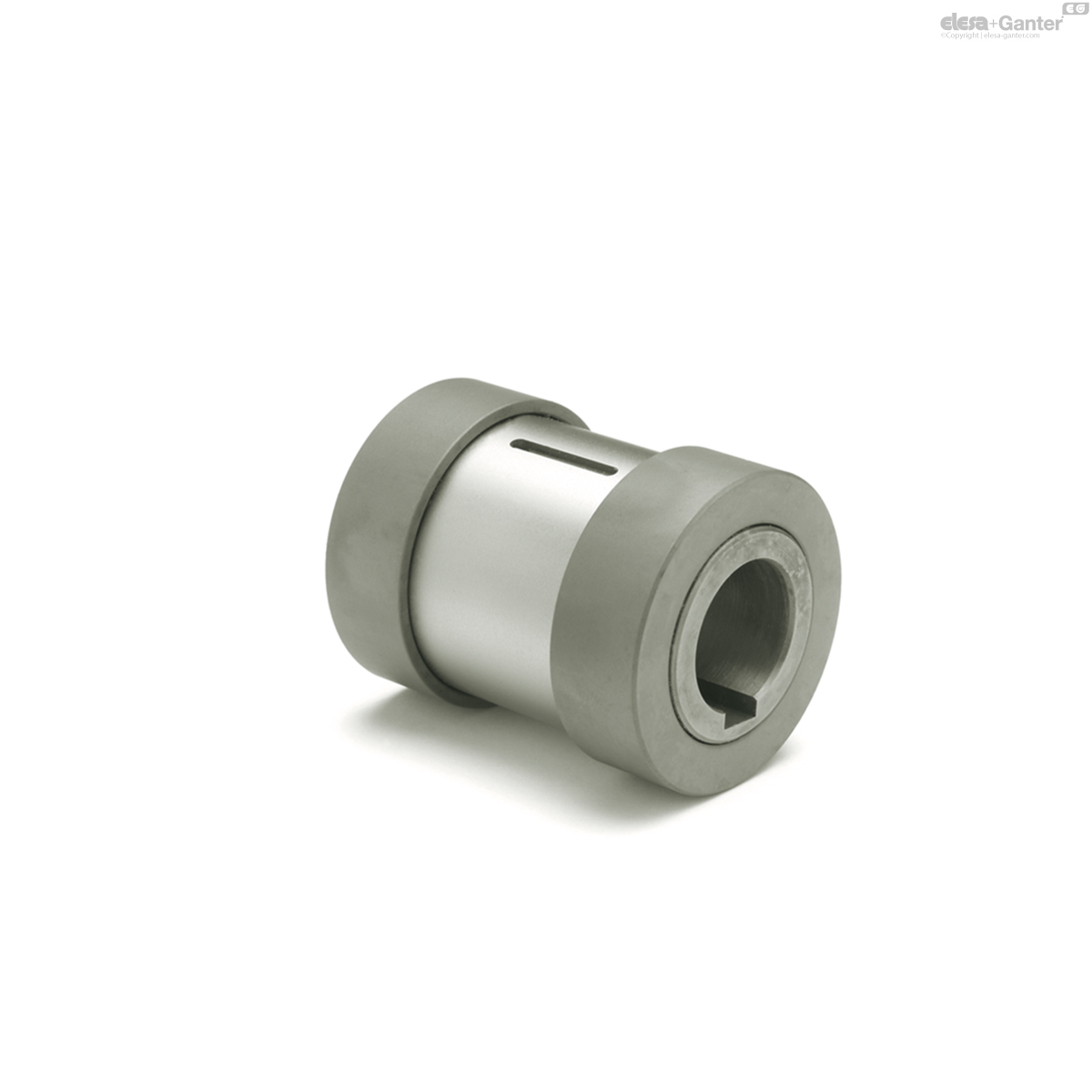

000.5 - 4 - K 22 GN 000.5 Coupling Attachments

000.5 - 4 - K 22

GN 000.5 Coupling Attachments

Steel, for Safety Handwheels, with Needle Bearings
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 000.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 000.5-4-K22

Nominal size
4
d1 Ø Handwheel
GN 321
GN 322
GN 323
250
d2 H7 Bore with keyway
K 22
d3
46
d4 max.
30
d5 Minimum-Ø
of handwheel hub
46
d6 -0.05 Bore Ø of handwheel hub H7
41
l1
54
l2 ±0.1 Length of handwheel hub
28
l3
13
t
42
w min.
4
390

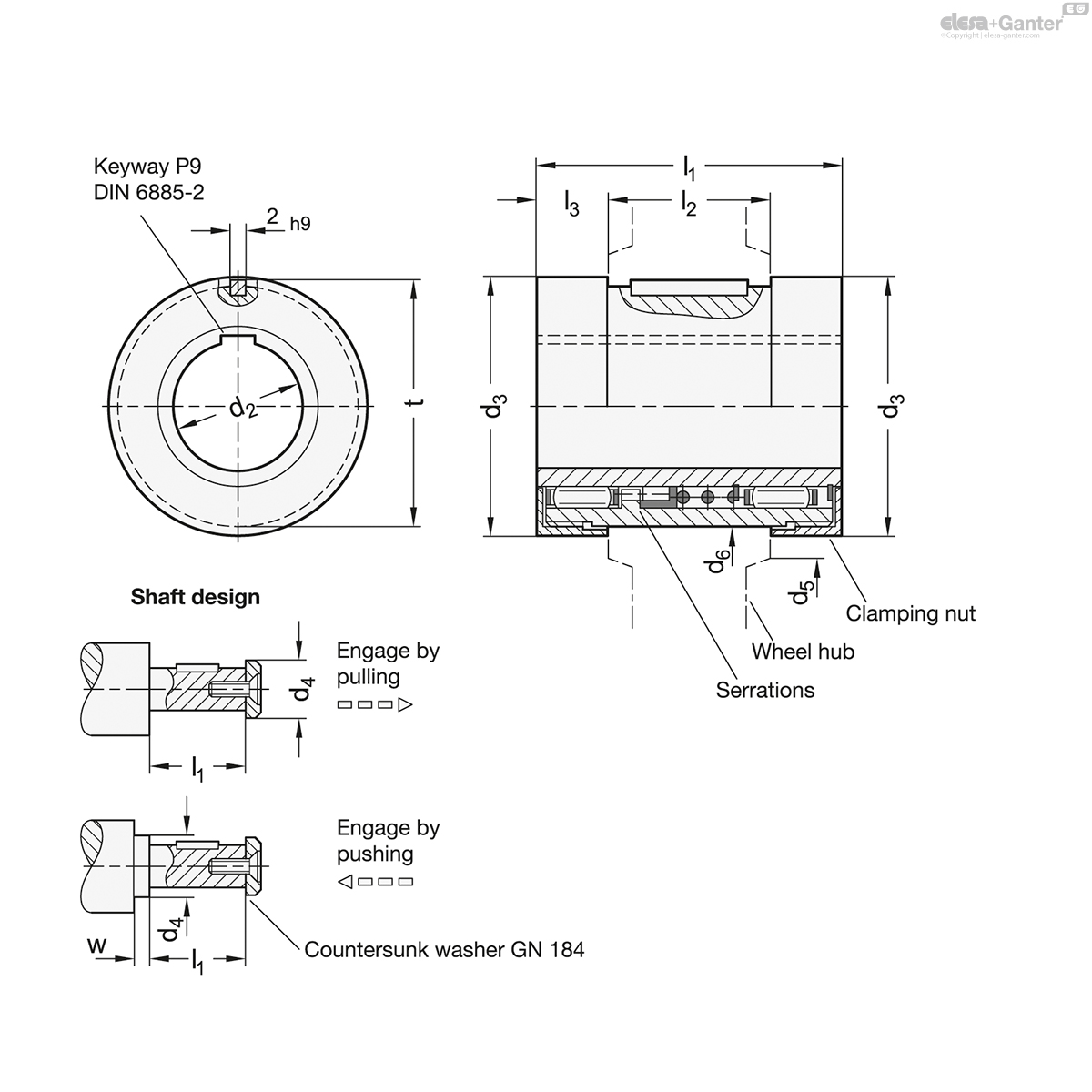

000.5 - 4 - K 22 drawing

Steel

  • Hardened
  • Bearing surfaces ground

The use of needle bearings and the hardened bearing surfaces make the clutch engagement extremely easy. This is also assisted by the finer teeth of the clutch and the increased length of the coupling attachment.

Its suitability for high shaft speeds, especially when these are maintained for long periods, is a further advantage of the needle bearing.

An oil-hole is provided which in the completely assembled safety handwheel connects with the handwheel hub.

The coupling attachment is axially secured in the handwheel hub by a clamp nut.
