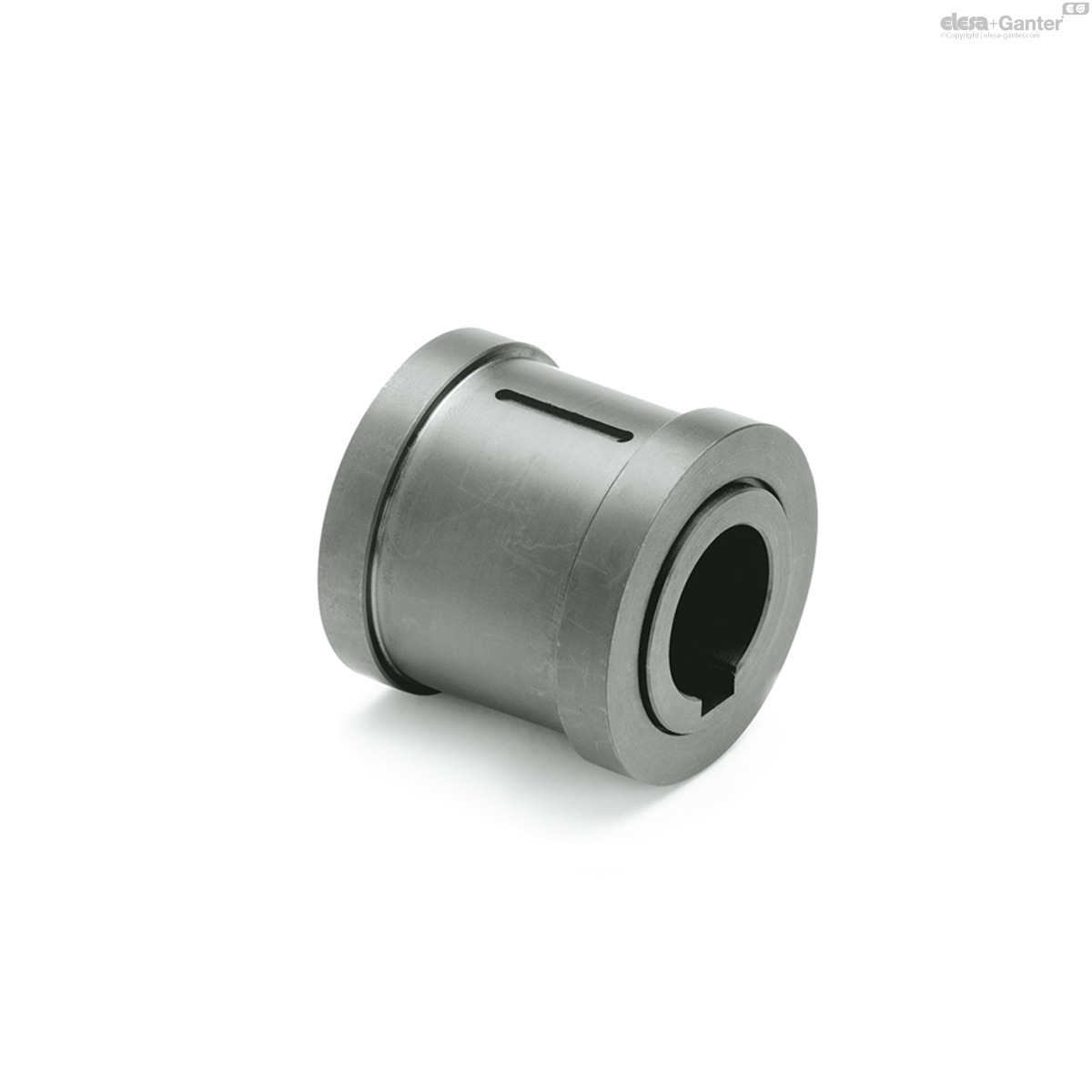

000.4 - 2 - K 14 GN 000.4 Coupling Attachments

000.4 - 2 - K 14

GN 000.4 Coupling Attachments

Steel, for Safety Handwheels, with Friction Bearings
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 000.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 000.4-2-K14

Nominal size
2
d1 Ø Handwheel
GN 321
GN 322
GN 323
140 160
d2 H7 Bore with keyway
K 14
d3
32
d4 max.
21
d5 Minimum-Ø
of handwheel hub
33
d6 -0.03 Bore Ø of handwheel hub H7
29
l1
32.5
l2 ±0.1 Length of handwheel hub
19 20
l3
6
t
30
w min.
4
110

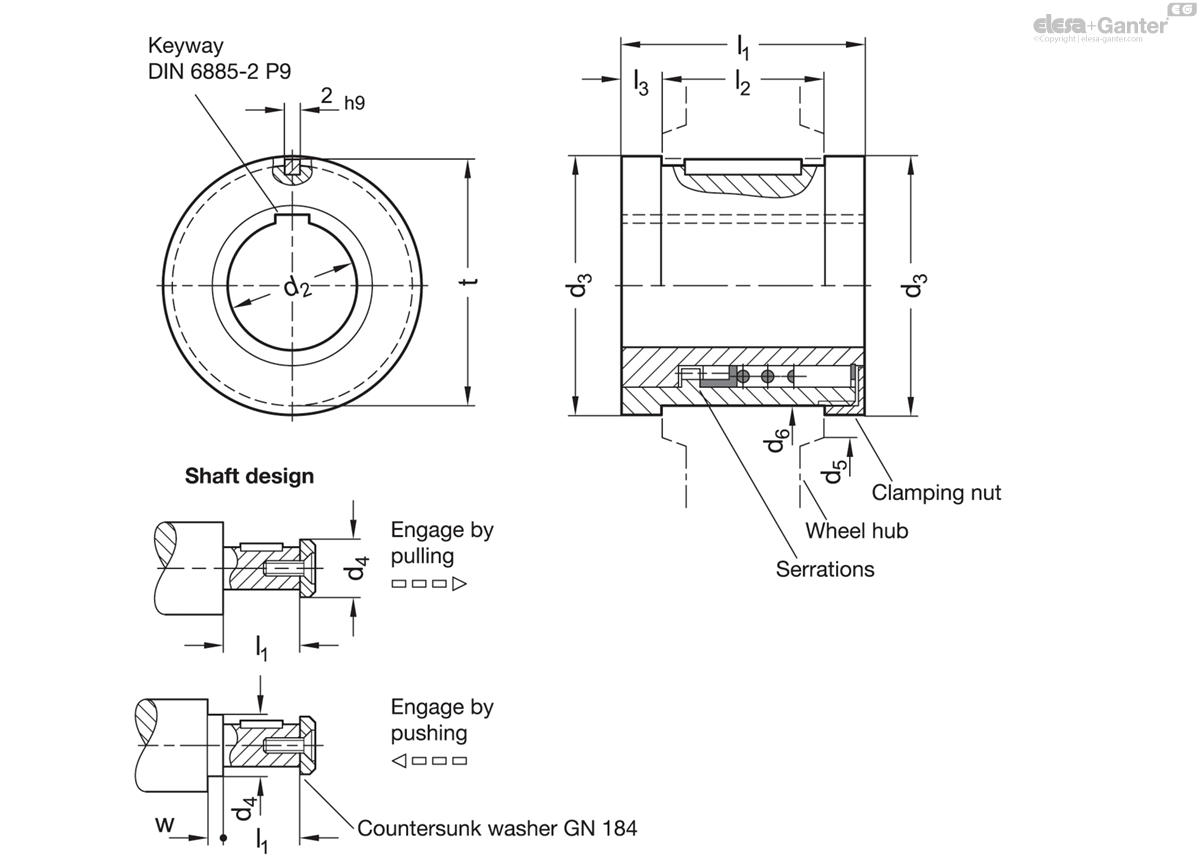

000.4 - 2 - K 14 drawing

Steel

  • Nitrided
  • Bearing surface ground resp. PTFE coated

The PTFE coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected.

An oil hole is provided which in the completely assembled safety handwheel connects with the handwheel hub.

The coupling attachment is axially secured in the handwheel hub by a clamp nut.
