GN 900.5 Rotary plates
for adjustable slide units GN 900
Eta: 1-2 weeks All sizes and variants of GN 900.5
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 900.5-50-67
- b Size of
the slide - 50
- l1
- 67
- d
- M 3
- h1
- 28
- h2
- 14
- h3
- 7
- l2
- 58
- s
- 9
- 209
Aluminium
anodized, natural colour
Socket head screws DIN 912
Stainless Steel

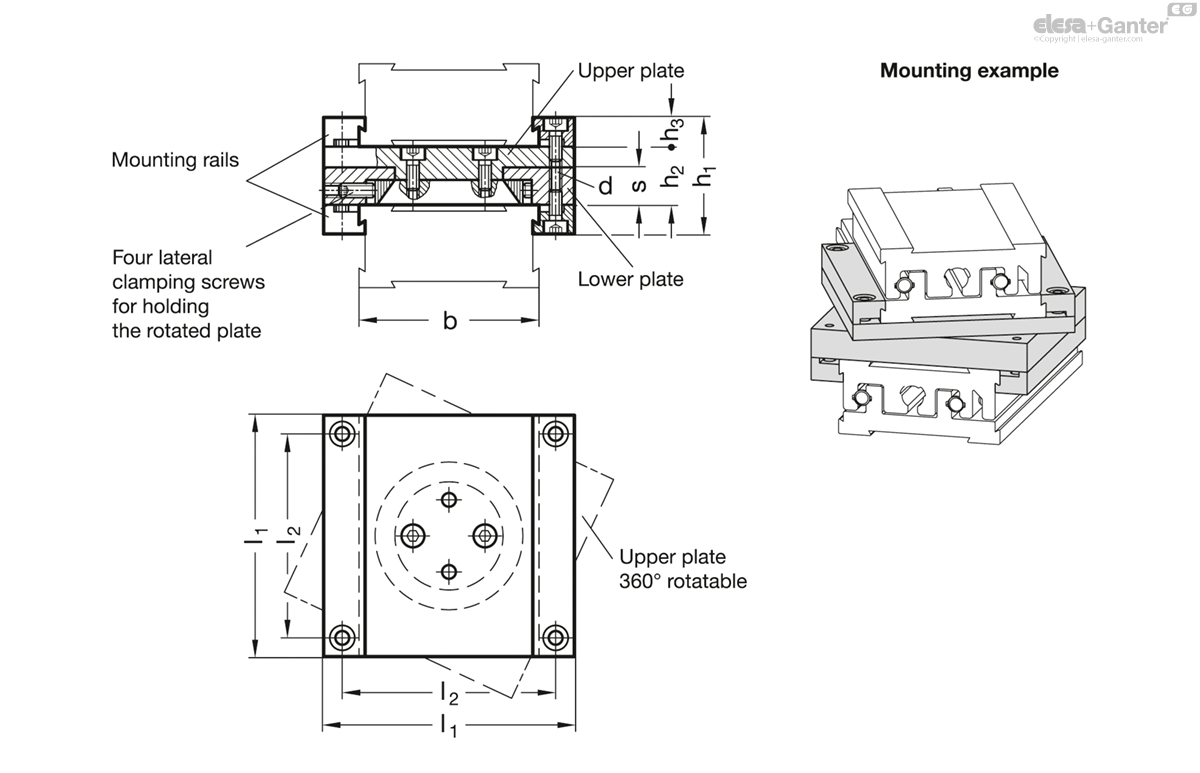

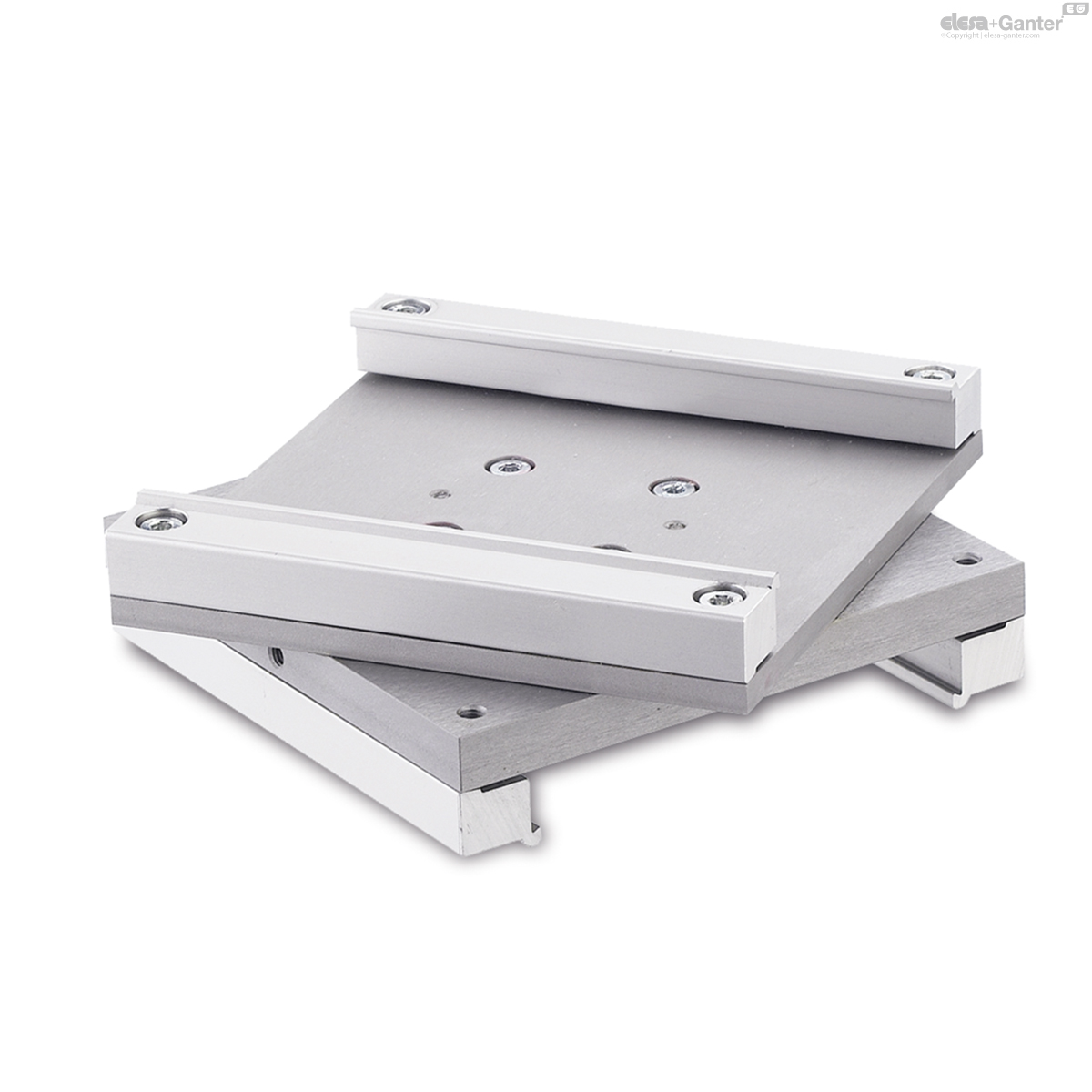

Rotary plates GN 900.5 allow rotation of one of the adjustable slide units at an off-set angle to the other. This possibility offers an additional axis configuration.
The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.
All parts required are included.
