6371-61-13,5 DIN 6371 Captive C-Washers

6371-61-13,5

DIN 6371 Captive C-Washers

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6371

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6371-61-13,5
d1
61
b
13.5
d2
11
d3
12
l1
29.6
l2
22
l3
45
l4
29
s -0.5
11.8
Screw DIN 923
M 8 x 12
189

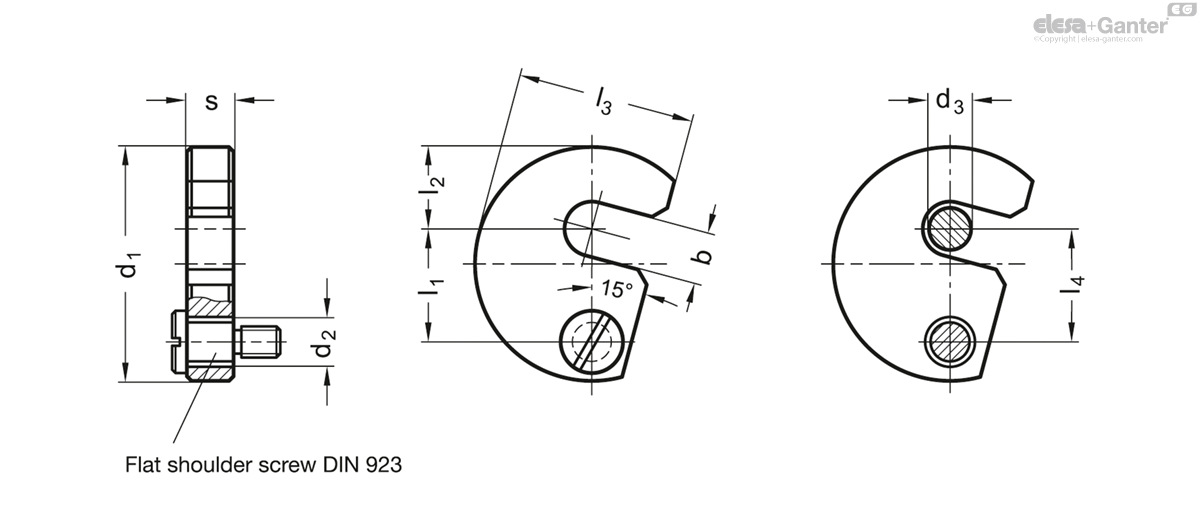

6371-61-13,5 drawing

Steel

  • tempered
  • blackened

Flat shoulder screw DIN 923

blackened

Captive C-Washers DIN 6371 transfer the clamping force of screw or nut to the workpiece. After releasing the thread they can be swung away from the clamping point. They are hinged and thus can never be mislaid.

Flat shoulder screws DIN 923 are included.
