564-25-160 GN 564 Cabinet U-Handles

564-25-160

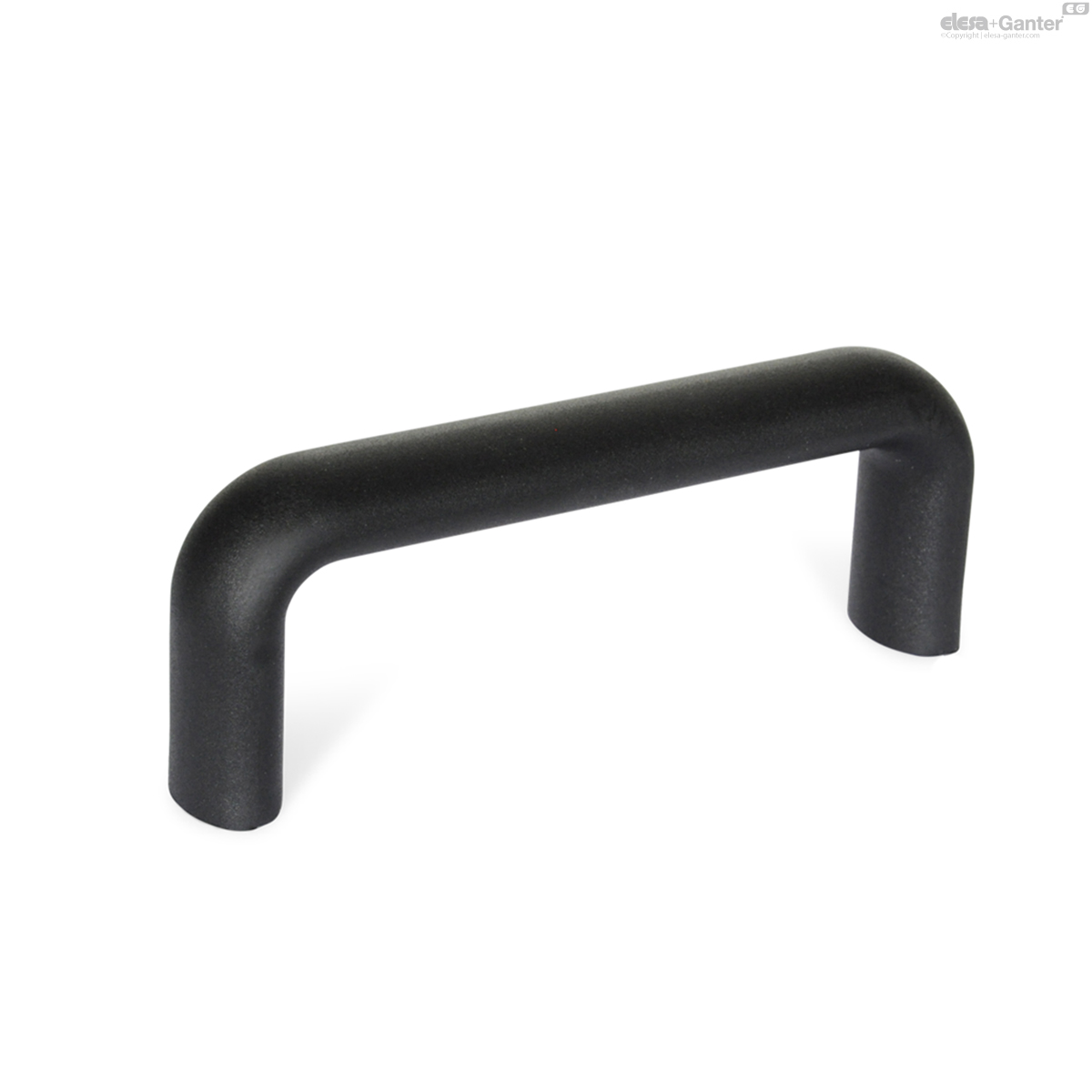

GN 564 Cabinet U-Handles

with Elastic TPU Sheating, Handle Core Stainless Steel or Aluminum
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SOFT__.png

Eta: 1-2 weeks All sizes and variants of GN 564

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 564-25-160
b
25
Length l ±0.25
160
a
16
d1
M 6
d2
10
h
54
r
9
t min.
10
199
564-25-160 drawing

Sheathing

Thermoplastic polyurethane (TPU)

  • Black, textured matte finish
  • Elastic, 65±5 Shore A
  • Operating temperature up to 70 °C
  • Abrasion-resistant
  • Insulating
  • Weather-proof

Handle core

  • Stainless steel AISI 303
  • Round (for size b = 25)
  • Aluminum
  • Elliptical (for size b = 35)

The shock absorbing casing of the GN 564 cabinet U-handles made of thermoplastic polyurethane (TPU) offers protection from injuries, while its elliptical shape gives it a nice hold.

The stainless steel core and the aluminum core guarantee a high basic durability of the handle.

  • Other colors
