GN 114.3 Locking Pins
Eta: 1-2 weeks All sizes and variants of GN 114.3
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 114.3-10-40
- d1 -0.1
- 10
- l1 +0.4
- 40
- a
- 3.3
- b
- 1
- d2
- 11.7 +1
- d3
- 9.9
- d4
- 18
- d5
- 34
- l2
- 9.8
- l3
- 26
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 47
- 35
Knob / Push button / Slide
- Plastic
- Temperature resistant up to 80 °C
- Knob: black-gray
- Push button: red
Pin
Stainless steel AISI 303
Pawl
Stainless Steel AISI 304 (sheet metal)
Pressure spring
Stainless steel AISI 301

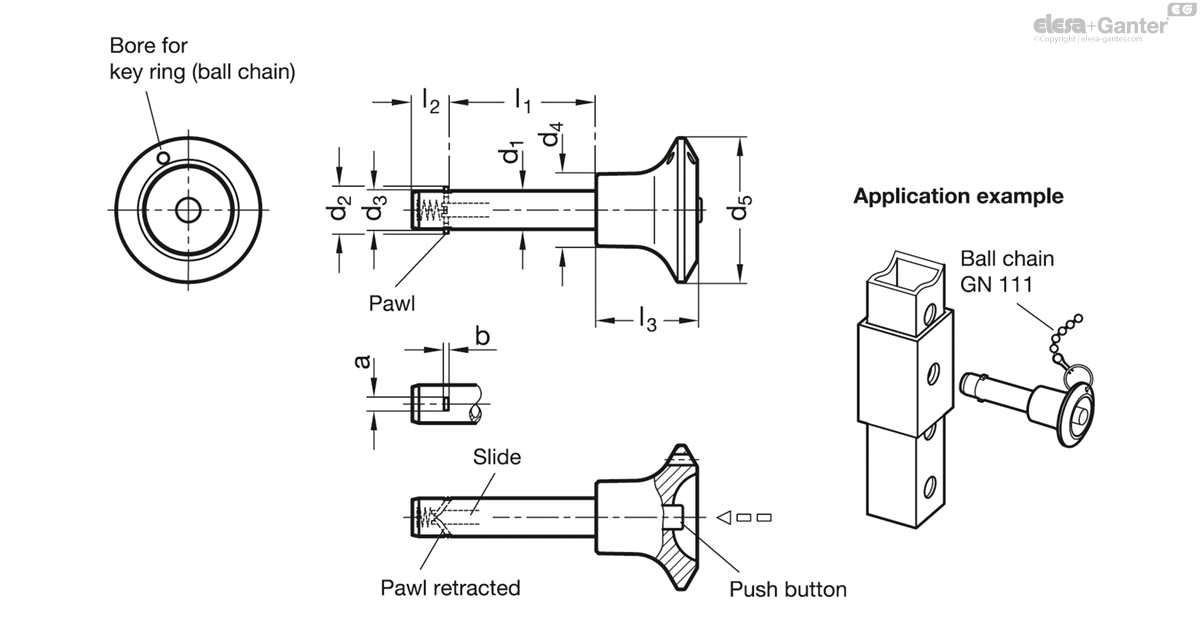

Locking pins with axial lock GN 114.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.
The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
