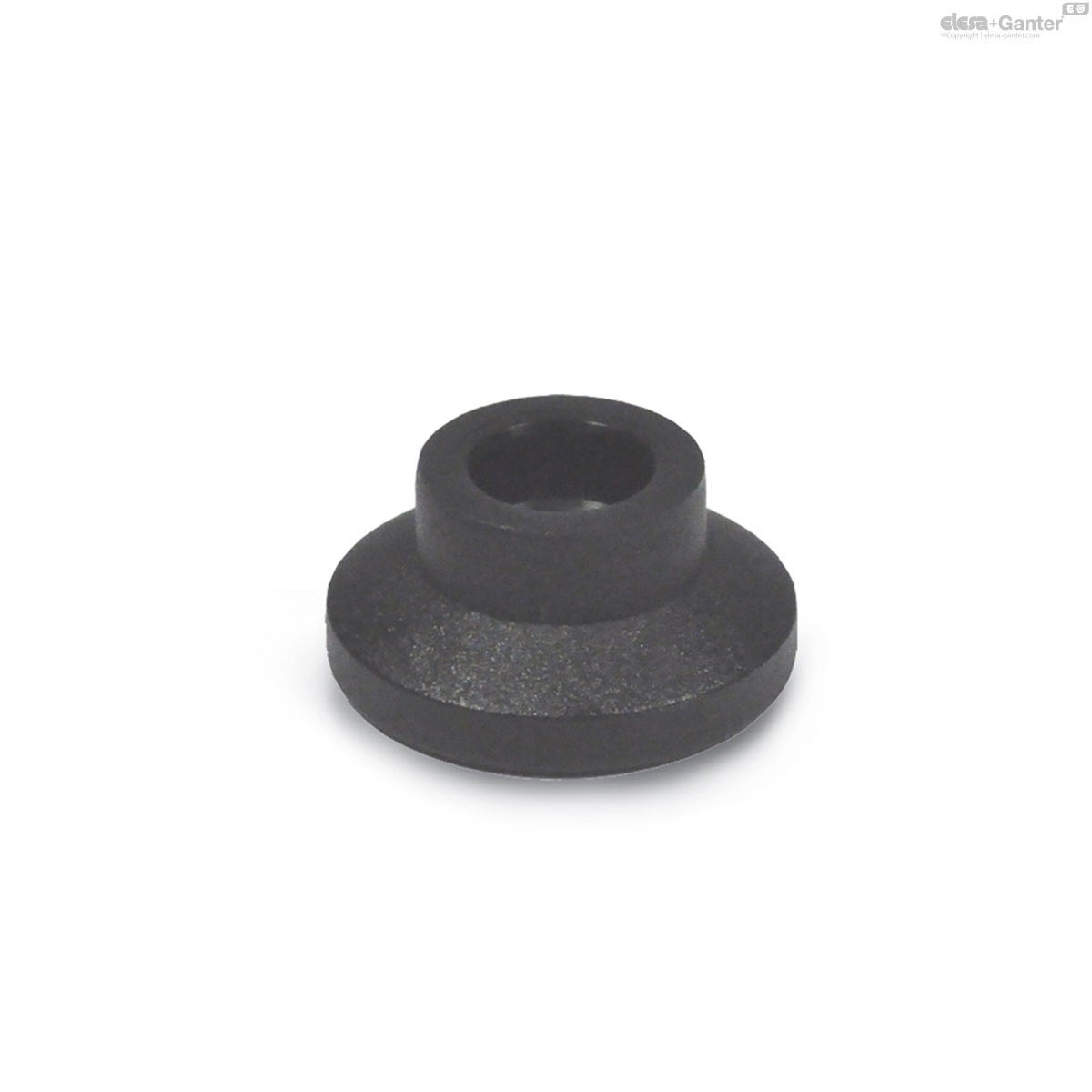

631-18-7,8 GN 631 Thrust pads

631-18-7,8

GN 631 Thrust pads

for Grub screws GN 632.1 / GN 632.5
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 631

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 631-18-7,8
d1
18
d2
7.8
d3
10.8
e ≈
3.8
h1
9.2
h2
2.5
Grub screw GN 632.1/ GN 632.5
M 10
2

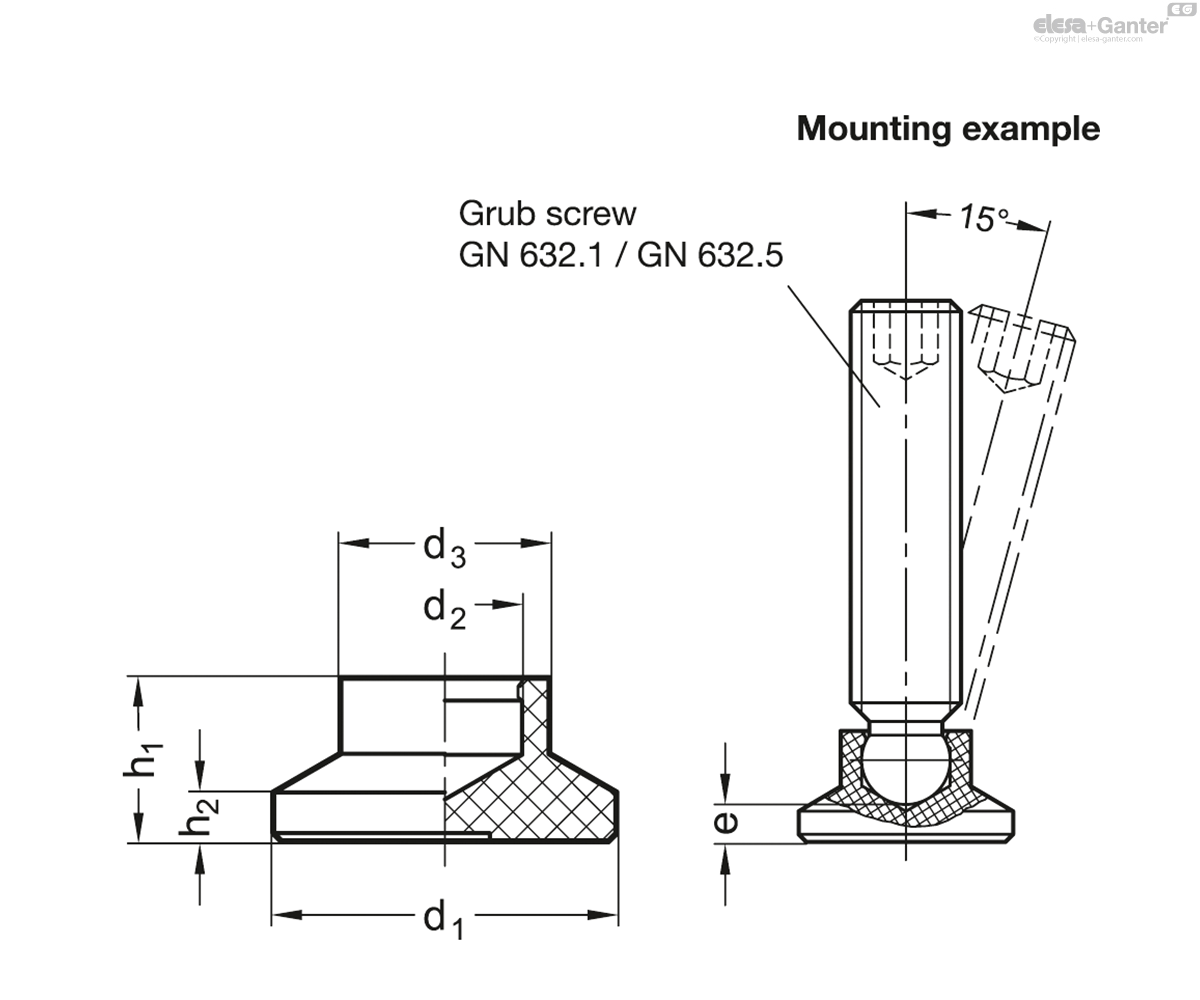

631-18-7,8 drawing

Plastic

Technopolymer (Polyacetal POM)

  • temperature resistant up to 80 °C
  • black, matt

Thrust pads GN 631 with ball point grub screw GN 632.1  / GN 632.5  are ideal to transmit clamping forces. They lean to uneven and unparallel surfaces. They are easy to press-on to the ball point of the grub screw by hand.
