GN 608.1 Indexing plungers
Eta: 1-2 weeks All sizes and variants of GN 608.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 608.1-8-18
- d1 Pin -0.02/-0.05 Bore H7
- 8
- l1
- 18
- b1
- 46
- b2
- 20
- d2 -0.02/-0.1
- 12
- d3
- 31
- d4
- 5.3
- d5
- 10.4
- k
- 34
- l2
- 54
- l3 -0.15
- 2.5
- l4
- 5.5
- l5
- 8
- Spring load in N ≈
initial - 13
- Spring load in N ≈
end - 26
- Axial load in N
- 500
- 63
Guide
Zinc die casting
zinc plated, blue passivated
Knob
Plastic (Polyamide PA)
- black, matt
- not removable
Pin
Steel, hardened
Single components Steel / Brass

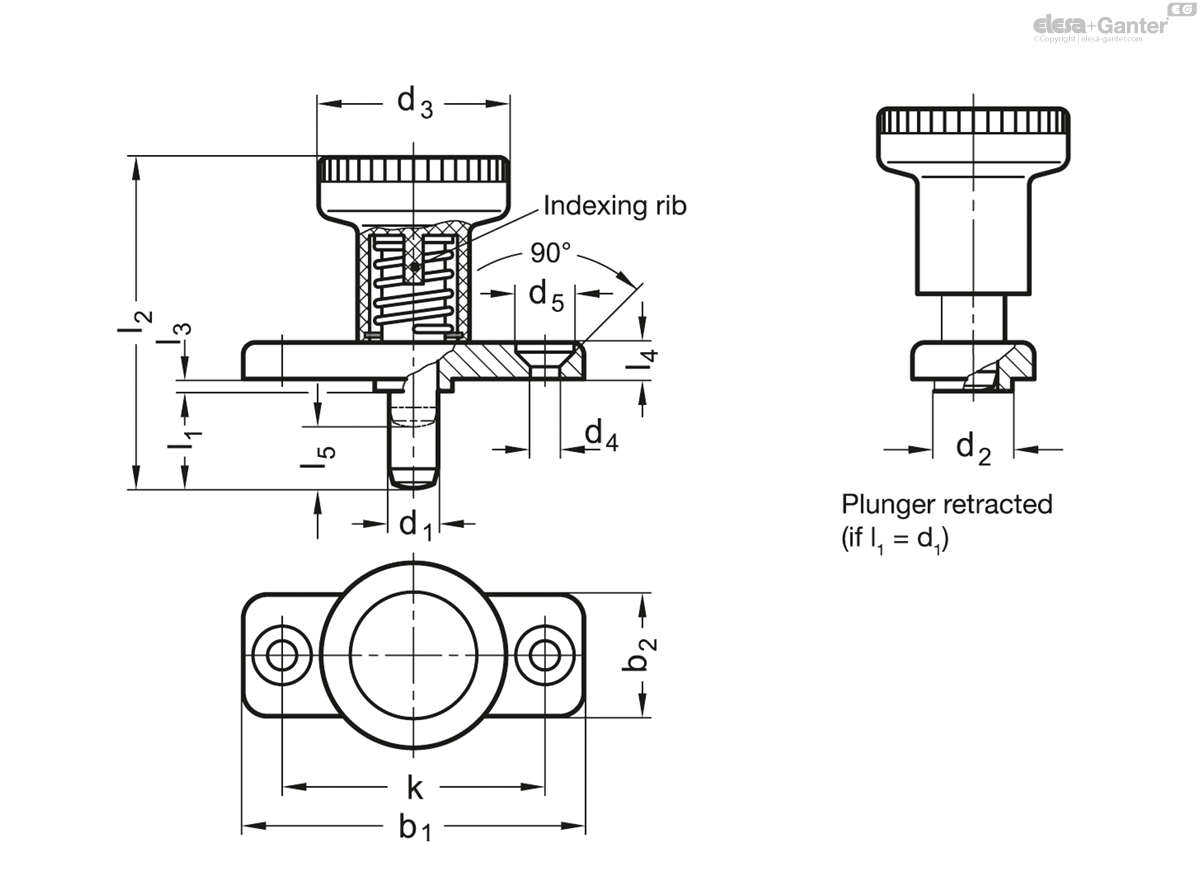

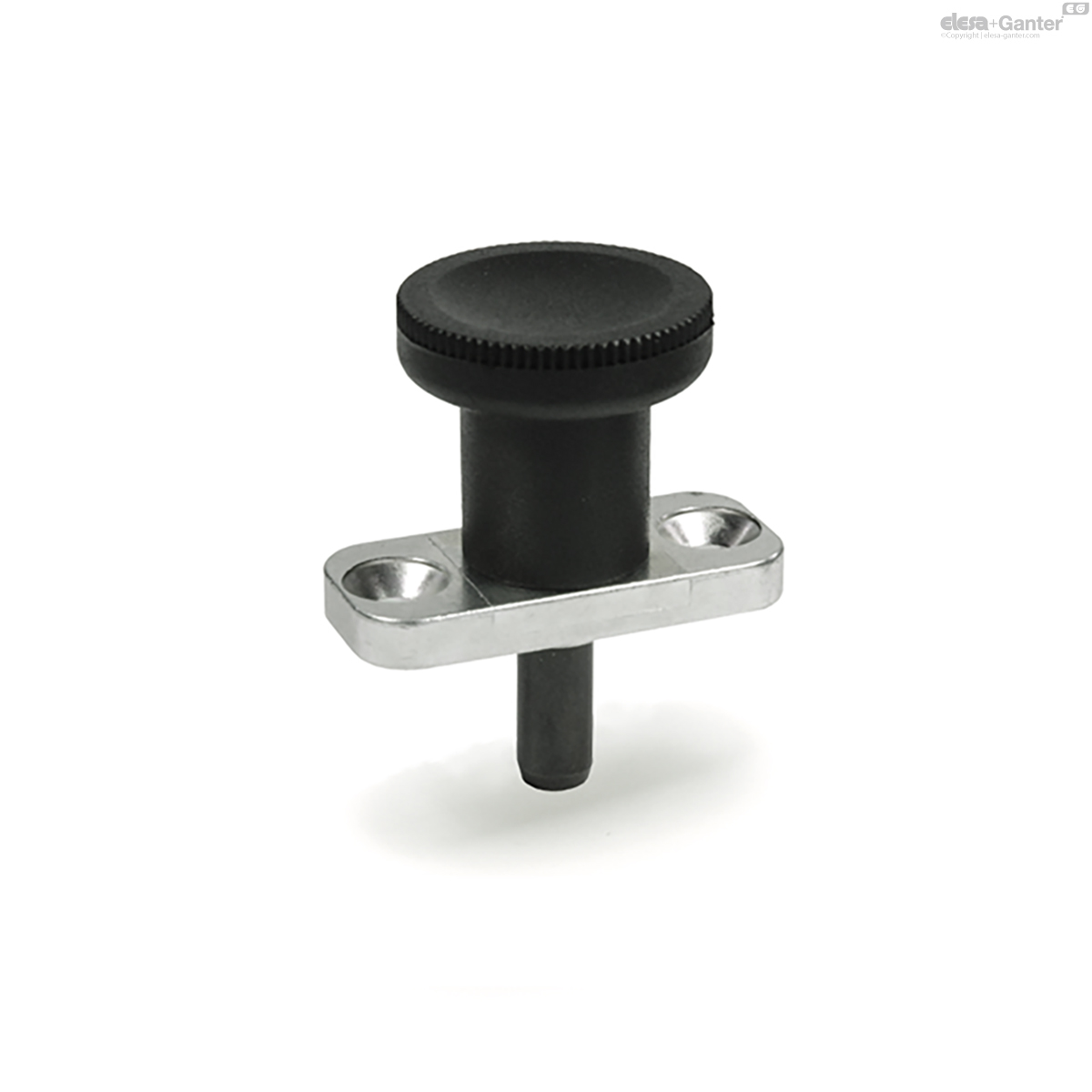

Indexing plungers GN 608.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Indexing plungers GN 608.1 are distinguished for their small dimensions. The locking tab is integrated into the knob thus giving reliable operation at all times.
