183-40-12,5 GN 183 C-Washers

183-40-12,5

GN 183 C-Washers

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 183

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 183-40-12,5
d1
40
b
12.5
d2
30
s
9
t
1.8
For threaded bolt
M 12
57

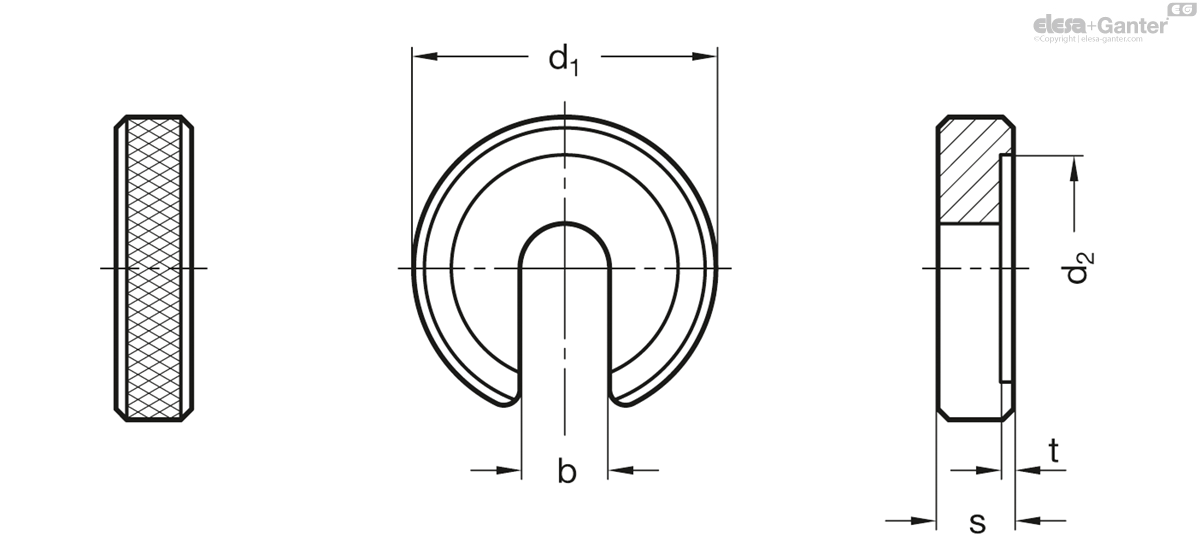

183-40-12,5 drawing

Steel

  • Case hardened
  • blackened

C-Washers GN 183 maybe installed without the removal of the nut from the stud.

In terms of dimensions they are almost identical to DIN 6372 C-Washers.
