GN 900.6 Rotary tables
Eta: 1-2 weeks All sizes and variants of GN 900.6
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue

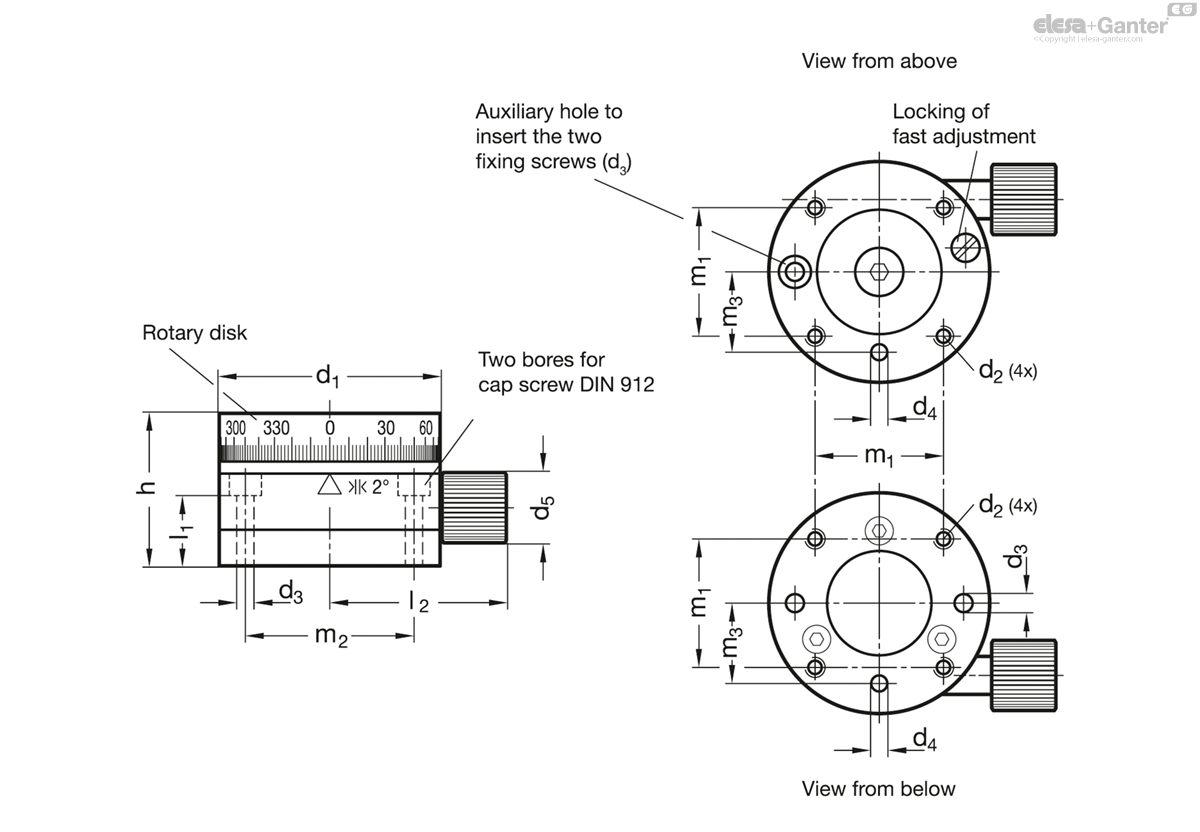

- GN 900.6-55
- d1 h7
- 55
- d2
- M 5 - 8
- d3 Screw
- M 4
- d4 H7
- 4 - 10
- d5
- 17
- h
- 38
- l1
- 17.5
- l2
- 44
- m1
- 32
- m2
- 42
- m3 ±0.02
- 20
- useable forH
mounting platesH
GN 900.4H
Size - 50
- 662
Rotary disc
Stainless Steel AISI 303
all other parts
Steel (some zinc plated)
ad/ or Brass
Control knob
Aluminium
black anodized

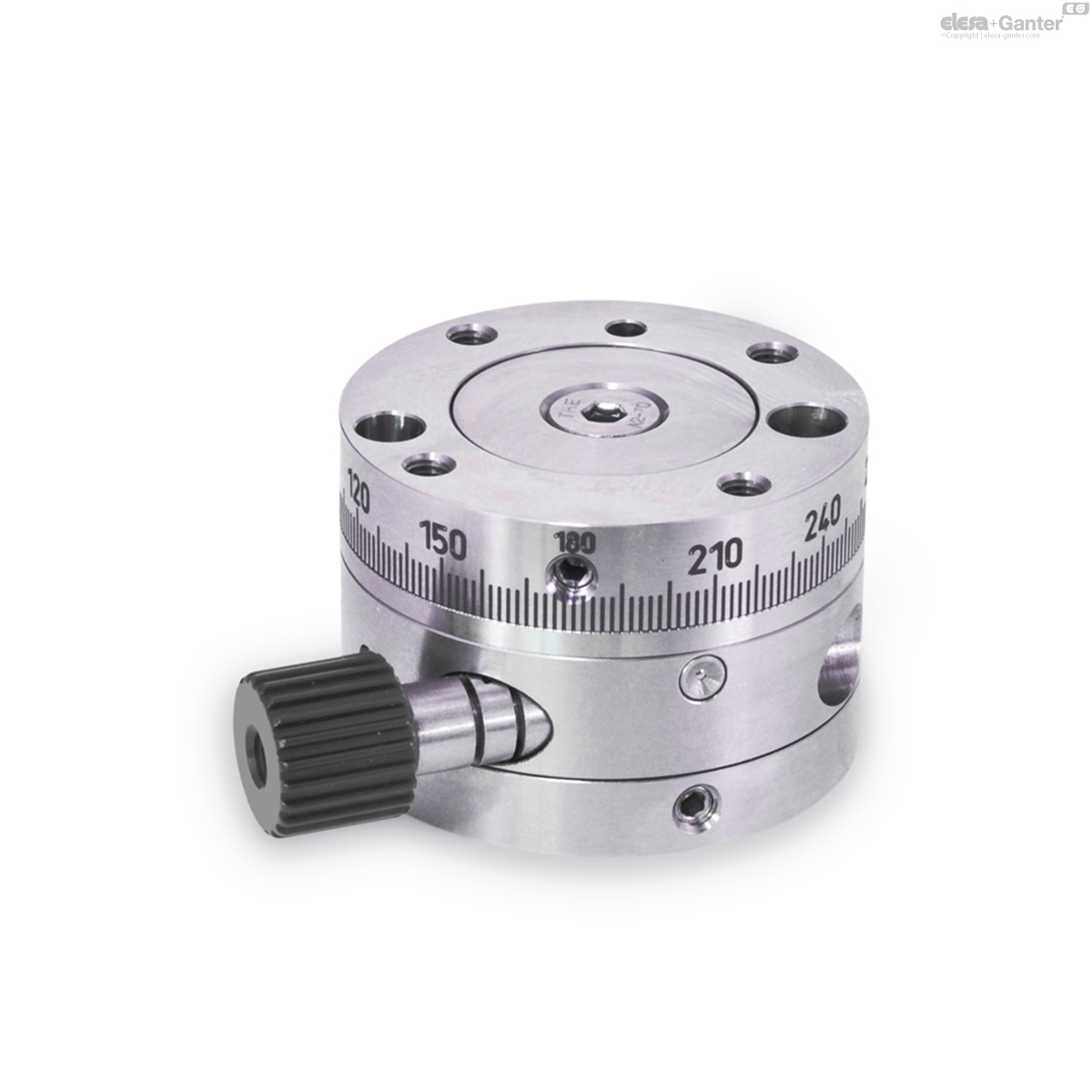

Rotary tables GN 900.6 is a turning unit for manual operation. To get the turning movement we use a high quality worm gear.
The rotary table is also fitted with a fastadjustment and for this purpose a grub screw on the side of the rotary disc has to be released. In addition the rotary disc can also be clamped via an easily accessible grub screw. In both cases internal conically shaped arresting components come into use.
- Adjustable slide units GN 900
- Mounting plate GN 900.4 (for clamping to an adjustable slide unit)
| d1 | Rotating range | Concentricity tolerance | circular runout tolerance | max. entry torque MD | max. load capacity od rotary disc unclamped | max. load capactiy of rotary disc clamped MK | F max. in Newton |
| 55 | 0° | ± 0.02 | ± 0.02 | 1.5 Nm | 5 Nm | 10 Nm | 50 |
| 80 | 0° | ± 0.03 | ± 0.03 | 2.5 Nm | 5 Nm | 10 Nm | 100 |
