608-8-18 GN 608 Indexing plungers

608-8-18

GN 608 Indexing plungers

without rest position
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 608

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 608-8-18
d1 Pin -0.02/-0.05 Bore H7
8
l1
18
b1
46
b2
20
d2 -0.02/-0.1
12
d3
31
d4
5.3
d5
10.4
k
34
l2
54
l3 -0.15
2.5
l4
4.5
l5
8
Spring load in N ≈
initial
13
Spring load in N ≈
end
26
Axial load in N
500
63

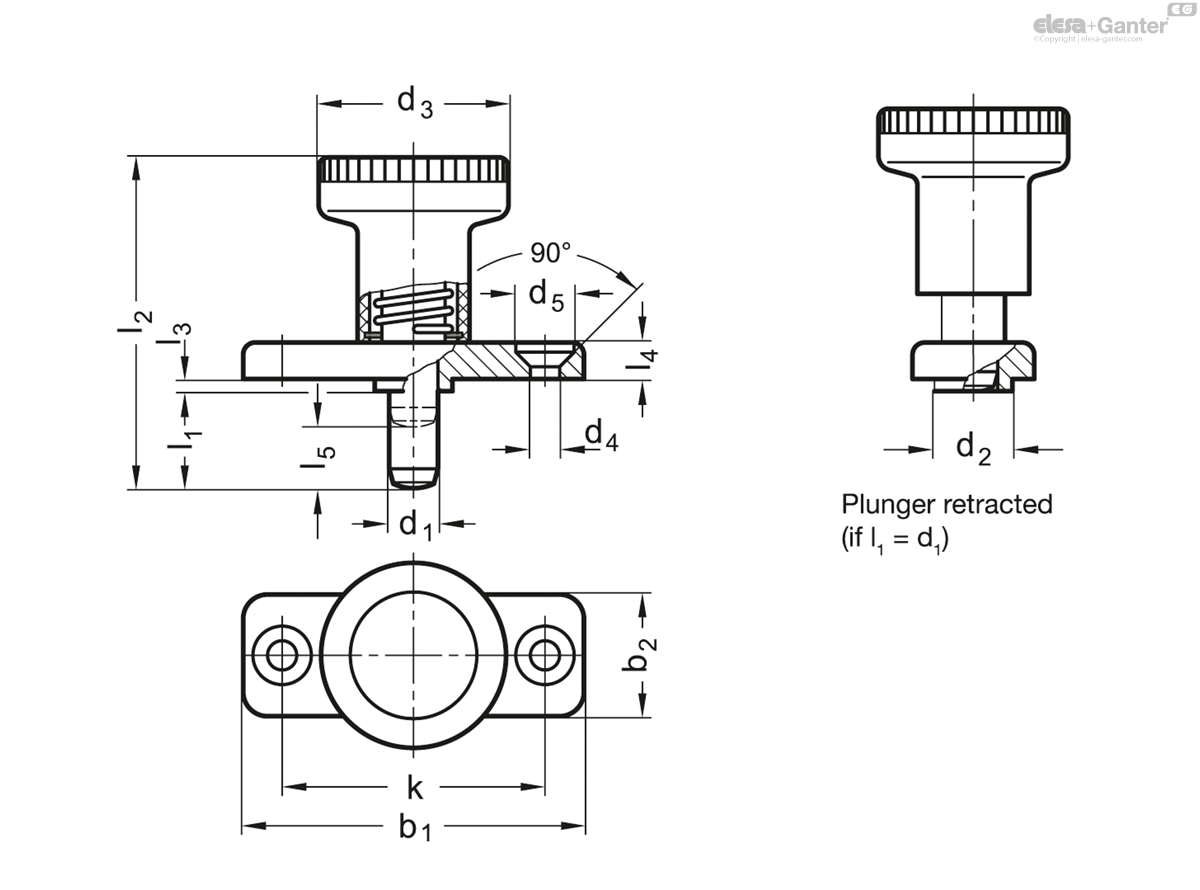

608-8-18 drawing

Guide

Zinc die casting

zinc plated, blue passivated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Pin

Steel, hardened

Single components Steel / Brass

Indexing plungers GN 608 are distinguished for their small dimensions.
