250-10,5 GN 250 Indent blocks

250-10,5 GN 250 Indent blocks

for spring plungers
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 250-10,5
h
10.5
b ±0.1
4.5
for GN 614
Size
8
d*
6.5
w*
1.9
s min.*
1
for GN 615 / GN 615.2 / GN 615.3
Size
M 10
d**
6
w**
2
s min.**
1
weight
11

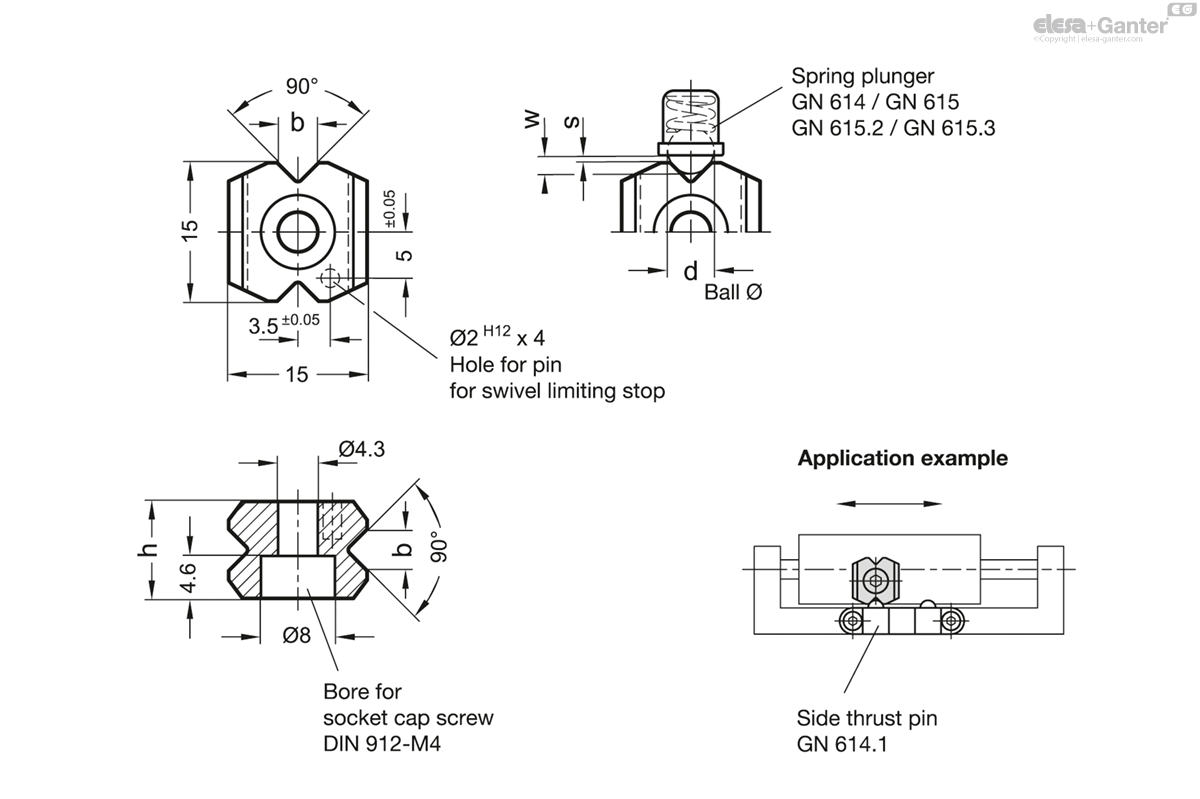

250-10,5 drawing
* for GN 614 | ** for GN 615 / GN 615.2 / GN 615.3

Sintered Steel

  • case hardened
  • blank

Indent blocks GN 250 are used together with spring plungers for detent or positioning of sliders, flaps and similar applications.
