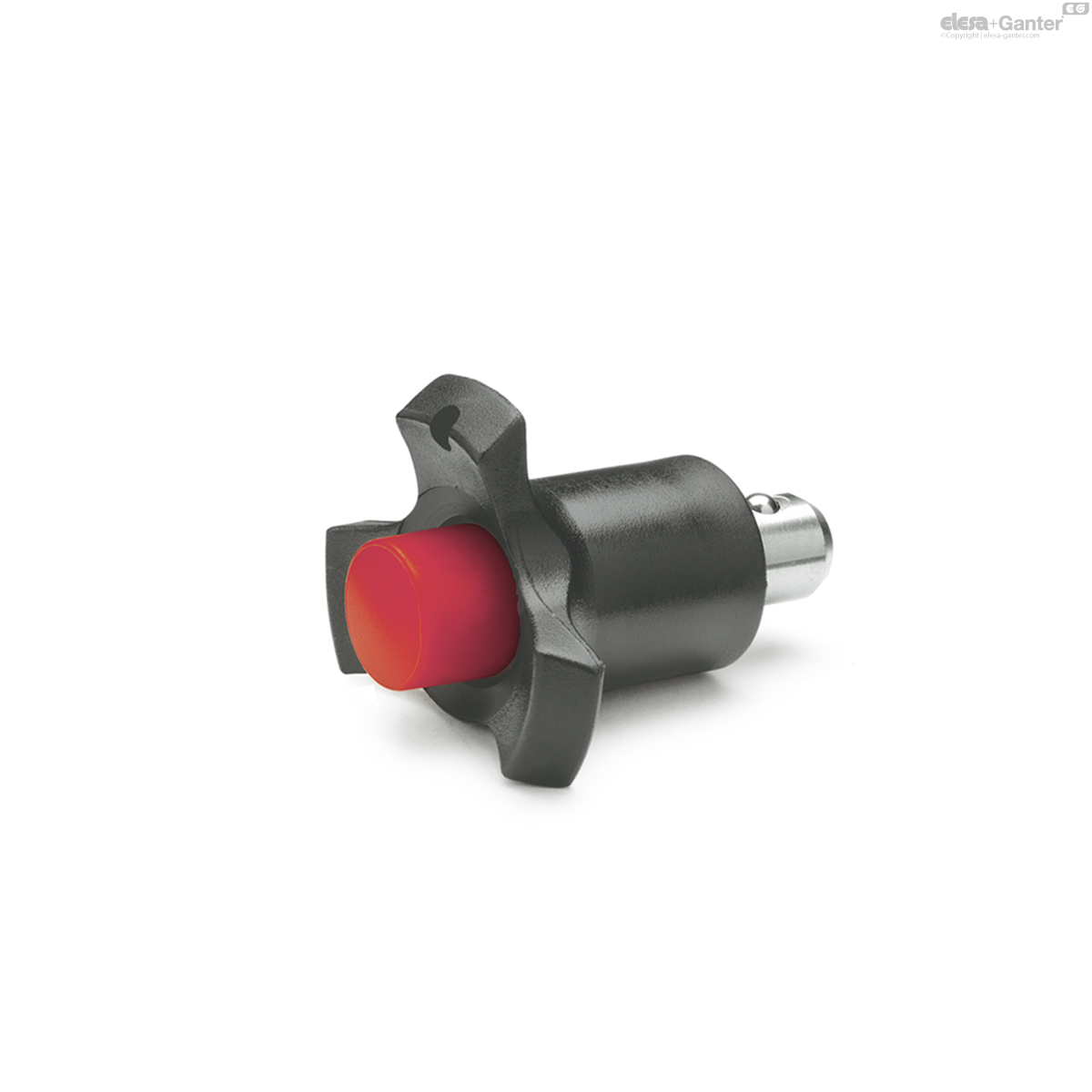

113.1-8-5

Stainless Steel-Ball lock pins GN 113.1 are used for rapid clamping and, at the same time, play-free clamping of thin components in particular where frequent clamping and releasing is required. A typical application is the alignment and clamping of sheet metal during a welding process.

By depressing the spring-loaded push button the pin advances by the length l₂ and at the same time frees the two balls.
