873-28

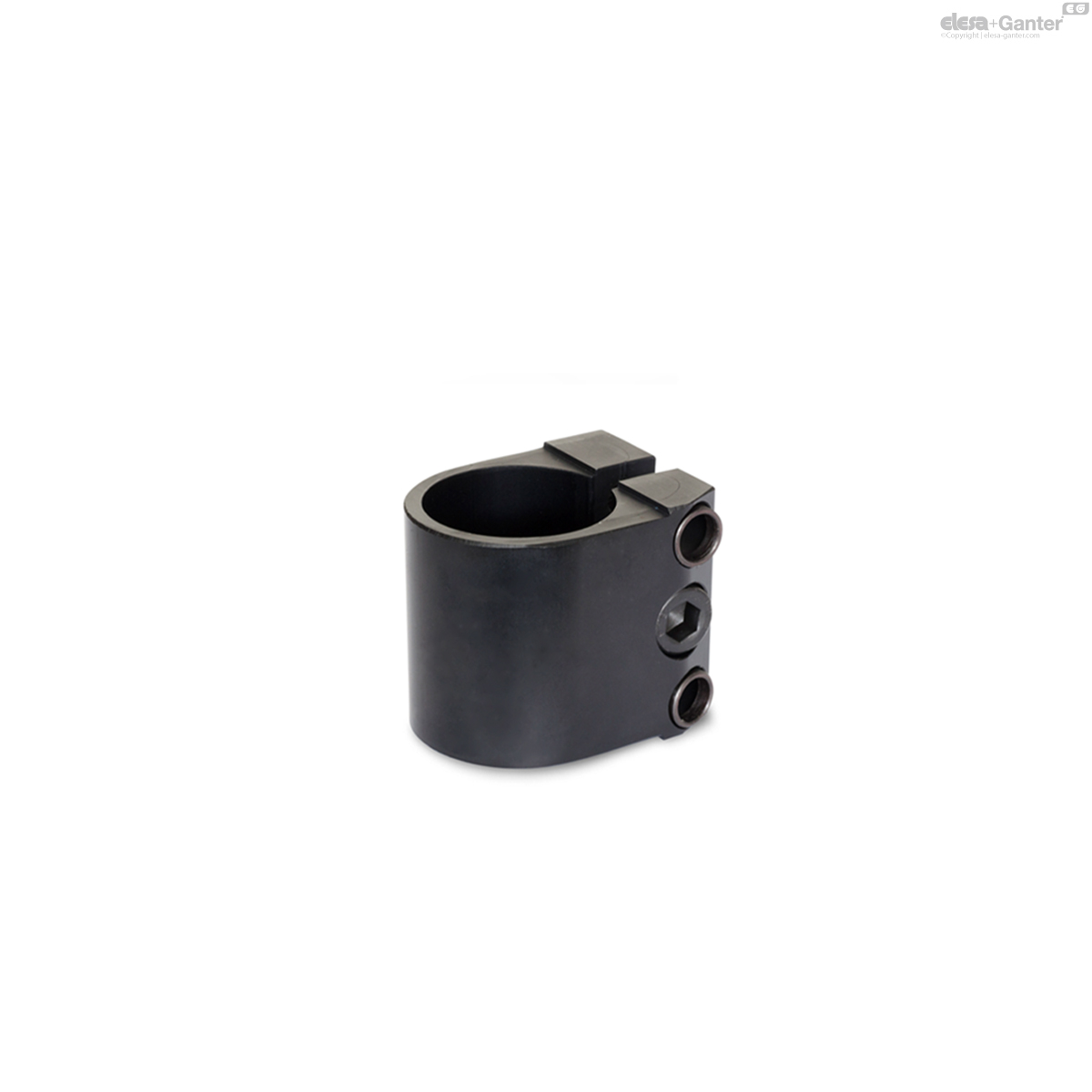

GN 873 Clamp mounting bracket accessories
Eta: 1-2 weeks All sizes and variants of GN 873
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

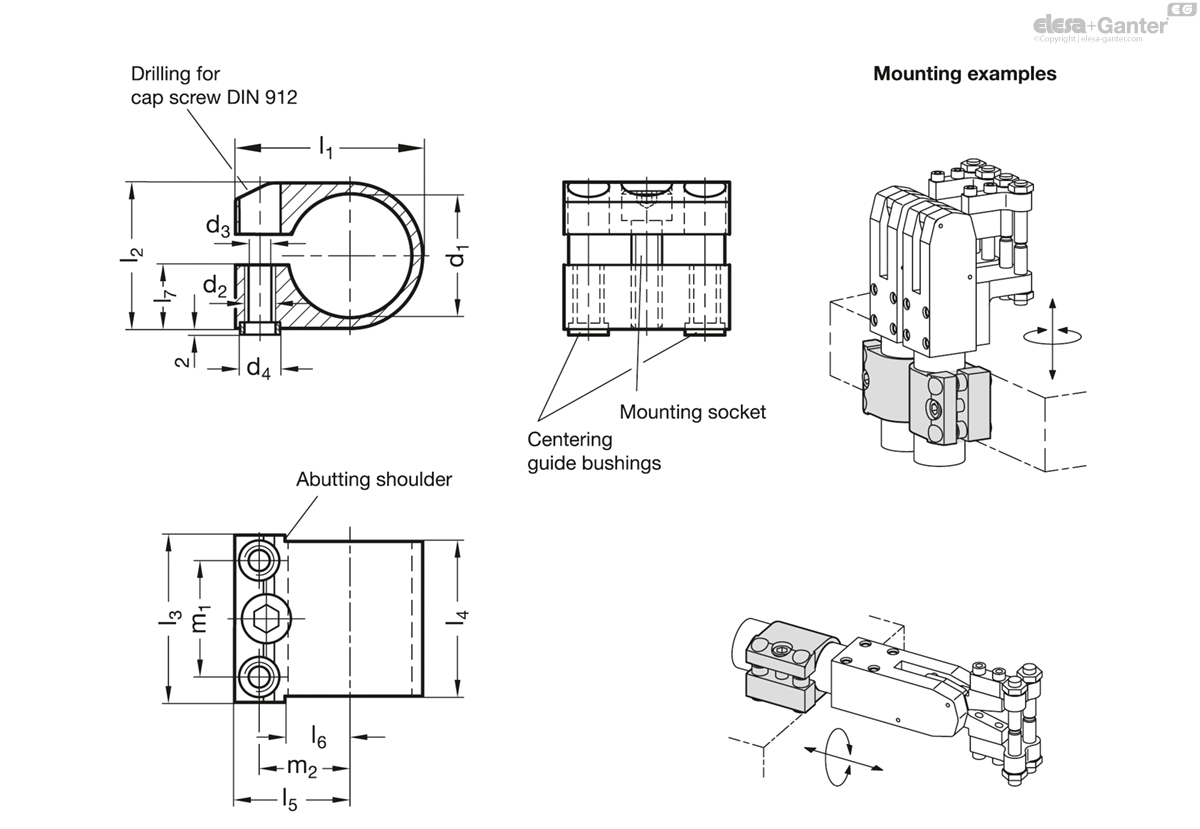

Technical datasheet
Technical data
- Catalogue
- GN 873-28
- For power clamps
Size - 20
- d1
- 28
- d2
- M 8
- d3
- 6.5
- d4 H8/h6
- 11
- l1
- 51.35
- l2
- 38
- l3
- 39
- l4
- 36
- l5
- 35
- l6
- 16
- l7
- 16
- m1
- 26
- m2
- 25.85
- 100
Aluminum
Black anodized
Centering guide bushings
Steel, blackened
GN 873 clamp mounting bracket accessories greatly increase the mounting possibilities and, with that, the field of applications for pneumatic fastening clamps is vastly increased.
The abutting shoulder can be used for precise positioning of the pneumatic fastening clamps thus allowing a problem free exchange of the latter.
The use of the two centering guide bushing accessories ensures an exact and stable installation of the clamp mounting bracket accessories as well as the pneumatic fastening clamps.
Other clamp mounting bracket accessories for the sizes d1 = 40 (piston Ø 32) and d1 = 50 (piston Ø 40) are shown under the tube clamp connector range.
Centering guide bushing accessories are included.
