613.1-5 GN 613.1 Mounting Tools

613.1-5

GN 613.1 Mounting Tools

for Indexing Plungers GN 613 and Spring Bolts GN 313, Steel
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 613.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 613.1-5
b
5
9

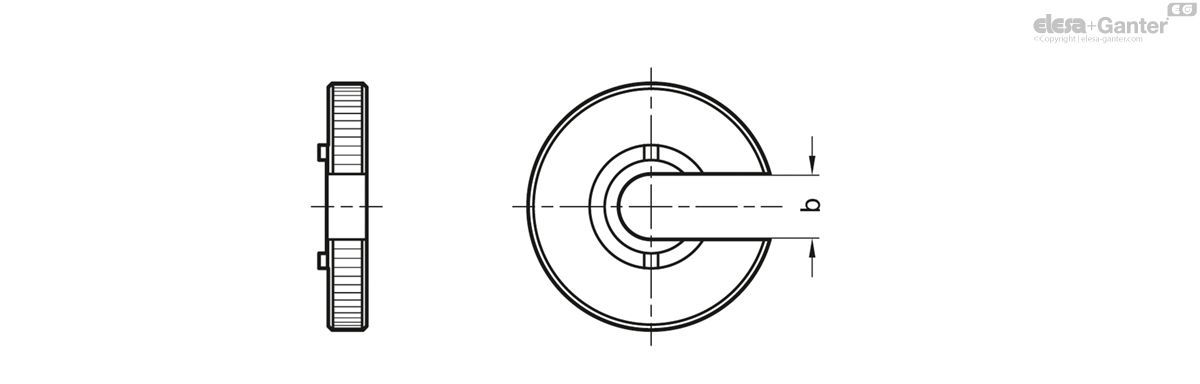

613.1-5 drawing

Steel

Blackened

Mounting Tools GN 613.1 are used in the assembly of indexing plungers GN 613 and spring bolts GN 313 .This shortens the assembly time and makes it easier to hold the mechanism in place while fixing the lock nut.

The screw driver is inserted in the side between the knob and guide, where it engages the slot in the guide.
