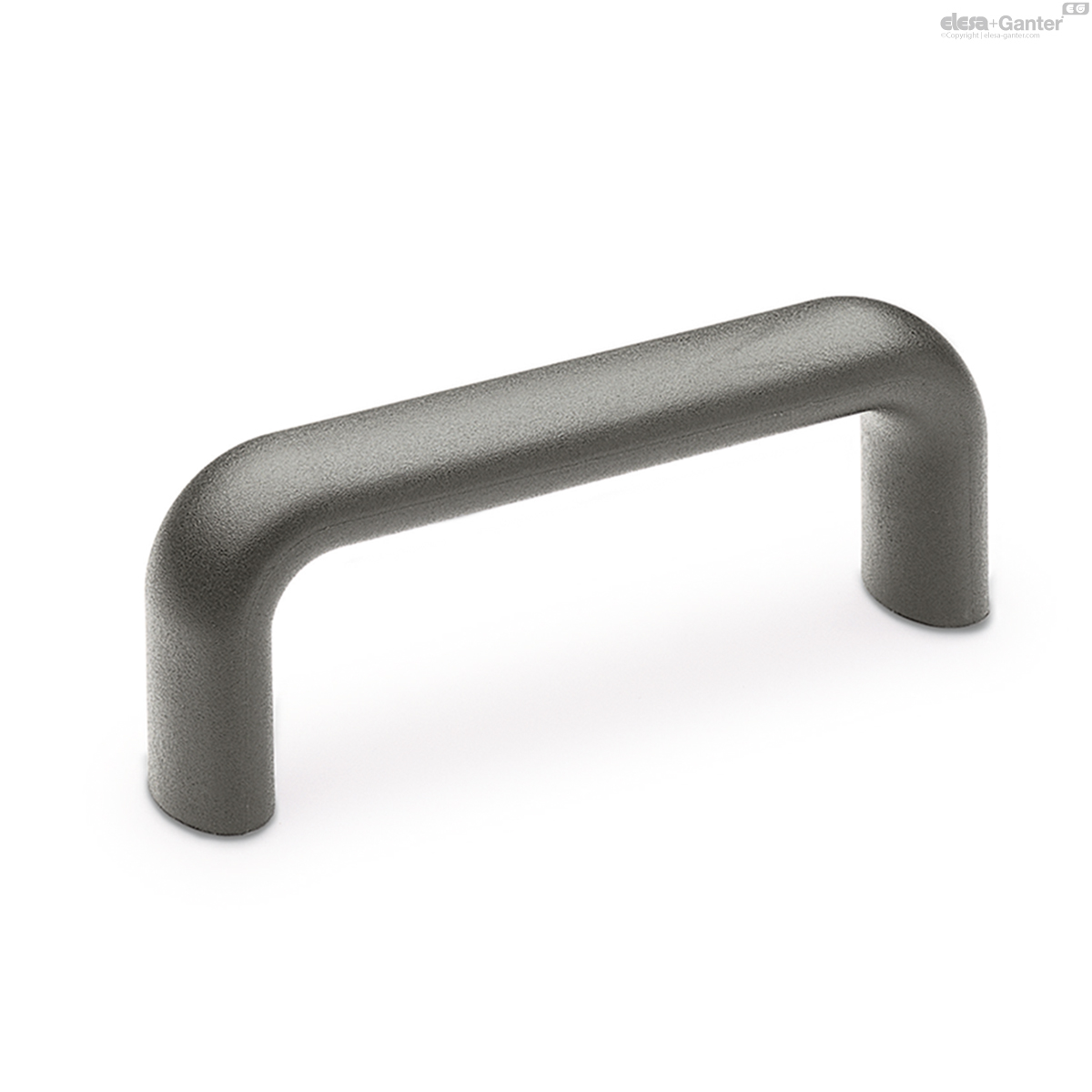

M.643/200 B-M8 HT
M.643 HT Bridge handles
Technopolymer with high thermic resistance
In stock All sizes and variants of M.643 HT
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 37551
- L
- 196
- f
- 179±1
- d6H
- M8
- h
- 57
- B
- 16
- l
- 27
- p
- 13
- F1
[N] - 1900
- F2
[N] - 2600
- L1
[J] - 11
- L2
[J] - 17
- 148
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, resistant to high temperatures, grey-black colour, matte finish.
Standard execution
Brass bosses, threaded blind holes.
Maximum working temperature
200°C.
Technical Data
Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
