M.243/200
M.243 Bridge handles
Duroplast
In stock All sizes and variants of M.243
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

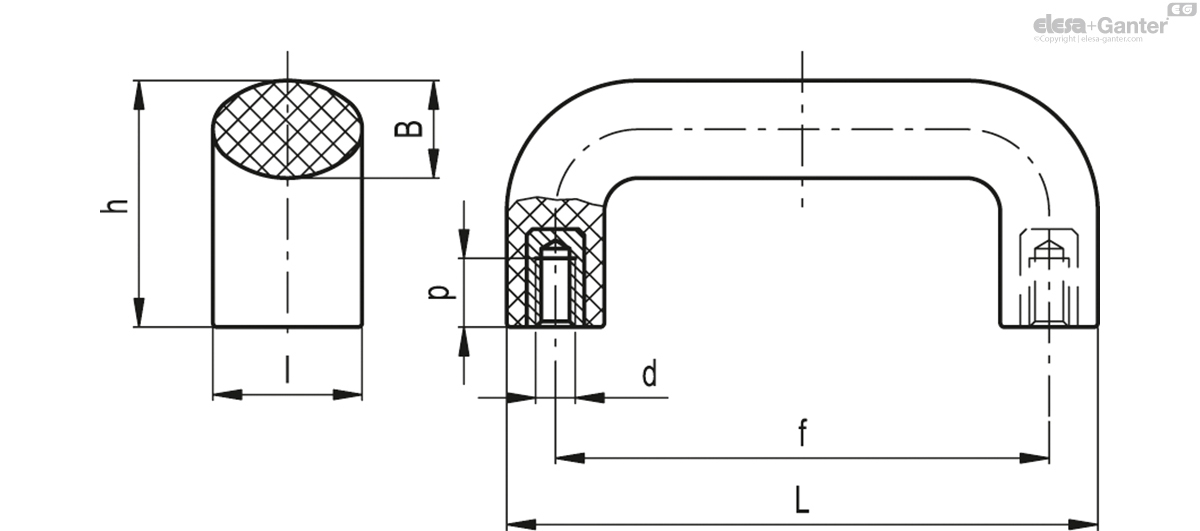

Technical datasheet
Technical data
- Catalogue
- 36701
- L
- 198
- f
- 179±1
- d6H
- M8
- h
- 62
- B
- 20
- l
- 30
- p
- 13
- F1
[N] - 3000
- F2
[N] - 2000
- L1
[J] - 7
- L2
[J] - 8
- 206
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard execution
Brass bosses, threaded blind holes.
Technical Data
Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
