LBR.54/130 A-14 LBR-A With black-oxide steel boss, plain hole

LBR.54/130 A-14

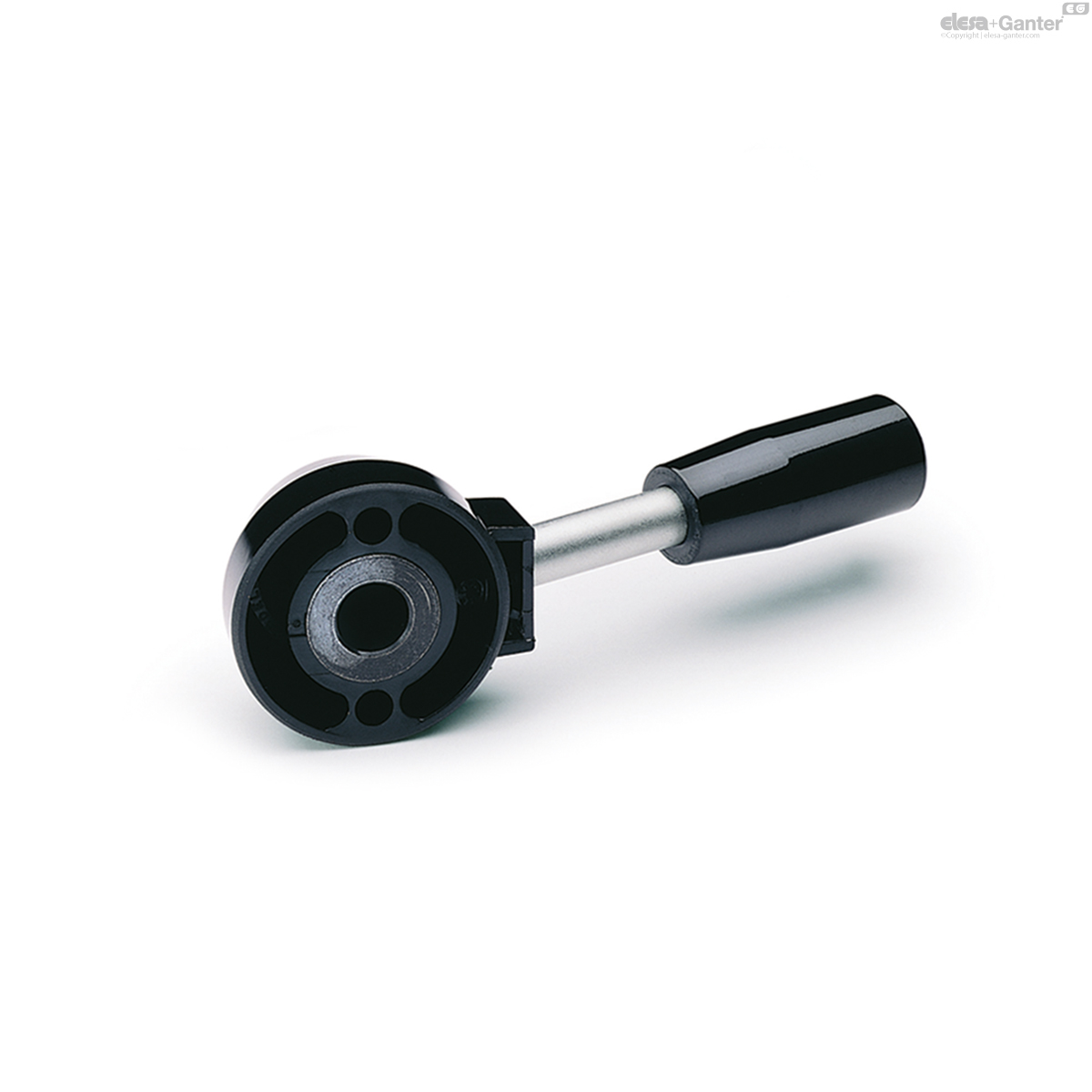

LBR-A With black-oxide steel boss, plain hole

arranged for clicking operation, technopolymer
  • PA
  • RoHS
  • PF
  • g11020
  • ELE OD
  • IF79

In stock All sizes and variants of LBR.

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
33302
D
54
dH7
14
L
127
H
61
h
27
h1
30
d1
26
d2
31
d3
8
d3*
8
d4
12
i
39
l
34
R
20.2
c
7.3
α
20°
β
125±1°
202
LBR.54/130 A-14 drawing
LBR.54/130 A-14 drawing
* Ball diameter

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Lever arm

Matte chrome-plated steel with cylindrical handle I.280- in Duroplast.

Self-adhesive front plate

Matte anodised aluminium to be fitted after the assembly of the lever.

Standard executions

  • LBR-A: black-oxide steel boss, H7 reamed hole.
  • LBR-N: without boss, with plain hole and flat face.

LBR.45 N and LBR.54 N: flat face opposite to the arm.

LBR.75 N: flat face in correspondance of the arm.

Manoeuvre angle limitation

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.



Accessories on request

  • Axial retaining washer GN 184.
  • Ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring MS.).

Special executions on request

  • Different arm lengths and handle shapes.
  • Front plate with words, marks, symbols, graphics.
