230-22 GN 230 Shallow T-Nuts

230-22

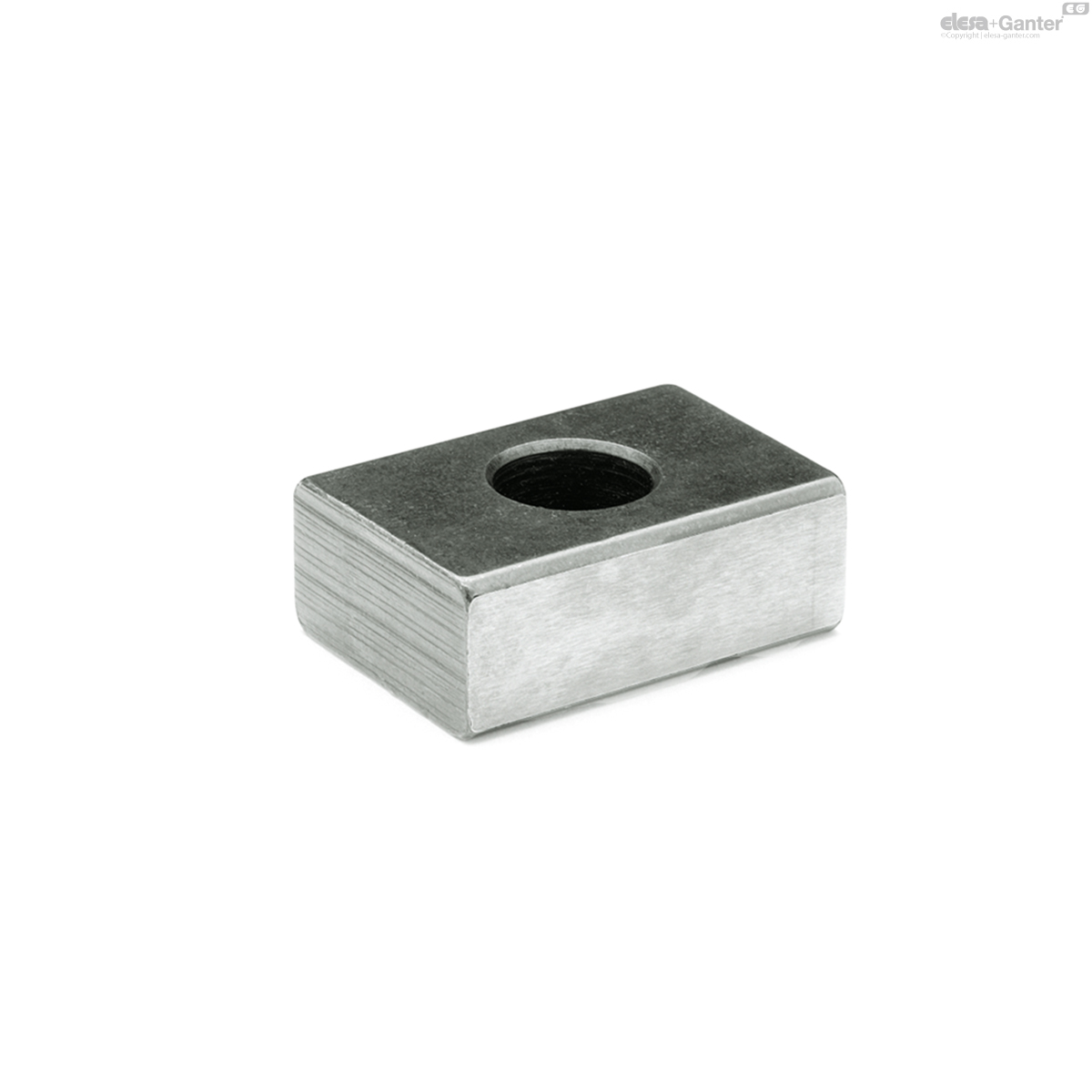

GN 230 Shallow T-Nuts

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 230

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 230-22
b h6
22
d1
6.6
d2
11
h
12
l
32
t
6.3
For screws
DIN 84
DIN 912
M6x16
59
230-22 drawing

Steel

  • case hardened
  • blackened

Shallow T-nuts GN 230 are used for aligning and positioning of jigs and fixtures on machining tables with T-slots DIN 650.

For this purpose they are inserted into the aligning slots of the jig or fixture.
