184-28

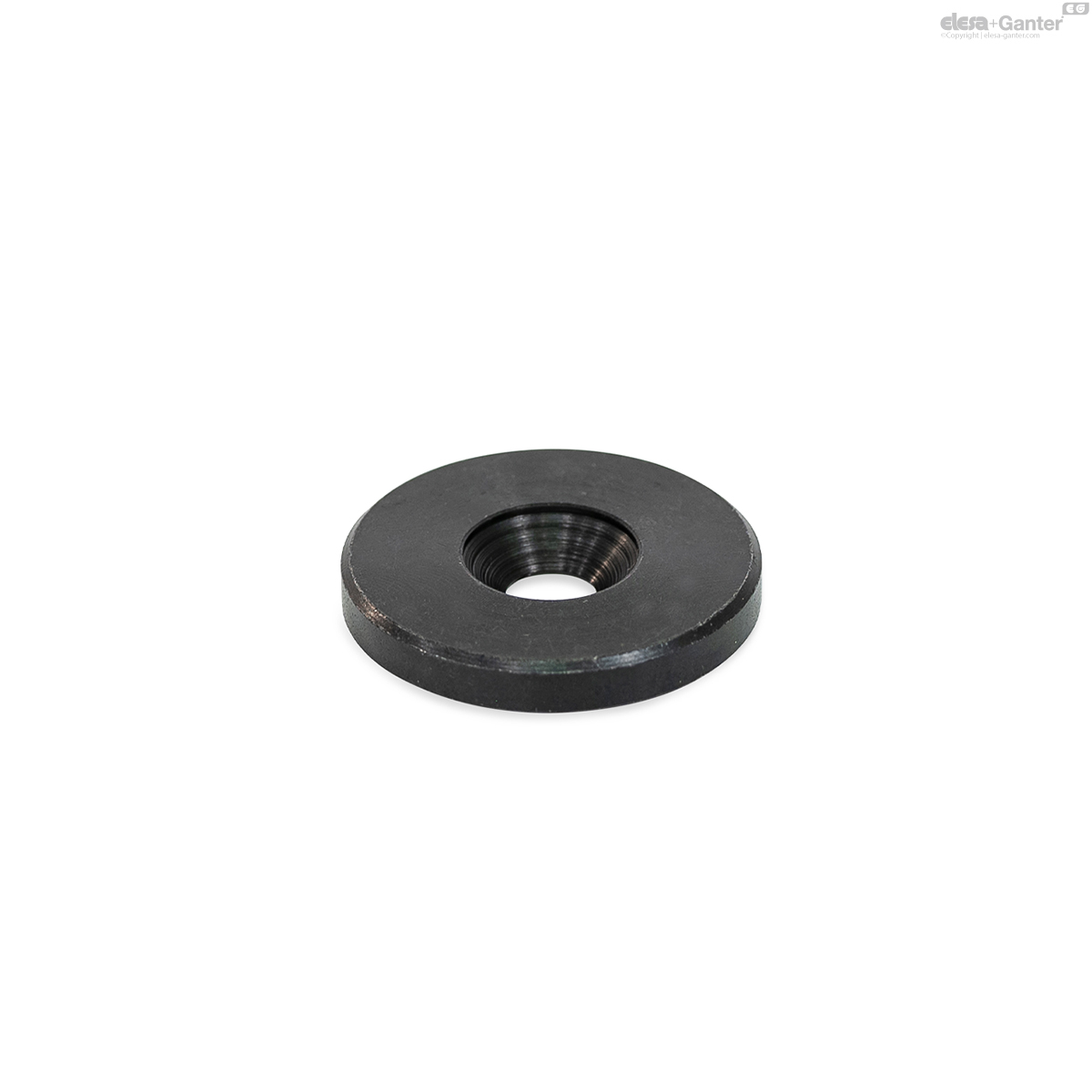

GN 184 Countersunk Washers
Steel
In stock All sizes and variants of GN 184
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 184-28
- d1
- 28
- d2
- 5.3
- d3
- 10.3
- s
- 3.5
- For countersunk screws
DIN 7991
DIN ISO 2009 - M 5
- 15
Steel
- Turned
- Blackened
- Zinc plated, blue passivated ZB

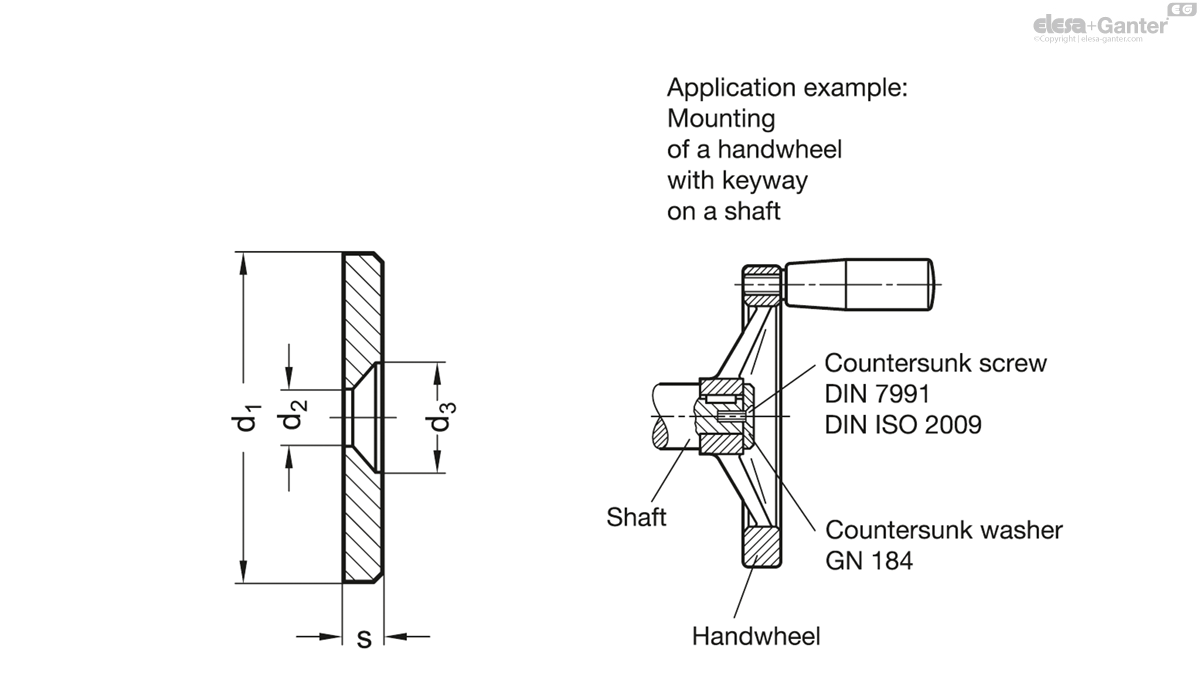

Countersunk washers GN 184 are retained to the face of the shaft end with a countersunk head screw DIN ISO 2009 or DIN 7991 forming a clean-look end cap.
A typical application is the retention of handwheels with hub keyed to the shaft.
