HGFT.21/HT-PR-1

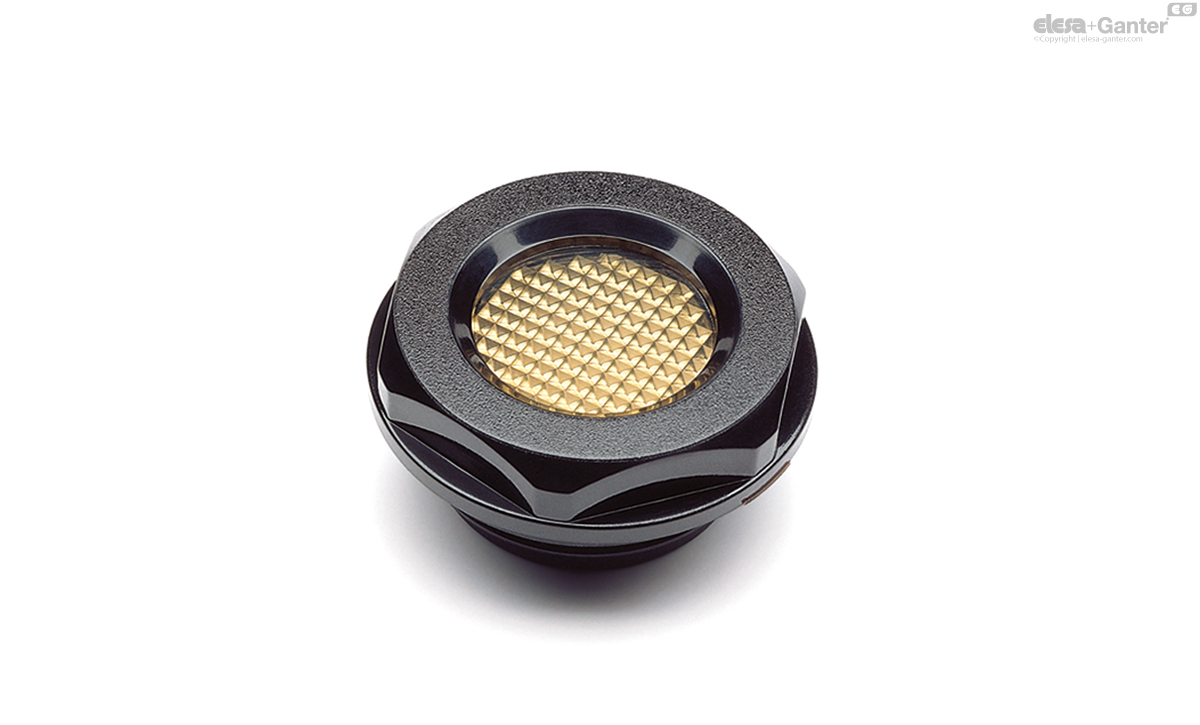

HGFT-HT-PR Oil level sight glasses
with prismatic window, high temperatures, technopolymer up to 140°C
In stock All sizes and variants of HGFT-HT-PR
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 14523
- d1
- G 1
- A
- 11
- B
- 9.5
- D
- 42.5
- d
- 23
- s
- 38
- Tightening torque
[Nm] - 10÷12
- 16
Material
Polyamide based (PA) technopolymer, black colour, glossy finish.
Prismatic window
Transparent sulphonic based technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
FKM type VITON®*.
Maximum continuous working temperature
140°C at 7 bar pressure.
* Registered trademark by DuPont Dow Elastomers.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
