HGFT.13/HT-PR-1/2

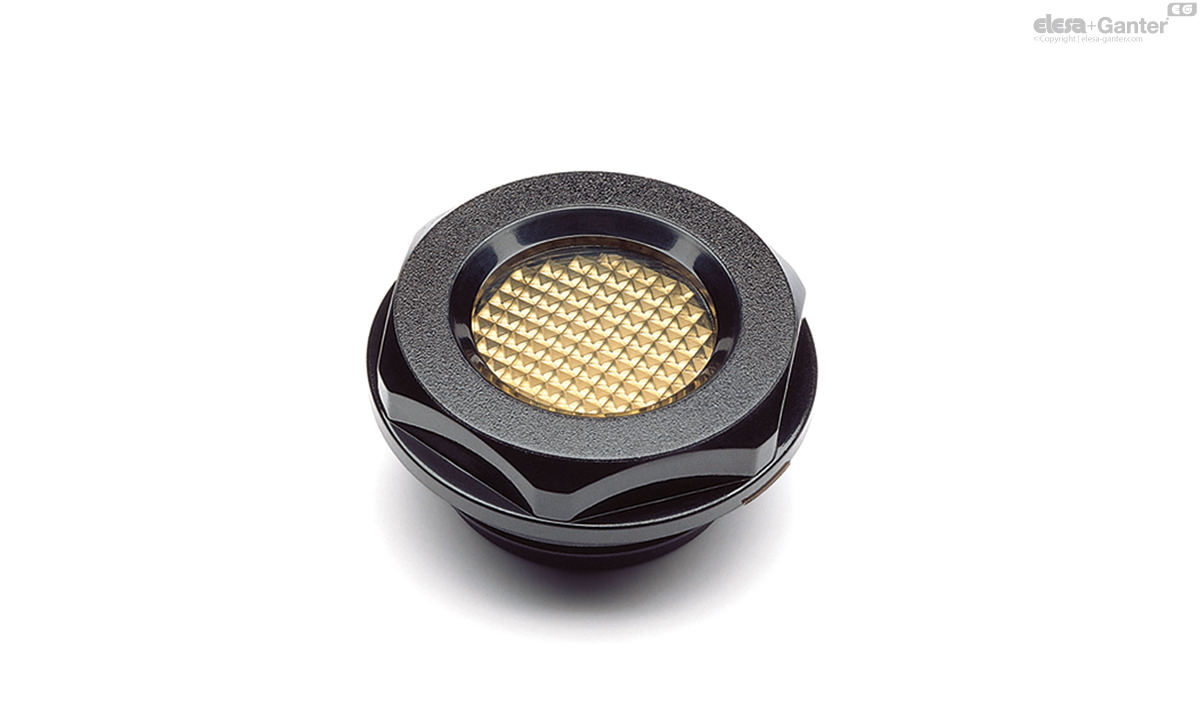

HGFT-HT-PR Oil level sight glasses
with prismatic window, high temperatures, technopolymer up to 140°C
Eta: 1-2 weeks All sizes and variants of HGFT-HT-PR
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 14463
- d1
- G 1/2
- A
- 10
- B
- 8.5
- D
- 28
- d
- 14.5
- s
- 24
- Tightening torque
[Nm] - 6÷8
- 6
Material
Polyamide based (PA) technopolymer, black colour, glossy finish.
Prismatic window
Transparent sulphonic based technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.
Packing ring
FKM type VITON®*.
Maximum continuous working temperature
140°C at 7 bar pressure.
* Registered trademark by DuPont Dow Elastomers.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
