HCFE.12-3/8

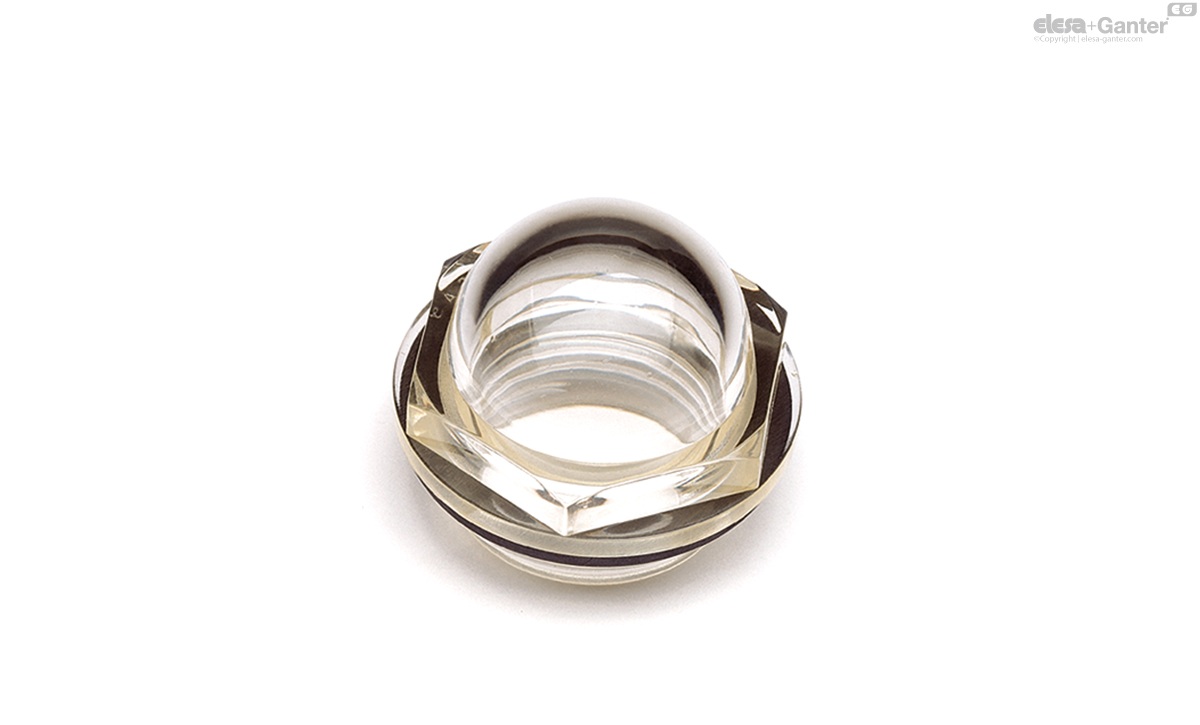

HCFE. Oil level sight glasses
Technopolymer up to 100°C
Eta: 1-2 weeks All sizes and variants of HCFE.
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 10851
- d1
- G 3/8
- A
- 7.5
- B
- 13
- D
- 22.5
- d
- 15
- s
- 19
- Tightening torque
[Nm] - 3÷5
- 4
Material
Transparent polyamide based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
Technical data
The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.
Note
For use with other fluids with special additives, please contact ELESA Sales Department.
Accessories on request
Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
