Technical datasheet

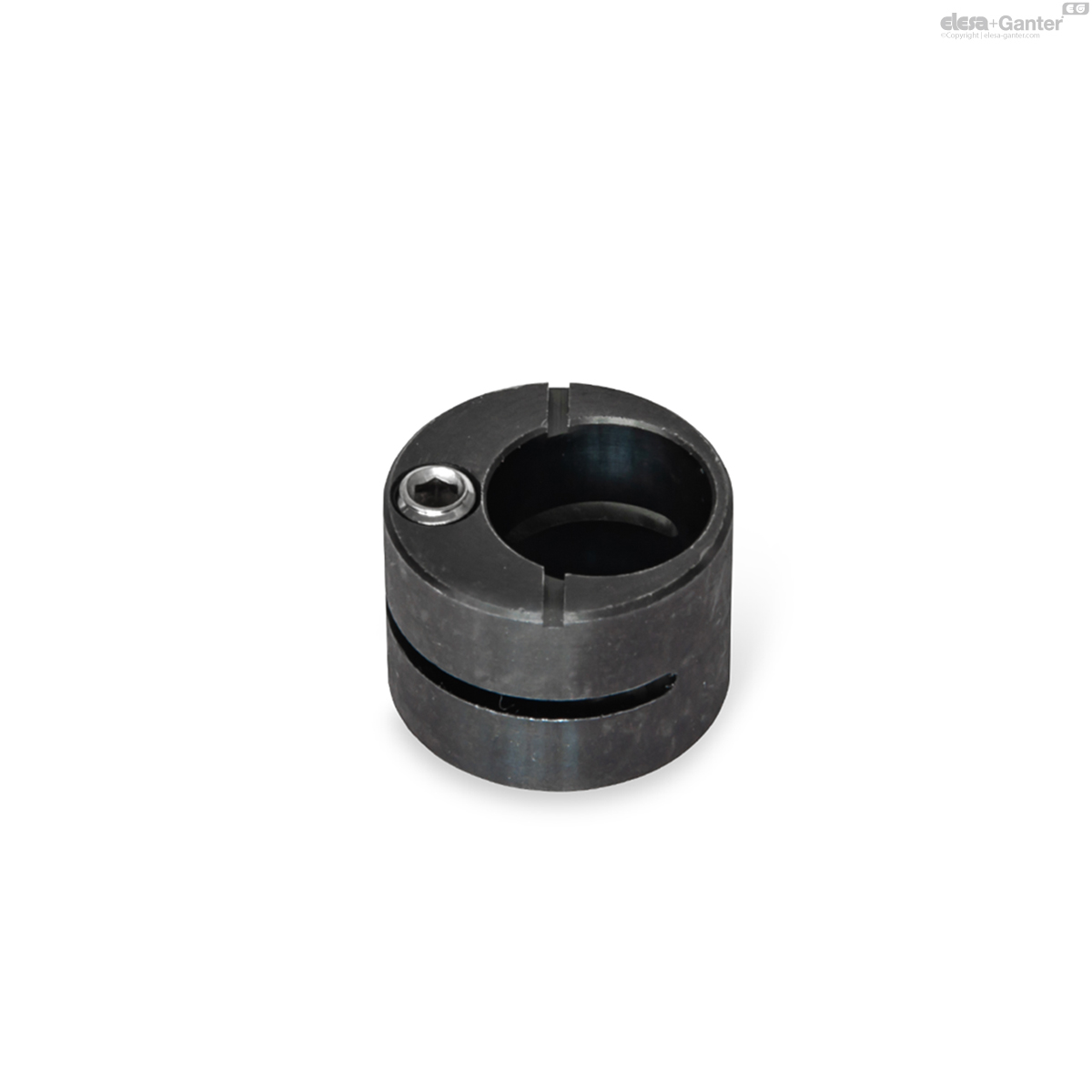

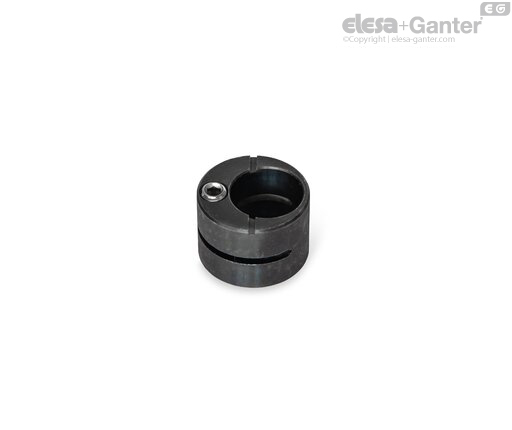

GN 715.2Exzenterbuchsen
Exzenterbuchsen
für Seitendruckstücke GN 714 / GN 715
|
Katalog
|

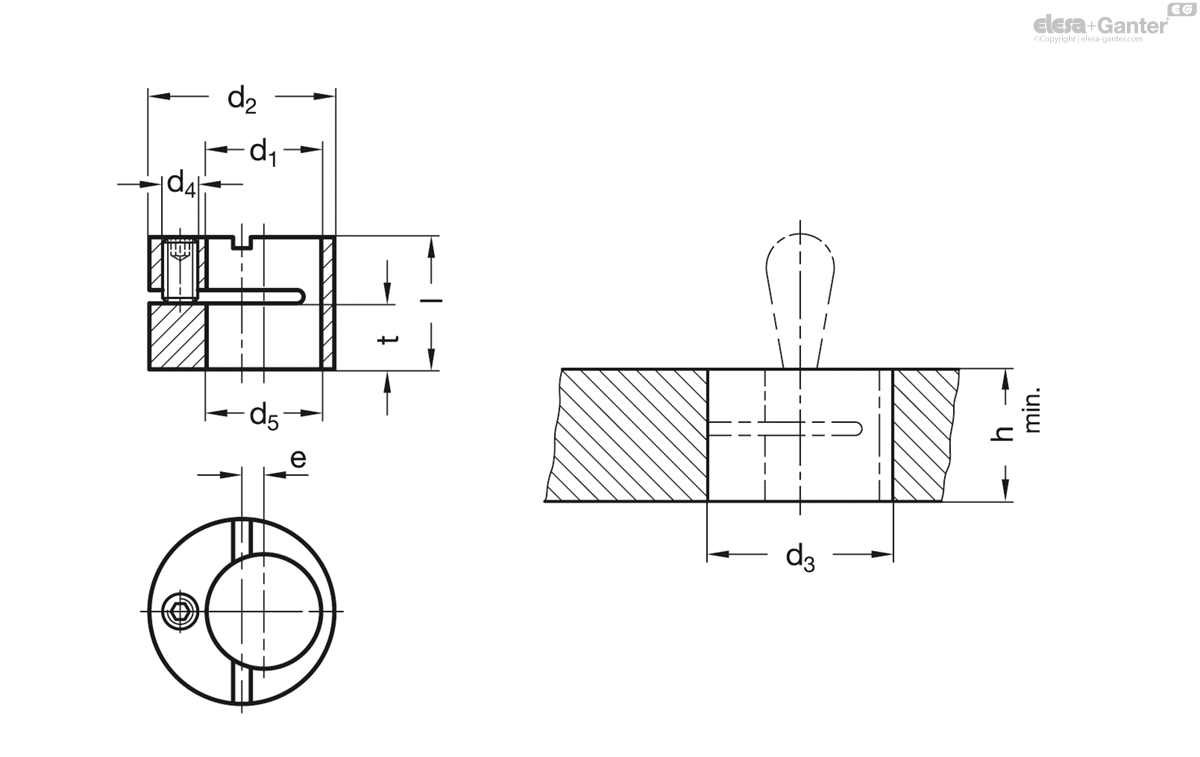

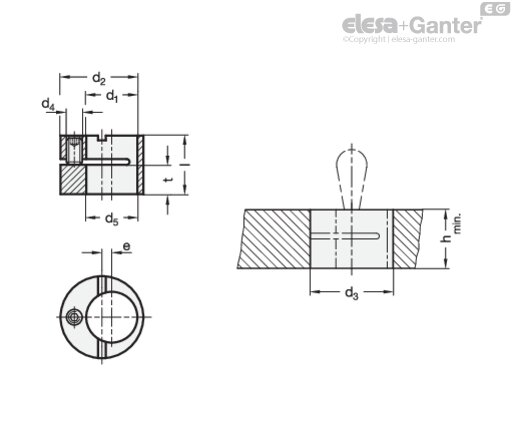

d1
|
d2 h9
|
d3 H7
|
d4
|
d5 +0.1
|
e
|
h min.
|
l -0.2
|
t
|
For side thrust
pin-ø |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 715.2-6
|
6
|
12
|
12
|
M 4
|
6.2
|
2
|
10
|
9.9
|
4.4
|
3
|
5
|
|
GN 715.2-10
|
10
|
16
|
16
|
M 4
|
10.2
|
2
|
12
|
11.9
|
5.4
|
5 6
|
9
|
|
GN 715.2-12
|
12
|
18
|
18
|
M 4
|
12.2
|
2
|
14
|
13.9
|
6.6
|
8
|
13
|
|
GN 715.2-16
|
16
|
25
|
25
|
M 6
|
16.2
|
3
|
18
|
17.9
|
7.9
|
10
|
35
|
Steel
blackened
Eccentric bushes GN 715.2 allows side thrust pins GN 715 / GN 714 to be adjusted. These bushes allow the side thrust pin to be precisely adjused to suit the requirements for clamping of a component.
