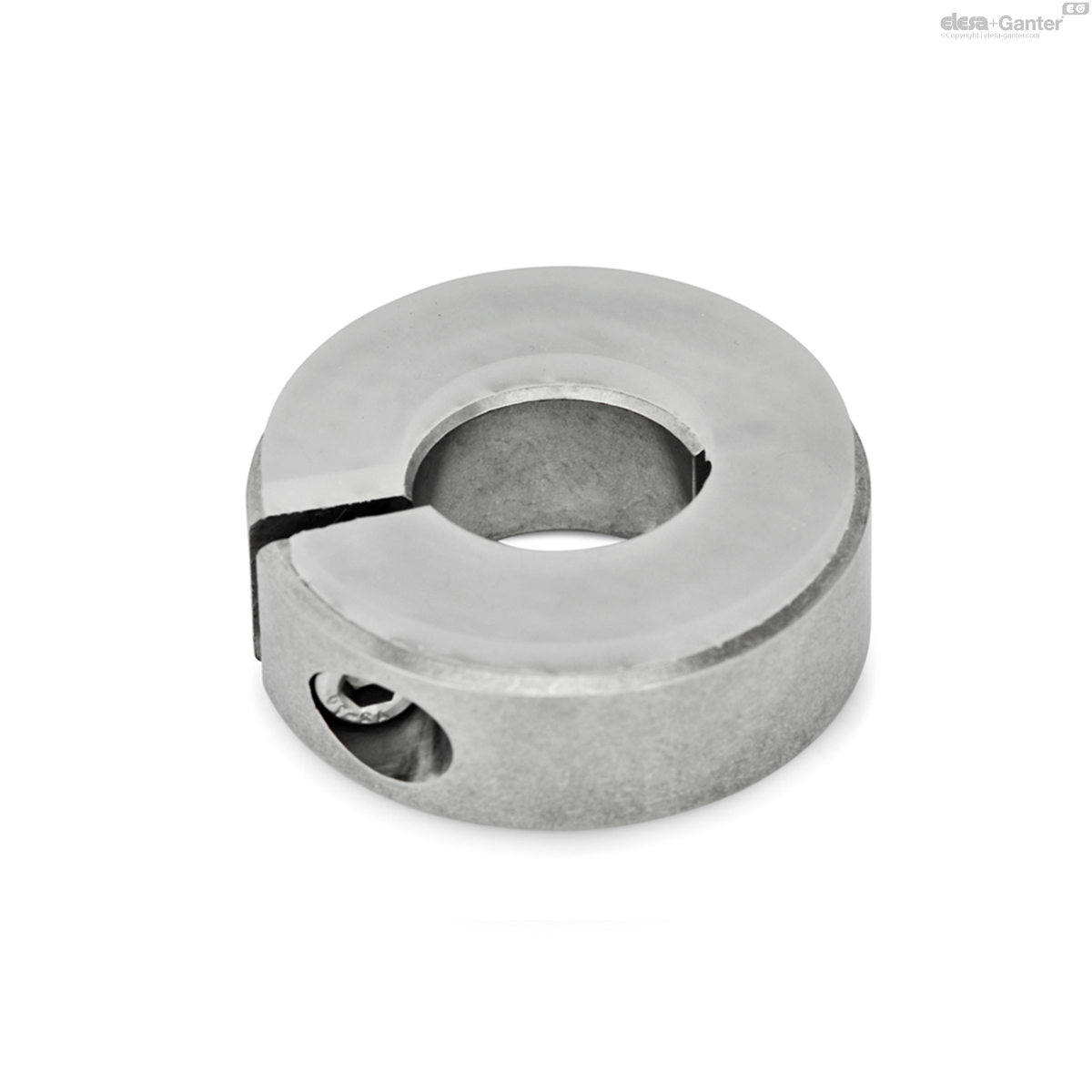

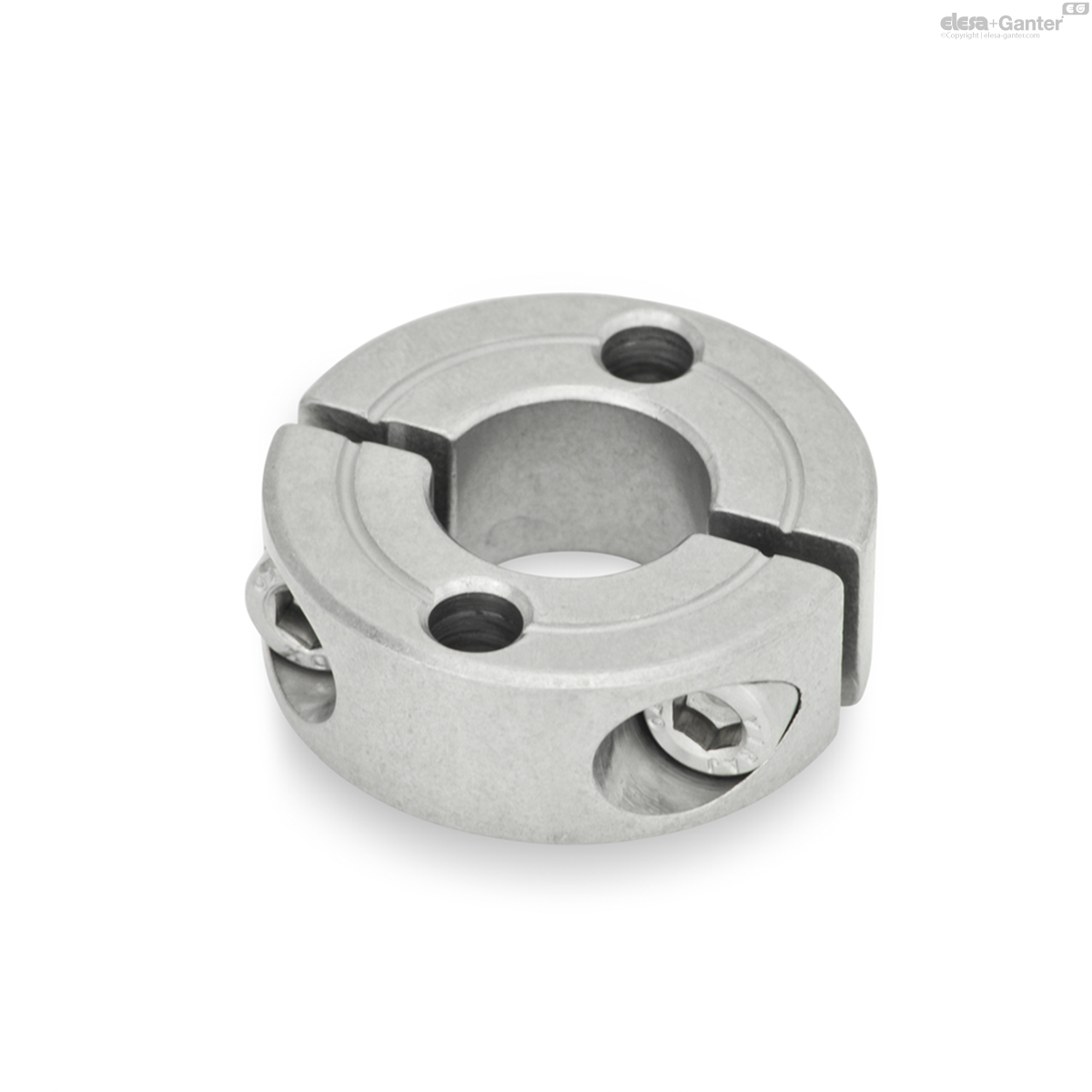

GN 7062.3Geschlitzte Stellringe

Geschlitzte Stellringe

Edelstahl, mit Dämpfungsscheibe

Technical datasheet

GN 7062.3

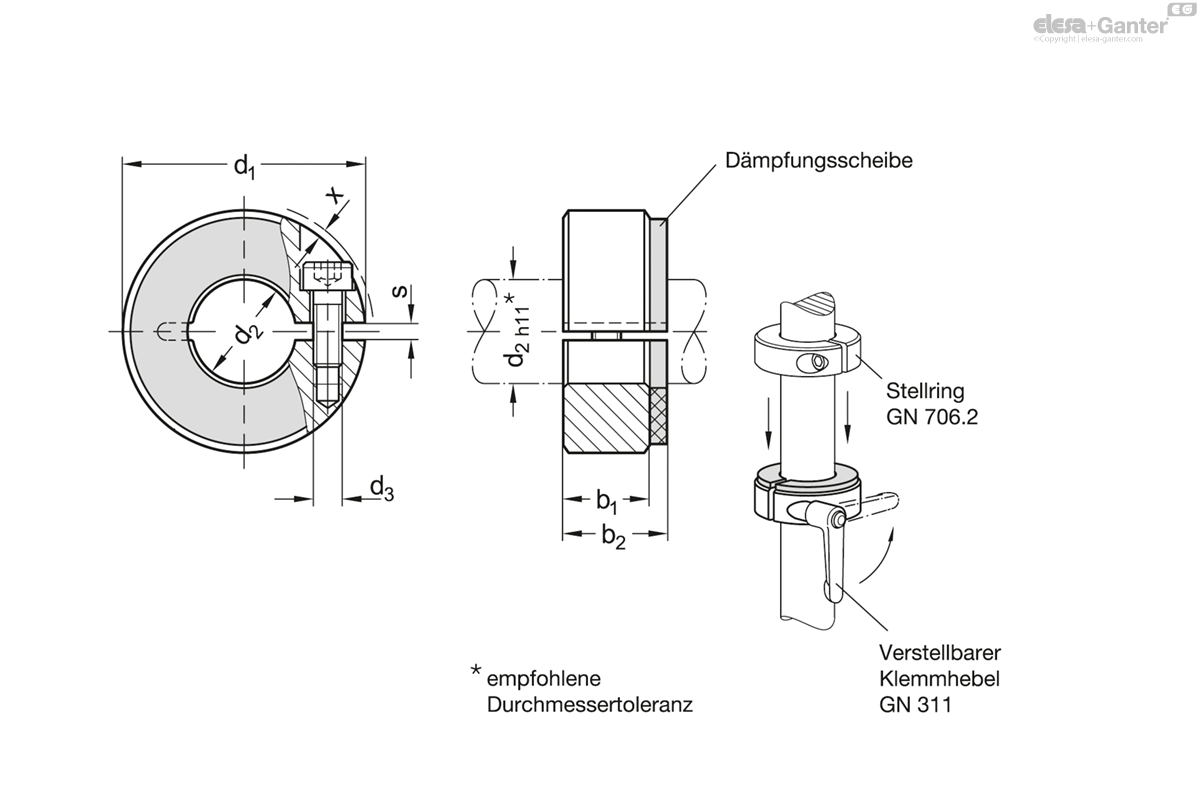

Katalog	d₁	d₂ H10	b₁	b₂	d₃	s	x ≈ Max. protrusion of cap screw	Adjustable hand lever for d₃
GN 7062.3-30-B12-NI	30	B 12	11	13	M 4	2.1	0.7	GN 311-30-M4-12-SW	40
GN 7062.3-32-B14-NI	32	B 14	11	13	M 4	2.1	0.7	GN 311-30-M4-12-SW	46
GN 7062.3-36-B15-NI	36	B 15	13	15	M 5	2.1	1.4	GN 311-30-M5-13-SW	76
GN 7062.3-36-B16-NI	36	B 16	13	15	M 5	2.1	1.4	GN 311-30-M5-13-SW	67
GN 7062.3-42-B18-NI	42	B 18	15	18	M 5	3	0.6	GN 311-30-M5-15-SW	107
GN 7062.3-42-B20-NI	42	B 20	15	18	M 5	3	0.6	GN 311-30-M5-15-SW	98
GN 7062.3-48-B22-NI	48	B 22	15	18	M 5	3	0	GN 311-45-M5-16-SW	136
GN 7062.3-48-B25-NI	48	B 25	15	18	M 5	3	0	GN 311-45-M5-16-SW	124
GN 7062.3-55-B28-NI	55	B 28	15	18	M 6	3	0.5	GN 311-45-M6-18-SW	196
GN 7062.3-55-B30-NI	55	B 30	15	18	M 6	3	0.5	GN 311-45-M6-18-SW	156
GN 7062.3-60-B32-NI	60	B 32	15	18	M 6	4	0.4	GN 311-45-M6-19-SW	203
GN 7062.3-60-B35-NI	60	B 35	15	18	M 6	4	0.4	GN 311-45-M6-19-SW	172
GN 7062.3-65-B40-NI	65	B 40	15	18	M 6	4	0.5	GN 311-45-M6-20-SW	196

Stainless steel AISI 316LHC NI

Sintered

Damping washer

Elastomer (PUR)

70 Shore A

Temperature resistant up to 80 °C

Transparent

Socket cap screw DIN 912

Stainless steel AISI 304

The affixed damping washer of the semi-split shaft collars GN 7062.3 absorbs mild shocks and has a sound-damping effect when the shaft collars come into contact with other components.

They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles.

The thread d₃ for sizes d₁ = 30 to 36 is designed as a through hole; for sizes d₁ = 42 and larger, it is designed as blind hole.
