GN 632.1Gewindestifte

Gewindestifte

mit Kugelzapfen, für Druckstücke GN 631 / GN 631.5

Technical datasheet

GN 632.1

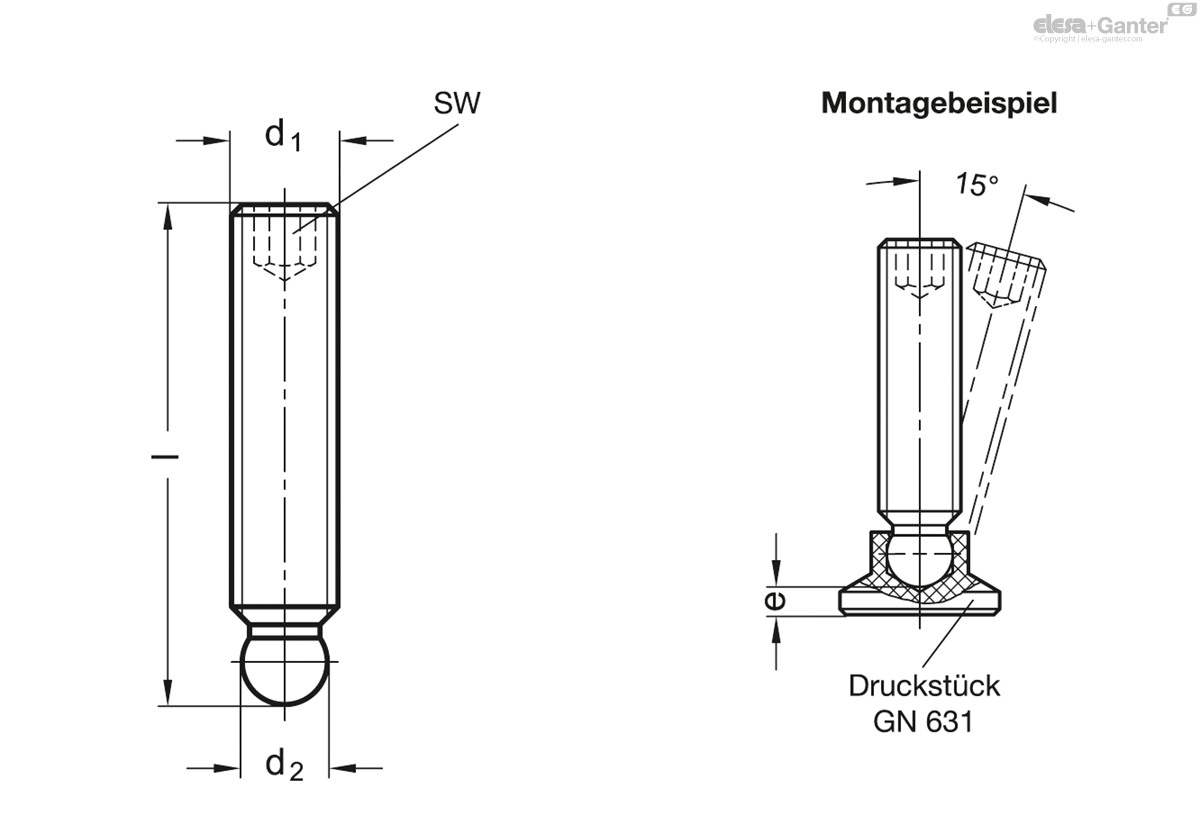

Katalog	d₁	l	d₂ +0,05	sw	Druckstücke GN 631 / GN 631.5 d₁ - e
GN 632.1-M6-30	M 6	30	4.5	3	15 - 3.6 18 - 5.2 21 - 6 25 - 6.5 32 - 7	5
GN 632.1-M6-40	M 6	40	4.5	3	15 - 3.6 18 - 5.2 21 - 6 25 - 6.5 32 - 7	6
GN 632.1-M6-50	M 6	50	4.5	3	15 - 3.6 18 - 5.2 21 - 6 25 - 6.5 32 - 7	5
GN 632.1-M8-25	M 8	25	6.1	4	15 - 2.5 18 - 4.2 21 - 5 25 - 5.5 32 - 6 40 - 8 50 - 10.4	6
GN 632.1-M8-40	M 8	40	6.1	4	15 - 2.5 18 - 4.2 21 - 5 25 - 5.5 32 - 6 40 - 8 50 - 10.4	11
GN 632.1-M8-50	M 8	50	6.1	4	15 - 2.5 18 - 4.2 21 - 5 25 - 5.5 32 - 6 40 - 8 50 - 10.4	14
GN 632.1-M8-63	M 8	63	6.1	4	15 - 2.5 18 - 4.2 21 - 5 25 - 5.5 32 - 6 40 - 8 50 - 10.4	18
GN 632.1-M10-40	M 10	40	7.8	5	18 - 3.8 21 - 4.3 25 - 4.6 32 - 5 40 - 7 50 - 9.3	15
GN 632.1-M10-50	M 10	50	7.8	5	18 - 3.8 21 - 4.3 25 - 4.6 32 - 5 40 - 7 50 - 9.3	20
GN 632.1-M10-63	M 10	63	7.8	5	18 - 3.8 21 - 4.3 25 - 4.6 32 - 5 40 - 7 50 - 9.3	27
GN 632.1-M10-80	M 10	80	7.8	5	18 - 3.8 21 - 4.3 25 - 4.6 32 - 5 40 - 7 50 - 9.3	36
GN 632.1-M12-40	M 12	40	9.4	6	21 - 3.4 25 - 3.6 32 - 4.2 40 - 6.2 50 - 8.7	20
GN 632.1-M12-63	M 12	63	9.4	6	21 - 3.4 25 - 3.6 32 - 4.2 40 - 6.2 50 - 8.7	41
GN 632.1-M12-80	M 12	80	9.4	6	21 - 3.4 25 - 3.6 32 - 4.2 40 - 6.2 50 - 8.7	53
GN 632.1-M12-100	M 12	100	9.4	6	21 - 3.4 25 - 3.6 32 - 4.2 40 - 6.2 50 - 8.7	62

Steel

Tensile strength class 5.8

blackened

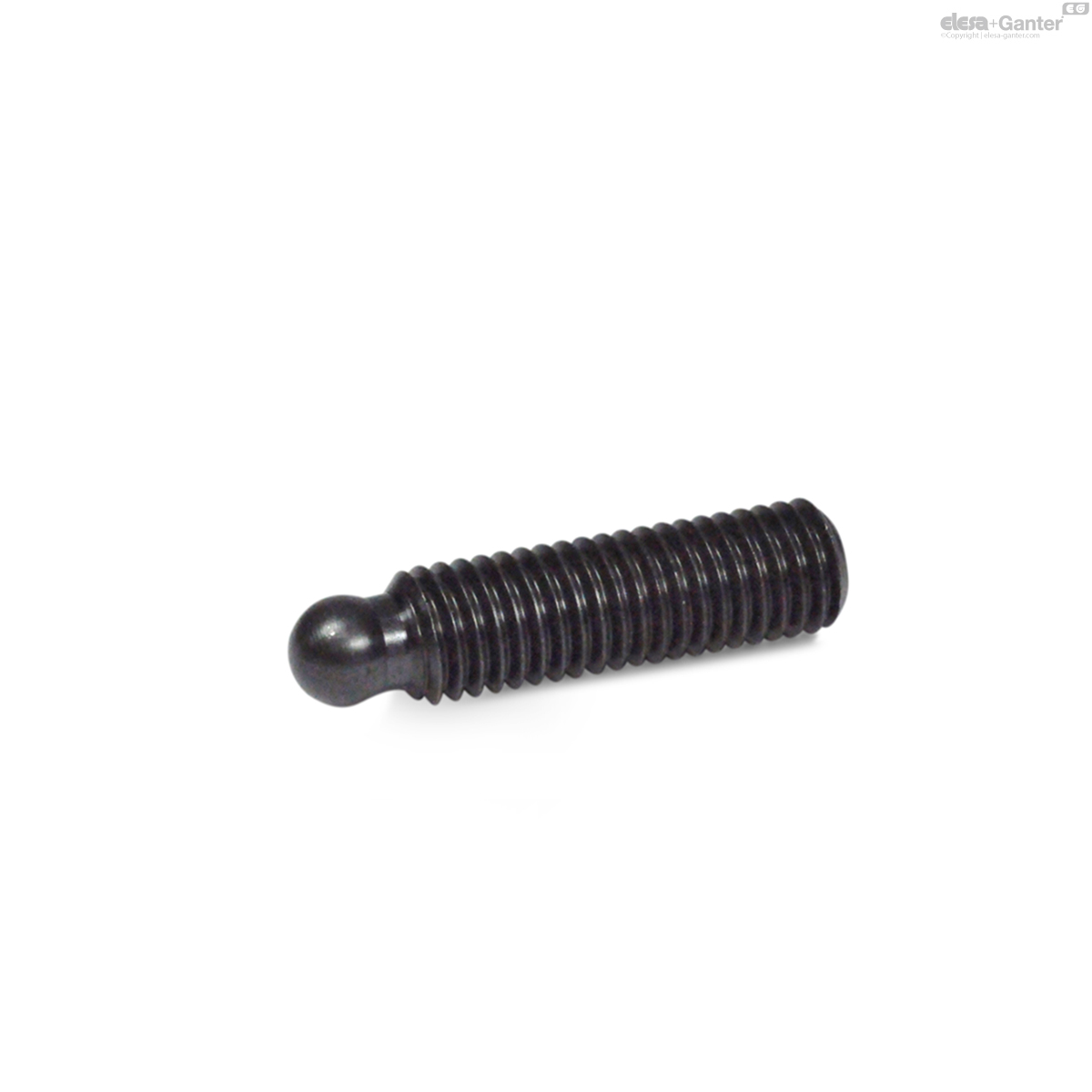

Grub screws GN 632.1 with ball point are as a rule used with thrust pads GN 631 / GN 631.5 .

The ball-Ø d₂ is smaller than the thread core-Ø, which allows fitting over the ball end.

The combination of grub screws GN 632.1 and thrust pads GN 631 / GN 631.5 with gripping elements easily makes clamping screws of many different types.
