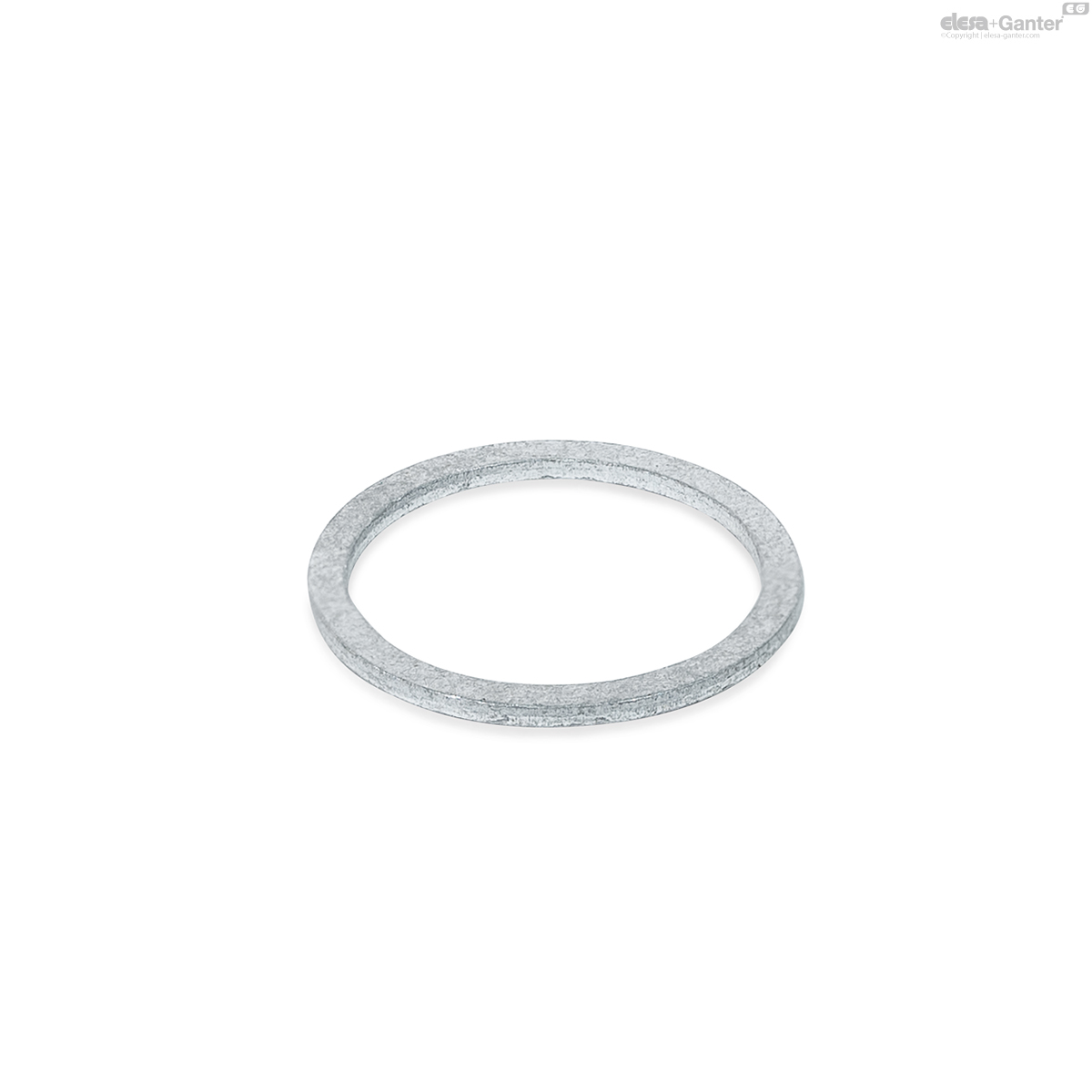

DIN 7603-A4Dichtringe
Edelstahl
für Verschlussschrauben DIN 908 / DIN 910, Kupfer / Aluminium / Edelstahl
DIN 7603-A4
|
Katalog
|

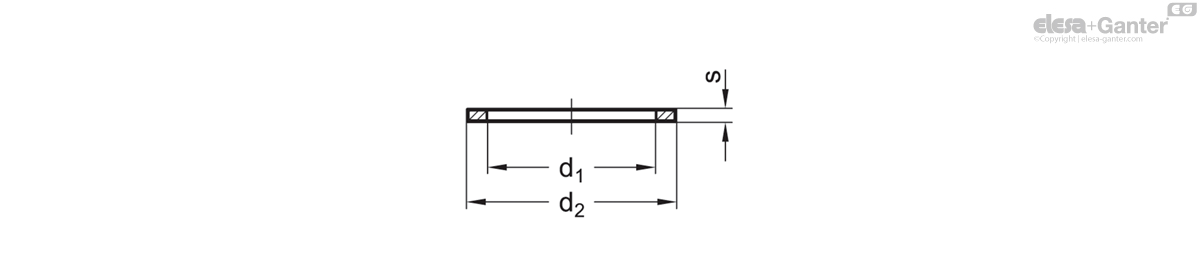

d1
Nennmaß |
d1 Istmaß +0.3
|
d2
Nennmaß |
d2
Istmaß -0.2 |
s ±0.2
|
Passend
für DIN 908 / DIN 910 |
|
|
|---|---|---|---|---|---|---|---|---|
|
8
|
8.2
|
11.5
|
11.4
|
1
|
M 8 x 1
|
1
| ||
|
10
|
10.2
|
13.5
|
13.4
|
1
|
M 10 x 1 G 1/8
|
1
| ||
|
12
|
12.2
|
16
|
15.9
|
1.5
|
M 12 x 1.5
|
1
| ||
|
14
|
14.2
|
18
|
17.9
|
1.5
|
M 14 x 1.5 G 1/4
|
1
| ||
|
16
|
16.2
|
20
|
19.9
|
1.5
|
M 16 x 1.5
|
2
| ||
|
17
|
17.2
|
21
|
20.9
|
1.5
|
G 3/8
|
2
| ||
|
18
|
18.2
|
22
|
21.9
|
1.5
|
M 18 x 1.5
|
2
| ||
|
20
|
20.2
|
24
|
23.9
|
1.5
|
M 20 x 1.5
|
2
| ||
|
21
|
21.2
|
26
|
25.9
|
1.5
|
G 1/2
|
2
| ||
|
22
|
22.2
|
27
|
26.9
|
1.5
|
M 22 x 1.5
|
2
| ||
|
24
|
24.3
|
29
|
28.9
|
2
|
M 24 x 1.5
|
3
| ||
|
26
|
26.3
|
31
|
30.9
|
2
|
M 26 x 1.5
|
3
| ||
|
27
|
27.3
|
32
|
31.9
|
2
|
M 27 x 2 G 3/4
|
3
| ||
|
30
|
30.3
|
36
|
35.9
|
2
|
M 30 x 1.5
|
4
| ||
|
33
|
33.3
|
39
|
38.9
|
2
|
M 33 x 2 G 1
|
5
| ||
|
42
|
42.3
|
49
|
48.9
|
2
|
M 42 x 2 G 1 1/4
|
7
| ||
|
48
|
48.3
|
55
|
54.9
|
2
|
M 48 x 2 G 1 1/2
|
8
|
Form
- A: Flachdichtring
Kupfer CU
Aluminium AL
Edelstahl 1.4571 A4
- andere Größen
- andere Werkstoffe
- andere Formen
