343.7-40-M10-G

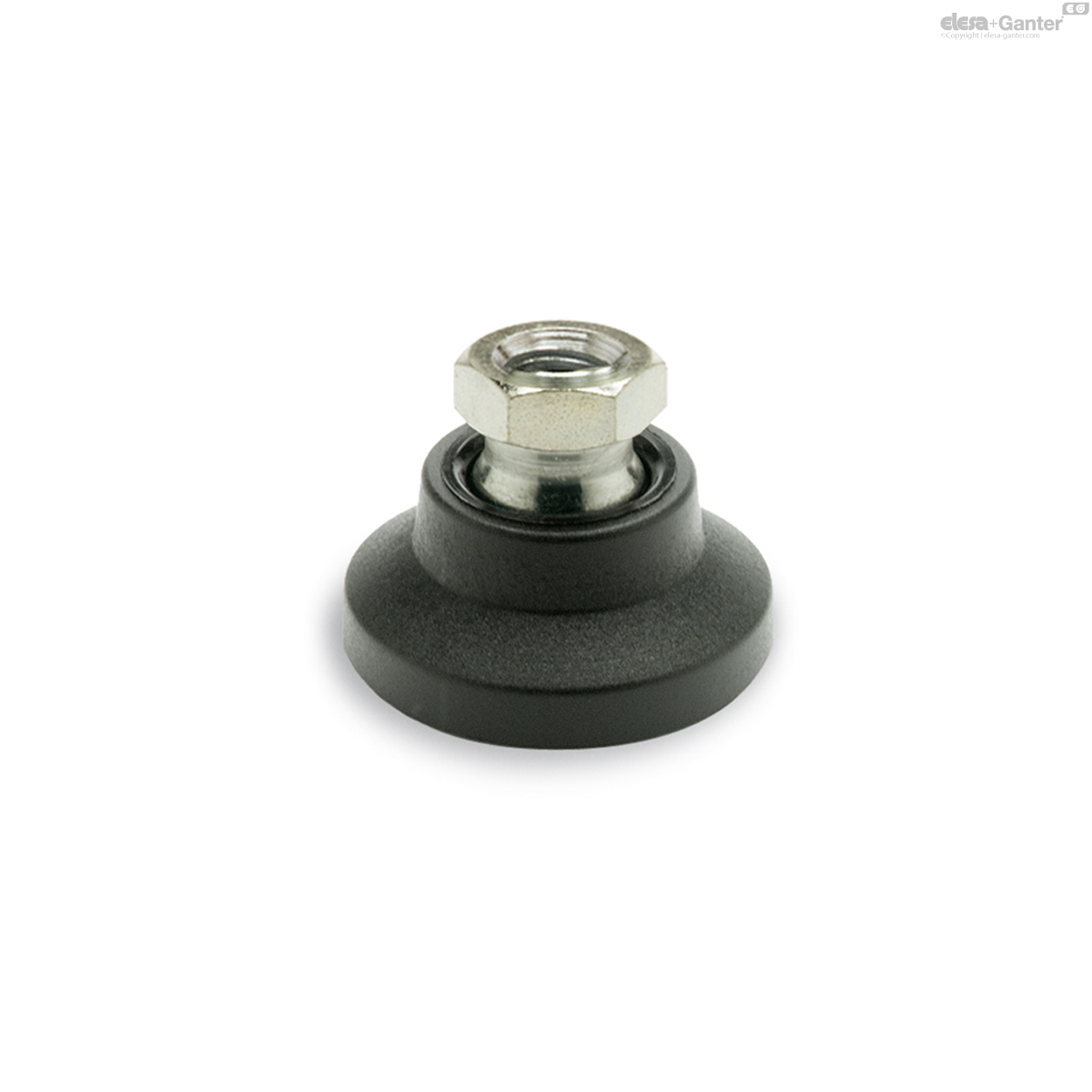

GN 343.7 Gelenkfüße
Lt: 1-2 Wochen Alle Größen und Varianten von GN 343.7
🔒 Preise, aktueller Lagerbestand & CAD-Downloads
Melden Sie sich an, um Ihre Preise und Bestände zu sehen, CAD-Dateien herunterzuladen und direkt online zu bestellen.
Anmelden Konto anfragen
Technisches Datenblatt
Technische Daten
- Katalog
- GN 343.7-40-M10-G
- d1
- 40
- d2
- M 10
- l2
- 25.5
- l3
- 6
- sw
- 15
- t min.
- 10.5
- Statische Last
in kN - 10
- 35
Types
- Type A: without rubber underlay
- Type G: with rubber underlay
Foot: Plastic (Polyamide PA)
- glass, fibre reinforced
- black, matt
- temperature resistant up to 100 °C
Female thread
Stainless Steel AISI 303
Rubber underlay (NBR)
70 Shore A, black
Levelling feet GN 343.7 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.
Exceeding the static values specified in the table could lead to failure of the plastic component.
The values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.
Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
Levelling feet GN 343.7 are supplied assembled, but are removable.
- ESD version (conductive plastic cap to avoid electrostatic charging)
